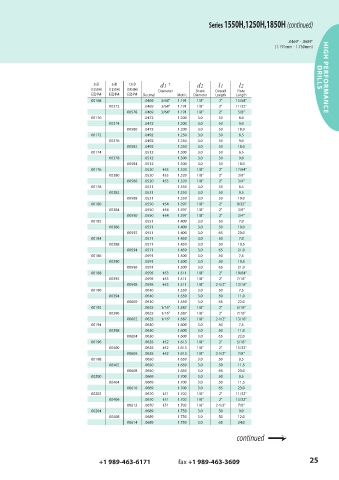

Page 25 - GARR_TOOL(CATALOG_INT)

Series 1550H,1250H,1850H (continued)

.0469" - .0689"
(1.191mm - 1.750mm)

3xD 5xD 12xD d1 † d2 l1 l2 DRILLS HIGH PERFORMANCE
(1550H) (1250H) (1850H) Diameter Shank Overall Flute
EDP# EDP# EDP# Decimal Metric Diameter Length Length
00168 .0469 3/64" 1.191 1/8" 2" 15/64"
00372 .0469 3/64" 1.191 1/8" 2" 11/32"
00578 .0469 3/64" 1.191 1/8" 2" 5/8"
00170 .0472 1.200 3.0 50 6.0
00374 .0472 1.200 3.0 50 9.0
00580 .0472 1.200 3.0 50 18.0
00172 .0492 1.250 3.0 50 6.5
00376 .0492 1.250 3.0 50 9.0
00582 .0492 1.250 3.0 50 18.0
00174 .0512 1.300 3.0 50 6.5
00378 .0512 1.300 3.0 50 9.0
00584 .0512 1.300 3.0 50 18.0
00176 .0520 #55 1.320 1/8" 2" 17/64"
00380 .0520 #55 1.320 1/8" 2" 3/8"
00586 .0520 #55 1.320 1/8" 2" 3/4"
00178 .0531 1.350 3.0 50 6.5
00382 .0531 1.350 3.0 50 9.5
00588 .0531 1.350 3.0 50 19.0
00180 .0550 #54 1.397 1/8" 2" 9/32"
00384 .0550 #54 1.397 1/8" 2" 3/8"
00590 .0550 #54 1.397 1/8" 2" 3/4"
00182 .0551 1.400 3.0 50 7.0
00386 .0551 1.400 3.0 50 10.0
00592 .0551 1.400 3.0 65 20.0
00184 .0571 1.450 3.0 50 7.0
00388 .0571 1.450 3.0 50 10.5
00594 .0571 1.450 3.0 65 21.0
00186 .0591 1.500 3.0 50 7.5
00390 .0591 1.500 3.0 50 10.5
00596 .0591 1.500 3.0 65 21.0
00188 .0595 #53 1.511 1/8" 2" 19/64"
00392 .0595 #53 1.511 1/8" 2" 7/16"
00598 .0595 #53 1.511 1/8" 2-1/2" 13/16"
00190 .0610 1.550 3.0 50 7.5
00394 .0610 1.550 3.0 50 11.0
00600 .0610 1.550 3.0 65 22.0
00192 .0625 1/16" 1.587 1/8" 2" 5/16"
00396 .0625 1/16" 1.587 1/8" 2" 7/16"
00602 .0625 1/16" 1.587 1/8" 2-1/2" 13/16"
00194 .0630 1.600 3.0 50 7.5
00398 .0630 1.600 3.0 50 11.0
00604 .0630 1.600 3.0 65 22.0
00196 .0635 #52 1.613 1/8" 2" 5/16"
00400 .0635 #52 1.613 1/8" 2" 15/32"
00606 .0635 #52 1.613 1/8" 2-1/2" 7/8"
00198 .0650 1.650 3.0 50 8.5
00402 .0650 1.650 3.0 50 11.5
00608 .0650 1.650 3.0 65 23.0
00200 .0669 1.700 3.0 50 8.5
00404 .0669 1.700 3.0 50 11.5
00610 .0669 1.700 3.0 65 23.0
00202 .0670 #51 1.702 1/8" 2" 11/32"
00406 .0670 #51 1.702 1/8" 2" 15/32"
00612 .0670 #51 1.702 1/8" 2-1/2" 7/8"
00204 .0689 1.750 3.0 50 9.0
00408 .0689 1.750 3.0 50 12.0
00614 .0689 1.750 3.0 65 24.0

continued ?
