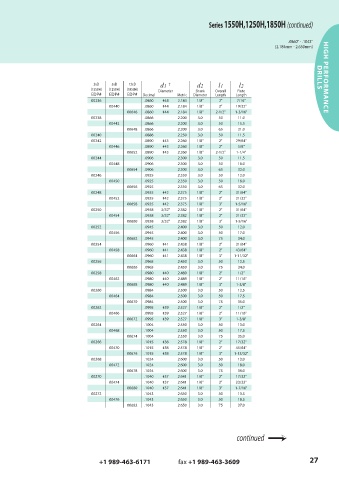

Page 27 - GARR_TOOL(CATALOG_INT)

Series 1550H,1250H,1850H (continued)

.0860" - .1043"
(2.184mm - 2.650mm)

3xD 5xD 12xD d1 † d2 l1 l2 DRILLS HIGH PERFORMANCE
(1550H) (1250H) (1850H) Diameter Shank Overall Flute
EDP# EDP# EDP# Decimal Metric Diameter Length Length
00236 .0860 #44 2.184 1/8" 2" 7/16"
00440 .0860 #44 2.184 1/8" 2" 19/32"
00646 .0860 #44 2.184 1/8" 2-1/2" 1-3/16"
00238 .0866 2.200 3.0 50 11.0
00442 .0866 2.200 3.0 50 15.5
00648 .0866 2.200 3.0 65 31.0
00240 .0886 2.250 3.0 50 11.5
00242 .0890 #43 2.260 1/8" 2" 29/64"
00446 .0890 #43 2.260 1/8" 2" 5/8"
00652 .0890 #43 2.260 1/8" 2-1/2" 1-1/4"
00244 .0906 2.300 3.0 50 11.5
00448 .0906 2.300 3.0 50 16.0
00654 .0906 2.300 3.0 65 32.0
00246 .0925 2.350 3.0 50 12.0
00450 .0925 2.350 3.0 50 16.0
00656 .0925 2.350 3.0 65 32.0
00248 .0935 #42 2.375 1/8" 2" 31/64"
00452 .0935 #42 2.375 1/8" 2" 21/32"
00658 .0935 #42 2.375 1/8" 3" 1-5/16"
00250 .0938 3/32" 2.382 1/8" 2" 31/64"
00454 .0938 3/32" 2.382 1/8" 2" 21/32"
00660 .0938 3/32" 2.382 1/8" 3" 1-5/16"
00252 .0945 2.400 3.0 50 12.0
00456 .0945 2.400 3.0 50 17.0
00662 .0945 2.400 3.0 75 34.0
00254 .0960 #41 2.438 1/8" 2" 31/64"
00458 .0960 #41 2.438 1/8" 2" 43/64"
00664 .0960 #41 2.438 1/8" 3" 1-11/32"
00256 .0965 2.450 3.0 50 12.5
00666 .0965 2.450 3.0 75 34.0
00258 .0980 #40 2.489 1/8" 2" 1/2"
00462 .0980 #40 2.489 1/8" 2" 11/16"
00668 .0980 #40 2.489 1/8" 3" 1-3/8"
00260 .0984 2.500 3.0 50 12.5
00464 .0984 2.500 3.0 50 17.5
00670 .0984 2.500 3.0 75 35.0
00262 .0995 #39 2.527 1/8" 2" 1/2"
00466 .0995 #39 2.527 1/8" 2" 11/16"
00672 .0995 #39 2.527 1/8" 3" 1-3/8"
00264 .1004 2.550 3.0 50 13.0
00468 .1004 2.550 3.0 50 17.5
00674 .1004 2.550 3.0 75 35.0
00266 .1015 #38 2.578 1/8" 2" 17/32"
00470 .1015 #38 2.578 1/8" 2" 45/64"
00676 .1015 #38 2.578 1/8" 3" 1-13/32"
00268 .1024 2.600 3.0 50 13.0
00472 .1024 2.600 3.0 50 18.0
00678 .1024 2.600 3.0 75 36.0
00270 .1040 #37 2.641 1/8" 2" 17/32"
00474 .1040 #37 2.641 1/8" 2" 23/32"
00680 .1040 #37 2.641 1/8" 3" 1-7/16"
00272 .1043 2.650 3.0 50 13.5
00476 .1043 2.650 3.0 50 18.5
00682 .1043 2.650 3.0 75 37.0

continued ?
