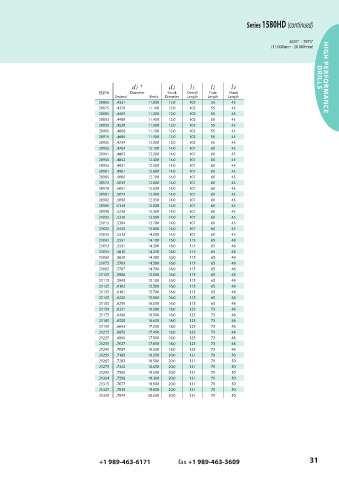

Page 31 - GARR_TOOL(CATALOG_INT)

Series 1580HD (continued)

.4331" - .7874"
(11.000mm - 20.000mm)

d1 † d2 l1 l2 l4 DRILLS HIGH PERFORMANCE
EDP# Diameter Shank Overall Flute Shank
Decimal Metric Diameter Length Length Length
20865 .4331 11.000 12.0 102 55 45
20875 .4370 11.100 12.0 102 55 45
20885 .4409 11.200 12.0 102 55 45
20892 .4488 11.400 12.0 102 55 45
20895 .4528 11.500 12.0 102 55 45
20905 .4606 11.700 12.0 102 55 45
20915 .4685 11.900 12.0 102 55 45
20925 .4724 12.000 12.0 102 55 45
20935 .4764 12.100 14.0 107 60 45
20941 .4803 12.200 14.0 107 60 45
20945 .4842 12.300 14.0 107 60 45
20955 .4921 12.500 14.0 107 60 45
20961 .4961 12.600 14.0 107 60 45
20965 .5000 12.700 14.0 107 60 45
20975 .5039 12.800 14.0 107 60 45
20978 .5051 12.830 14.0 107 60 45
20981 .5079 12.900 14.0 107 60 45
20982 .5098 12.950 14.0 107 60 45
20985 .5118 13.000 14.0 107 60 45
20998 .5236 13.300 14.0 107 60 45
21005 .5315 13.500 14.0 107 60 45
21015 .5394 13.700 14.0 107 60 45
21025 .5433 13.800 14.0 107 60 45
21035 .5512 14.000 14.0 107 60 45
21045 .5551 14.100 16.0 115 65 48
21053 .5591 14.200 16.0 115 65 48
21055 .5610 14.250 16.0 115 65 48
21065 .5630 14.300 16.0 115 65 48
21075 .5709 14.500 16.0 115 65 48
21085 .5787 14.700 16.0 115 65 48
21105 .5906 15.000 16.0 115 65 48
21115 .5945 15.100 16.0 115 65 48
21125 .6102 15.500 16.0 115 65 48
21135 .6181 15.700 16.0 115 65 48
21145 .6220 15.800 16.0 115 65 48
21155 .6299 16.000 16.0 115 65 48
21159 .6331 16.080 18.0 123 73 48
21175 .6496 16.500 18.0 123 73 48
21185 .6555 16.650 18.0 123 73 48
21195 .6693 17.000 18.0 123 73 48
21215 .6870 17.450 18.0 123 73 48
21225 .6890 17.500 18.0 123 73 48
21235 .7027 17.850 18.0 123 73 48
21245 .7087 18.000 18.0 123 73 48
21255 .7185 18.250 20.0 131 79 50
21265 .7283 18.500 20.0 131 79 50
21275 .7342 18.650 20.0 131 79 50
21295 .7500 19.050 20.0 131 79 50
21304 .7598 19.300 20.0 131 79 50
21315 .7677 19.500 20.0 131 79 50
21325 .7815 19.850 20.0 131 79 50
21335 .7874 20.000 20.0 131 79 50

+1 989-463-6171 fax +1 989-463-3609 31
