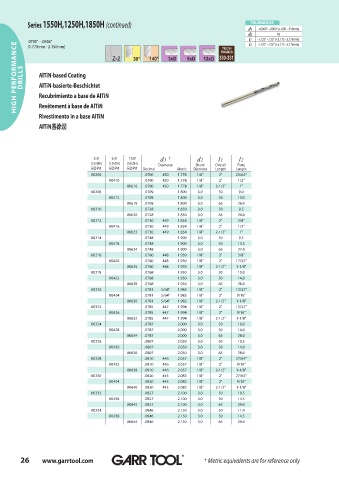

Series 1550H,1250H,1850H (continued) TOLERANCES
d1 +.0000" –.0004" (+.000 –.010mm)
d2 h6
.0700" - .0846" 3xD 5xD 12xD 330-331 l1 +.125" –.125" (+3.175 –3.175mm)
HIGH PERFORMANCE DRILLS AlTiN-based Coating
+.125" –.125" (+3.175 –3.175mm)
l2
(1.778mm - 2.150mm)

AlTiN-basierte-Beschichtet
Recubrimiento a base de AlTiN
Revêtement à base de AlTiN
Rivestimento in a base AlTiN

涂层
基
AlTiN基涂层

3xD 5xD 12xD d1 † d2 l1 l2
(1550H) (1250H) (1850H) Diameter Shank Overall Flute
EDP# EDP# EDP# Decimal Metric Diameter Length Length
00206 .0700 #50 1.778 1/8" 2" 23/64"
00410 .0700 #50 1.778 1/8" 2" 1/2"
00616 .0700 #50 1.778 1/8" 2-1/2" 1"
00208 .0709 1.800 3.0 50 9.0
00412 .0709 1.800 3.0 50 13.0
00618 .0709 1.800 3.0 65 26.0
00210 .0728 1.850 3.0 50 9.5
00620 .0728 1.850 3.0 65 26.0
00212 .0730 #49 1.854 1/8" 2" 3/8"
00416 .0730 #49 1.854 1/8" 2" 1/2"
00622 .0730 #49 1.854 1/8" 2-1/2" 1"
00214 .0748 1.900 3.0 50 9.5
00418 .0748 1.900 3.0 50 13.5
00624 .0748 1.900 3.0 65 27.0
00216 .0760 #48 1.930 1/8" 2" 3/8"
00420 .0760 #48 1.930 1/8" 2" 17/32"
00626 .0760 #48 1.930 1/8" 2-1/2" 1-1/8"
00218 .0768 1.950 3.0 50 10.0
00422 .0768 1.950 3.0 50 14.0
00628 .0768 1.950 3.0 65 28.0
00220 .0781 5/64" 1.983 1/8" 2" 13/32"
00424 .0781 5/64" 1.983 1/8" 2" 9/16"
00630 .0781 5/64" 1.983 1/8" 2-1/2" 1-1/8"
00222 .0785 #47 1.994 1/8" 2" 13/32"
00426 .0785 #47 1.994 1/8" 2" 9/16"
00632 .0785 #47 1.994 1/8" 2-1/2" 1-1/8"
00224 .0787 2.000 3.0 50 10.0
00428 .0787 2.000 3.0 50 14.0
00634 .0787 2.000 3.0 65 28.0
00226 .0807 2.050 3.0 50 10.5
00430 .0807 2.050 3.0 50 14.0
00636 .0807 2.050 3.0 65 28.0
00228 .0810 #46 2.057 1/8" 2" 27/64"
00432 .0810 #46 2.057 1/8" 2" 9/16"
00638 .0810 #46 2.057 1/8" 2-1/2" 1-1/8"
00230 .0820 #45 2.083 1/8" 2" 27/64"
00434 .0820 #45 2.083 1/8" 2" 9/16"
00640 .0820 #45 2.083 1/8" 2-1/2" 1-1/8"
00232 .0827 2.100 3.0 50 10.5
00436 .0827 2.100 3.0 50 14.5
00642 .0827 2.100 3.0 65 29.0
00234 .0846 2.150 3.0 50 11.0
00438 .0846 2.150 3.0 50 14.5
00644 .0846 2.150 3.0 65 29.0

26 www.garrtool.com ® ® ® † Metric equivalents are for reference only
