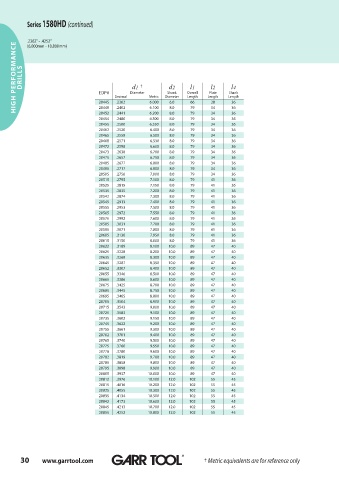

Series 1580HD (continued)

.2362" - .4252"
HIGH PERFORMANCE DRILLS EDP# Decimal Diameter Metric Diameter Overall Length Length
(6.000mm - 10.800mm)

d1
†
l1
l4
l2
d2
Shank
Shank
Flute
Length
20445
6.100
79
8.0
20448
36
34
.2402
8.0
34
79
20452
36
6.200
.2441
6.300
.2480
8.0
34
20454 .2362 6.000 6.0 66 28 36
36
79
20455 .2500 6.350 8.0 79 34 36
20462 .2520 6.400 8.0 79 34 36
20465 .2559 6.500 8.0 79 34 36
20468 .2571 6.530 8.0 79 34 36
20472 .2598 6.600 8.0 79 34 36
20473 .2638 6.700 8.0 79 34 36
20475 .2657 6.750 8.0 79 34 36
20485 .2677 6.800 8.0 79 34 36
20495 .2717 6.900 8.0 79 34 36
20505 .2756 7.000 8.0 79 34 36
20515 .2795 7.100 8.0 79 41 36
20525 .2815 7.150 8.0 79 41 36
20535 .2835 7.200 8.0 79 41 36
20542 .2874 7.300 8.0 79 41 36
20545 .2913 7.400 8.0 79 41 36
20555 .2953 7.500 8.0 79 41 36
20565 .2972 7.550 8.0 79 41 36
20575 .2992 7.600 8.0 79 41 36
20585 .3031 7.700 8.0 79 41 36
20595 .3071 7.800 8.0 79 41 36
20605 .3130 7.950 8.0 79 41 36
20615 .3150 8.000 8.0 79 41 36
20622 .3189 8.100 10.0 89 47 40
20625 .3228 8.200 10.0 89 47 40
20635 .3268 8.300 10.0 89 47 40
20645 .3287 8.350 10.0 89 47 40
20652 .3307 8.400 10.0 89 47 40
20655 .3346 8.500 10.0 89 47 40
20665 .3386 8.600 10.0 89 47 40
20675 .3425 8.700 10.0 89 47 40
20685 .3445 8.750 10.0 89 47 40
20695 .3465 8.800 10.0 89 47 40
20705 .3504 8.900 10.0 89 47 40
20715 .3543 9.000 10.0 89 47 40
20725 .3583 9.100 10.0 89 47 40
20735 .3602 9.150 10.0 89 47 40
20745 .3622 9.200 10.0 89 47 40
20755 .3661 9.300 10.0 89 47 40
20762 .3701 9.400 10.0 89 47 40
20765 .3740 9.500 10.0 89 47 40
20775 .3760 9.550 10.0 89 47 40
20778 .3780 9.600 10.0 89 47 40
20782 .3819 9.700 10.0 89 47 40
20785 .3858 9.800 10.0 89 47 40
20795 .3898 9.900 10.0 89 47 40
20805 .3937 10.000 10.0 89 47 40
20812 .3976 10.100 12.0 102 55 45
20815 .4016 10.200 12.0 102 55 45
20825 .4055 10.300 12.0 102 55 45
20835 .4134 10.500 12.0 102 55 45
20842 .4173 10.600 12.0 102 55 45
20845 .4213 10.700 12.0 102 55 45
20855 .4252 10.800 12.0 102 55 45
30 www.garrtool.com ® ® ® † Metric equivalents are for reference only
