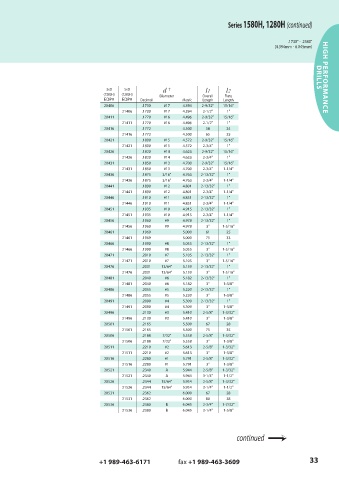

Page 33 - GARR_TOOL(CATALOG_INT)

Series 1580H, 1280H (continued)

.1730" - .2380"
(4.394mm - 6.045mm)

3xD 5xD d † l1 l2 DRILLS HIGH PERFORMANCE
(1580H) (1280H) Diameter Overall Flute
EDP# EDP# Decimal Metric Length Length
20406 .1730 #17 4.394 2-9/32" 15/16"
21406 .1730 #17 4.394 2-1/2" 1"
20411 .1770 #16 4.496 2-9/32" 15/16"
21411 .1770 #16 4.496 2-1/2" 1"
20416 .1772 4.500 58 24
21416 .1772 4.500 65 25
20421 .1800 #15 4.572 2-9/32" 15/16"
21421 .1800 #15 4.572 2-3/4" 1"
20426 .1820 #14 4.623 2-9/32" 15/16"
21426 .1820 #14 4.623 2-3/4" 1"
20431 .1850 #13 4.700 2-9/32" 15/16"
21431 .1850 #13 4.700 2-3/4" 1-1/4"
20436 .1875 3/16" 4.763 2-13/32" 1"
21436 .1875 3/16" 4.763 2-3/4" 1-1/4"
20441 .1890 #12 4.801 2-13/32" 1"
21441 .1890 #12 4.801 2-3/4" 1-1/4"
20446 .1910 #11 4.851 2-13/32" 1"
21446 .1910 #11 4.851 2-3/4" 1-1/4"
20451 .1935 #10 4.915 2-13/32" 1"
21451 .1935 #10 4.915 2-3/4" 1-1/4"
20456 .1960 #9 4.978 2-13/32" 1"
21456 .1960 #9 4.978 3" 1-5/16"
20461 .1969 5.000 61 25
21461 .1969 5.000 75 33
20466 .1990 #8 5.055 2-13/32" 1"
21466 .1990 #8 5.055 3" 1-5/16"
20471 .2010 #7 5.105 2-13/32" 1"
21471 .2010 #7 5.105 3" 1-5/16"
20476 .2031 13/64" 5.159 2-13/32" 1"
21476 .2031 13/64" 5.159 3" 1-5/16"
20481 .2040 #6 5.182 2-13/32" 1"
21481 .2040 #6 5.182 3" 1-3/8"
20486 .2055 #5 5.220 2-13/32" 1"
21486 .2055 #5 5.220 3" 1-3/8"
20491 .2090 #4 5.309 2-13/32" 1"
21491 .2090 #4 5.309 3" 1-3/8"
20496 .2130 #3 5.410 2-5/8" 1-3/32"
21496 .2130 #3 5.410 3" 1-3/8"
20501 .2165 5.500 67 28
21501 .2165 5.500 75 35
20506 .2188 7/32" 5.558 2-5/8" 1-3/32"
21506 .2188 7/32" 5.558 3" 1-3/8"
20511 .2210 #2 5.613 2-5/8" 1-3/32"
21511 .2210 #2 5.613 3" 1-3/8"
20516 .2280 #1 5.791 2-5/8" 1-3/32"
21516 .2280 #1 5.791 3" 1-3/8"
20521 .2340 A 5.944 2-5/8" 1-3/32"
21521 .2340 A 5.944 3-1/4" 1-1/2"
20526 .2344 15/64" 5.954 2-5/8" 1-3/32"
21526 .2344 15/64" 5.954 3-1/4" 1-1/2"
20531 .2362 6.000 67 28
21531 .2362 6.000 80 38
20536 .2380 B 6.045 2-3/4" 1-7/32"
21536 .2380 B 6.045 3-1/4" 1-5/8"

continued ?
