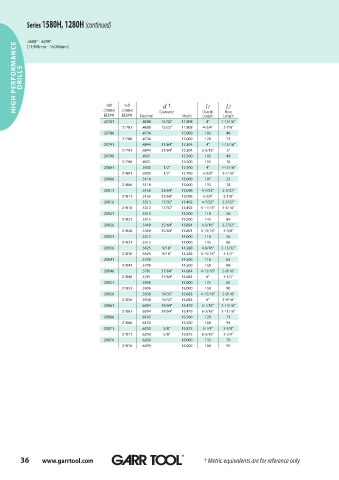

Series 1580H, 1280H (continued)

.4688" - .6299"
HIGH PERFORMANCE DRILLS
(11.908mm - 16.000mm)

d
3xD
5xD
†
l2
l1
(1580H)
Flute
EDP# (1280H) Decimal Diameter Metric Overall Length
EDP#
Length
20781 .4688 15/32" 11.908 4" 1-15/16"
21781 .4688 15/32" 11.908 4-3/4" 2-7/8"
20786 .4724 12.000 102 49
21786 .4724 12.000 120 73
20791 .4844 31/64" 12.304 4" 1-15/16"
21791 .4844 31/64" 12.304 5-5/16" 3"
20796 .4921 12.500 102 49
21796 .4921 12.500 135 76
20801 .5000 1/2" 12.700 4" 1-15/16"
21801 .5000 1/2" 12.700 5-3/8" 3-1/16"
20806 .5118 13.000 107 53
21806 .5118 13.000 135 78
20811 .5156 33/64" 13.096 4-7/32" 2-3/32"
21811 .5156 33/64" 13.096 5-3/8" 3-1/8"
20816 .5312 17/32" 13.492 4-7/32" 2-3/32"
21816 .5312 17/32" 13.492 5-11/16" 3-5/16"
20821 .5315 13.500 110 56
21821 .5315 13.500 145 84
20826 .5469 35/64" 13.891 4-5/16" 2-7/32"
21826 .5469 35/64" 13.891 5-13/16" 3-3/8"
20831 .5512 14.000 110 56
21831 .5512 14.000 145 86
20836 .5625 9/16" 14.288 4-9/16" 2-15/32"
21836 .5625 9/16" 14.288 5-15/16" 3-1/2"
20841 .5709 14.500 116 63
21841 .5709 14.500 150 89
20846 .5781 37/64" 14.684 4-15/16" 2-9/16"
21846 .5781 37/64" 14.684 6" 3-1/2"
20851 .5906 15.000 125 65
21851 .5906 15.000 150 90
20856 .5938 19/32" 15.083 4-15/16" 2-9/16"
21856 .5938 19/32" 15.083 6" 3-9/16"
20861 .6094 39/64" 15.479 5-1/16" 2-13/16"
21861 .6094 39/64" 15.479 6-3/16" 3-11/16"
20866 .6102 15.500 129 71
21866 .6102 15.500 160 94
20871 .6250 5/8" 15.875 5-1/4" 3-1/8"
21871 .6250 5/8" 15.875 6-5/16" 3-3/4"
20876 .6299 16.000 133 79
21876 .6299 16.000 160 95

36 www.garrtool.com ® ® ® † Metric equivalents are for reference only
