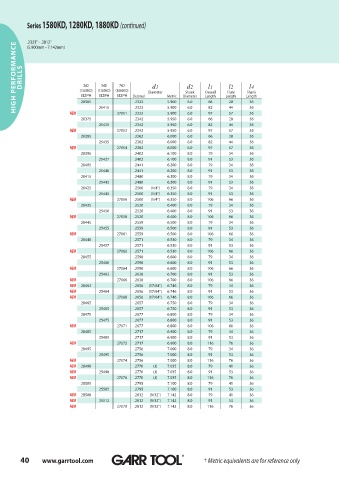

Page 40 - GARR_TOOL(CATALOG_INT)

Series 1580KD, 1280KD, 1880KD (continued)

.2323" - .2812"
HIGH PERFORMANCE DRILLS (1580KD) (1280KD) (1880KD) Decimal Diameter Metric Diameter Overall Length Length
(5.900mm - 7.142mm)

5xD
7xD
3xD
l1
d1
l2
d2
l4
Flute
Shank
Shank
EDP#
EDP#
EDP#
Length
28365
36
44
6.0
82
5.900
.2323
NEW
5.900
.2323
57
36
6.0
97
66
28
36
6.0
28375 25415 27051 .2323 5.900 6.0 66 28 36
.2342
5.950
25425 .2342 5.950 6.0 82 44 36
NEW 27052 .2342 5.950 6.0 97 57 36
28385 .2362 6.000 6.0 66 28 36
25435 .2362 6.000 6.0 82 44 36
NEW 27054 .2362 6.000 6.0 97 57 36
28395 .2402 6.100 8.0 79 34 36
25437 .2402 6.100 8.0 91 53 36
28405 .2441 6.200 8.0 79 34 36
25440 .2441 6.200 8.0 91 53 36
28415 .2480 6.300 8.0 79 34 36
25443 .2480 6.300 8.0 91 53 36
28425 .2500 (1/4") 6.350 8.0 79 34 36
25445 .2500 (1/4") 6.350 8.0 91 53 36
NEW 27056 .2500 (1/4") 6.350 8.0 106 66 36
28435 .2520 6.400 8.0 79 34 36
25450 .2520 6.400 8.0 91 53 36
NEW 27058 .2520 6.400 8.0 106 66 36
28445 .2559 6.500 8.0 79 34 36
25455 .2559 6.500 8.0 91 53 36
NEW 27061 .2559 6.500 8.0 106 66 36
28446 .2571 6.530 8.0 79 34 36
25457 .2571 6.530 8.0 91 53 36
NEW 27062 .2571 6.530 8.0 106 66 36
28455 .2598 6.600 8.0 79 34 36
25460 .2598 6.600 8.0 91 53 36
NEW 27064 .2598 6.600 8.0 106 66 36
25463 .2638 6.700 8.0 91 53 36
NEW 27066 .2638 6.700 8.0 106 66 36
NEW 28463 .2656 (17/64") 6.746 8.0 79 34 36
NEW 25464 .2656 (17/64") 6.746 8.0 91 53 36
NEW 27068 .2656 (17/64") 6.746 8.0 106 66 36
28465 .2657 6.750 8.0 79 34 36
25465 .2657 6.750 8.0 91 53 36
28475 .2677 6.800 8.0 79 34 36
25475 .2677 6.800 8.0 91 53 36
NEW 27071 .2677 6.800 8.0 106 66 36
28485 .2717 6.900 8.0 79 34 36
25485 .2717 6.900 8.0 91 53 36
NEW 27072 .2717 6.900 8.0 116 76 36
28495 .2756 7.000 8.0 79 34 36
25495 .2756 7.000 8.0 91 53 36
NEW 27074 .2756 7.000 8.0 116 76 36
NEW 28498 .2770 (J) 7.035 8.0 79 41 36
NEW 25498 .2770 (J) 7.035 8.0 91 53 36
NEW 27076 .2770 (J) 7.035 8.0 116 76 36
28505 .2795 7.100 8.0 79 41 36
25505 .2795 7.100 8.0 91 53 36
NEW 28508 .2812 (9/32") 7.142 8.0 79 41 36
NEW 25512 .2812 (9/32") 7.142 8.0 91 53 36
NEW 27079 .2812 (9/32") 7.142 8.0 116 76 36
40 www.garrtool.com ® ® ® † Metric equivalents are for reference only
