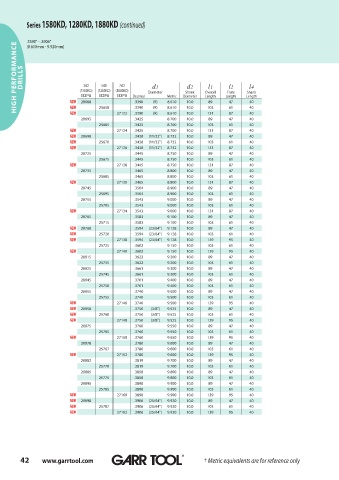

Page 42 - GARR_TOOL(CATALOG_INT)

Series 1580KD, 1280KD, 1880KD (continued)

.3390" - .3906"
HIGH PERFORMANCE DRILLS (1580KD) (1280KD) (1880KD) Decimal Diameter Metric Diameter Overall Length Length
(8.610mm - 9.920mm)

d1
d2
7xD
3xD
5xD
l2
l4
l1
Shank
Flute
Shank
EDP#
EDP#
EDP#
Length
NEW
28688
89
NEW
(R)
10.0
8.610
40
.3390
61
NEW
40
10.0
131
.3390
87
(R)
8.610
.3425
8.700
10.0
28695 25658 27122 .3390 (R) 8.610 10.0 103 47 40
89
47
40
25665 .3425 8.700 10.0 103 61 40
NEW 27124 .3425 8.700 10.0 131 87 40
NEW 28698 .3438 (11/32") 8.732 10.0 89 47 40
NEW 25670 .3438 (11/32") 8.732 10.0 103 61 40
NEW 27126 .3438 (11/32") 8.732 10.0 131 87 40
28725 .3445 8.750 10.0 89 47 40
25675 .3445 8.750 10.0 103 61 40
NEW 27128 .3445 8.750 10.0 131 87 40
28735 .3465 8.800 10.0 89 47 40
25685 .3465 8.800 10.0 103 61 40
NEW 27130 .3465 8.800 10.0 131 87 40
28745 .3504 8.900 10.0 89 47 40
25695 .3504 8.900 10.0 103 61 40
28755 .3543 9.000 10.0 89 47 40
25705 .3543 9.000 10.0 103 61 40
NEW 27134 .3543 9.000 10.0 131 87 40
28765 .3583 9.100 10.0 89 47 40
25715 .3583 9.100 10.0 103 61 40
NEW 28768 .3594 (23/64") 9.128 10.0 89 47 40
NEW 25720 .3594 (23/64") 9.128 10.0 103 61 40
NEW 27138 .3594 (23/64") 9.128 10.0 139 95 40
25725 .3602 9.150 10.0 103 61 40
NEW 27140 .3602 9.150 10.0 139 95 40
28815 .3622 9.200 10.0 89 47 40
25735 .3622 9.200 10.0 103 61 40
28825 .3661 9.300 10.0 89 47 40
25745 .3661 9.300 10.0 103 61 40
28845 .3701 9.400 10.0 89 47 40
25750 .3701 9.400 10.0 103 61 40
28855 .3740 9.500 10.0 89 47 40
25755 .3740 9.500 10.0 103 61 40
NEW 27146 .3740 9.500 10.0 139 95 40
NEW 28858 .3750 (3/8") 9.525 10.0 89 47 40
NEW 25760 .3750 (3/8") 9.525 10.0 103 61 40
NEW 27148 .3750 (3/8") 9.525 10.0 139 95 40
28875 .3760 9.550 10.0 89 47 40
25765 .3760 9.550 10.0 103 61 40
NEW 27150 .3760 9.550 10.0 139 95 40
28878 .3780 9.600 10.0 89 47 40
25767 .3780 9.600 10.0 103 61 40
NEW 27152 .3780 9.600 10.0 139 95 40
28882 .3819 9.700 10.0 89 47 40
25770 .3819 9.700 10.0 103 61 40
28885 .3858 9.800 10.0 89 47 40
25775 .3858 9.800 10.0 103 61 40
28895 .3898 9.900 10.0 89 47 40
25785 .3898 9.900 10.0 103 61 40
NEW 27160 .3898 9.900 10.0 139 95 40
NEW 28898 .3906 (25/64") 9.920 10.0 89 47 40
NEW 25787 .3906 (25/64") 9.920 10.0 103 61 40
NEW 27162 .3906 (25/64") 9.920 10.0 139 95 40
42 www.garrtool.com ® ® ® † Metric equivalents are for reference only
