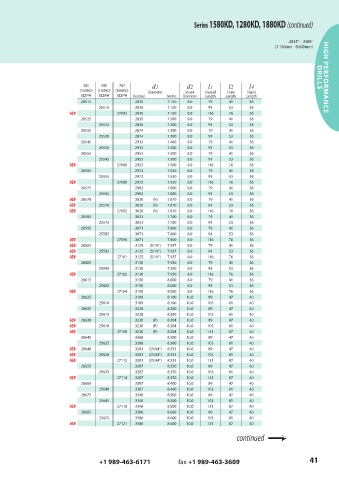

P. 41
Series 1580KD, 1280KD, 1880KD (continued)
.2815" - .3386"
(7.150mm - 8.600mm)
3xD 5xD 7xD d1 d2 l1 l2 l4 DRILLS HIGH PERFORMANCE
(1580KD) (1280KD) (1880KD) Diameter Shank Overall Flute Shank
EDP# EDP# EDP# Decimal Metric Diameter Length Length Length
28515 .2815 7.150 8.0 79 41 36
25515 .2815 7.150 8.0 91 53 36
NEW 27082 .2815 7.150 8.0 116 76 36
28525 .2835 7.200 8.0 79 41 36
25525 .2835 7.200 8.0 91 53 36
28535 .2874 7.300 8.0 79 41 36
25530 .2874 7.300 8.0 91 53 36
28545 .2913 7.400 8.0 79 41 36
25535 .2913 7.400 8.0 91 53 36
28555 .2953 7.500 8.0 79 41 36
25545 .2953 7.500 8.0 91 53 36
NEW 27086 .2953 7.500 8.0 116 76 36
28565 .2972 7.550 8.0 79 41 36
25555 .2972 7.550 8.0 91 53 36
NEW 27088 .2972 7.550 8.0 116 76 36
28575 .2992 7.600 8.0 79 41 36
25565 .2992 7.600 8.0 91 53 36
NEW 28578 .3020 (N) 7.670 8.0 79 41 36
NEW 25570 .3020 (N) 7.670 8.0 91 53 36
NEW 27092 .3020 (N) 7.670 8.0 116 76 36
28585 .3031 7.700 8.0 79 41 36
25575 .3031 7.700 8.0 91 53 36
28595 .3071 7.800 8.0 79 41 36
25585 .3071 7.800 8.0 91 53 36
NEW 27096 .3071 7.800 8.0 116 76 36
NEW 28602 .3125 (5/16") 7.937 8.0 79 41 36
NEW 25593 .3125 (5/16") 7.937 8.0 91 53 36
NEW 27101 .3125 (5/16") 7.937 8.0 116 76 36
28605 .3130 7.950 8.0 79 41 36
25595 .3130 7.950 8.0 91 53 36
NEW 27102 .3130 7.950 8.0 116 76 36
28615 .3150 8.000 8.0 79 41 36
25605 .3150 8.000 8.0 91 53 36
NEW 27104 .3150 8.000 8.0 116 76 36
28625 .3189 8.100 10.0 89 47 40
25610 .3189 8.100 10.0 103 61 40
28635 .3228 8.200 10.0 89 47 40
25615 .3228 8.200 10.0 103 61 40
NEW 28638 .3230 (P) 8.204 10.0 89 47 40
NEW 25618 .3230 (P) 8.204 10.0 103 61 40
NEW 27108 .3230 (P) 8.204 10.0 131 87 40
28645 .3268 8.300 10.0 89 47 40
25625 .3268 8.300 10.0 103 61 40
NEW 28648 .3281 (21/64") 8.333 10.0 89 47 40
NEW 25628 .3281 (21/64") 8.333 10.0 103 61 40
NEW 27112 .3281 (21/64") 8.333 10.0 131 87 40
28655 .3287 8.350 10.0 89 47 40
25635 .3287 8.350 10.0 103 61 40
NEW 27114 .3287 8.350 10.0 131 87 40
28665 .3307 8.400 10.0 89 47 40
25640 .3307 8.400 10.0 103 61 40
28675 .3346 8.500 10.0 89 47 40
25645 .3346 8.500 10.0 103 61 40
NEW 27118 .3346 8.500 10.0 131 87 40
28685 .3386 8.600 10.0 89 47 40
25655 .3386 8.600 10.0 103 61 40
NEW 27121 .3386 8.600 10.0 131 87 40
continued ?
