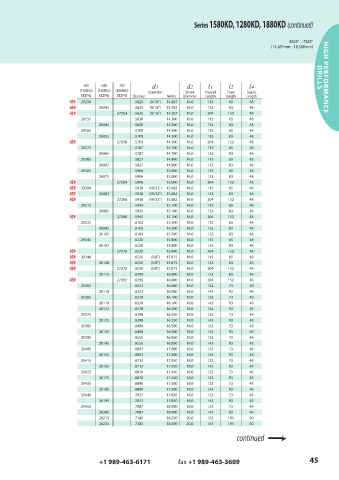

P. 45
Series 1580KD, 1280KD, 1880KD (continued)
.5625" - .7283"
(14.287mm - 18.500mm)
3xD 5xD 7xD d1 d2 l1 l2 l4 DRILLS HIGH PERFORMANCE
(1580KD) (1280KD) (1880KD) Diameter Shank Overall Flute Shank
EDP# EDP# EDP# Decimal Metric Diameter Length Length Length
NEW 29250 .5625 (9/16") 14.287 16.0 115 65 48
NEW 26042 .5625 (9/16") 14.287 16.0 133 83 48
NEW 27254 .5625 (9/16") 14.287 16.0 204 152 48
29255 .5630 14.300 16.0 115 65 48
26045 .5630 14.300 16.0 133 83 48
29265 .5709 14.500 16.0 115 65 48
26055 .5709 14.500 16.0 133 83 48
NEW 27258 .5709 14.500 16.0 204 152 48
29275 .5787 14.700 16.0 115 65 48
26065 .5787 14.700 16.0 133 83 48
29285 .5827 14.800 16.0 115 65 48
26067 .5827 14.800 16.0 133 83 48
29305 .5906 15.000 16.0 115 65 48
26075 .5906 15.000 16.0 133 83 48
NEW 27264 .5906 15.000 16.0 204 152 48
NEW 29308 .5938 (19/32") 15.082 16.0 115 65 48
NEW 26083 .5938 (19/32") 15.082 16.0 133 83 48
NEW 27266 .5938 (19/32") 15.082 16.0 204 152 48
29315 .5945 15.100 16.0 115 65 48
26085 .5945 15.100 16.0 133 83 48
NEW 27268 .5945 15.100 16.0 204 152 48
29325 .6102 15.500 16.0 115 65 48
26095 .6102 15.500 16.0 133 83 48
26105 .6181 15.700 16.0 133 83 48
29345 .6220 15.800 16.0 115 65 48
26107 .6220 15.800 16.0 133 83 48
NEW 27276 .6220 15.800 16.0 204 152 48
NEW 29348 .6250 (5/8") 15.875 16.0 115 65 48
NEW 26108 .6250 (5/8") 15.875 16.0 133 83 48
NEW 27278 .6250 (5/8") 15.875 16.0 204 152 48
26115 .6299 16.000 16.0 133 83 48
NEW 27282 .6299 16.000 16.0 204 152 48
29363 .6331 16.080 18.0 123 73 48
26118 .6331 16.080 18.0 143 93 48
29365 .6339 16.100 18.0 123 73 48
26119 .6339 16.100 18.0 143 93 48
26123 .6378 16.200 18.0 143 93 48
29375 .6398 16.250 18.0 123 73 48
26125 .6398 16.250 18.0 143 93 48
29385 .6496 16.500 18.0 123 73 48
26135 .6496 16.500 18.0 143 93 48
29395 .6555 16.650 18.0 123 73 48
26145 .6555 16.650 18.0 143 93 48
29405 .6693 17.000 18.0 123 73 48
26155 .6693 17.000 18.0 143 93 48
29415 .6713 17.050 18.0 123 73 48
26165 .6713 17.050 18.0 143 93 48
29425 .6870 17.450 18.0 123 73 48
26175 .6870 17.450 18.0 143 93 48
29435 .6890 17.500 18.0 123 73 48
26185 .6890 17.500 18.0 143 93 48
29445 .7027 17.850 18.0 123 73 48
26195 .7027 17.850 18.0 143 93 48
29455 .7087 18.000 18.0 123 73 48
26205 .7087 18.000 18.0 143 93 48
26215 .7185 18.250 20.0 153 101 50
26225 .7283 18.500 20.0 153 101 50
continued ?
