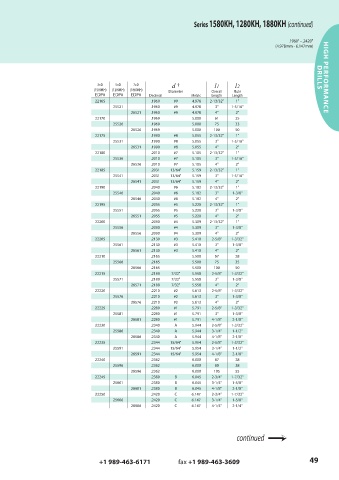

Page 49 - GARR_TOOL(CATALOG_INT)

Series 1580KH, 1280KH, 1880KH (continued)

.1960" - .2420"
(4.978mm - 6.147mm)

3xD 5xD 7xD d † l1 l2 DRILLS HIGH PERFORMANCE
(1580KH) (1280KH) (1880KH) Diameter Overall Flute
EDP# EDP# EDP# Decimal Metric Length Length
22165 .1960 #9 4.978 2-13/32" 1"
25521 .1960 #9 4.978 3" 1-5/16"
26521 .1960 #9 4.978 4" 2"
22170 .1969 5.000 61 25
25526 .1969 5.000 75 33
26526 .1969 5.000 100 50
22175 .1990 #8 5.055 2-13/32" 1"
25531 .1990 #8 5.055 3" 1-5/16"
26531 .1990 #8 5.055 4" 2"
22180 .2010 #7 5.105 2-13/32" 1"
25536 .2010 #7 5.105 3" 1-5/16"
26536 .2010 #7 5.105 4" 2"
22185 .2031 13/64" 5.159 2-13/32" 1"
25541 .2031 13/64" 5.159 3" 1-5/16"
26541 .2031 13/64" 5.159 4" 2"
22190 .2040 #6 5.182 2-13/32" 1"
25546 .2040 #6 5.182 3" 1-3/8"
26546 .2040 #6 5.182 4" 2"
22195 .2055 #5 5.220 2-13/32" 1"
25551 .2055 #5 5.220 3" 1-3/8"
26551 .2055 #5 5.220 4" 2"
22200 .2090 #4 5.309 2-13/32" 1"
25556 .2090 #4 5.309 3" 1-3/8"
26556 .2090 #4 5.309 4" 2"
22205 .2130 #3 5.410 2-5/8" 1-3/32"
25561 .2130 #3 5.410 3" 1-3/8"
26561 .2130 #3 5.410 4" 2"
22210 .2165 5.500 67 28
25566 .2165 5.500 75 35
26566 .2165 5.500 100 50
22215 .2188 7/32" 5.558 2-5/8" 1-3/32"
25571 .2188 7/32" 5.558 3" 1-3/8"
26571 .2188 7/32" 5.558 4" 2"
22220 .2210 #2 5.613 2-5/8" 1-3/32"
25576 .2210 #2 5.613 3" 1-3/8"
26576 .2210 #2 5.613 4" 2"
22225 .2280 #1 5.791 2-5/8" 1-3/32"
25581 .2280 #1 5.791 3" 1-3/8"
26581 .2280 #1 5.791 4-1/8" 2-1/8"
22230 .2340 A 5.944 2-5/8" 1-3/32"
25586 .2340 A 5.944 3-1/4" 1-1/2"
26586 .2340 A 5.944 4-1/8" 2-1/8"
22235 .2344 15/64" 5.954 2-5/8" 1-3/32"
25591 .2344 15/64" 5.954 3-1/4" 1-1/2"
26591 .2344 15/64" 5.954 4-1/8" 2-1/8"
22240 .2362 6.000 67 28
25596 .2362 6.000 80 38
26596 .2362 6.000 105 55
22245 .2380 B 6.045 2-3/4" 1-7/32"
25601 .2380 B 6.045 3-1/4" 1-5/8"
26601 .2380 B 6.045 4-1/8" 2-1/8"
22250 .2420 C 6.147 2-3/4" 1-7/32"
25606 .2420 C 6.147 3-1/4" 1-5/8"
26606 .2420 C 6.147 4-1/4" 2-1/4"

continued ?
