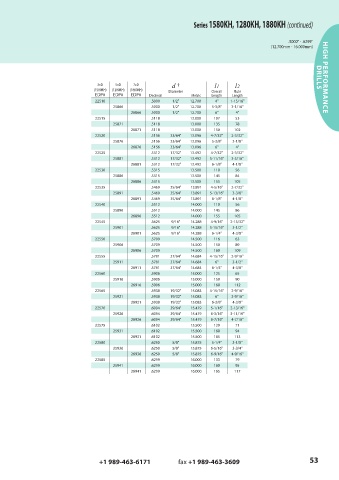

Page 53 - GARR_TOOL(CATALOG_INT)

Series 1580KH, 1280KH, 1880KH (continued)

.5000" - .6299"
(12.700mm - 16.000mm)

3xD 5xD 7xD d † l1 l2 DRILLS HIGH PERFORMANCE
(1580KH) (1280KH) (1880KH) Diameter Overall Flute
EDP# EDP# EDP# Decimal Metric Length Length
22510 .5000 1/2" 12.700 4" 1-15/16"
25866 .5000 1/2" 12.700 5-3/8" 3-1/16"
26866 .5000 1/2" 12.700 6" 4"
22515 .5118 13.000 107 53
25871 .5118 13.000 135 78
26871 .5118 13.000 150 102
22520 .5156 33/64" 13.096 4-7/32" 2-3/32"
25876 .5156 33/64" 13.096 5-3/8" 3-1/8"
26876 .5156 33/64" 13.096 6" 4"
22525 .5312 17/32" 13.492 4-7/32" 2-3/32"
25881 .5312 17/32" 13.492 5-11/16" 3-5/16"
26881 .5312 17/32" 13.492 6-1/8" 4-1/8"
22530 .5315 13.500 110 56
25886 .5315 13.500 145 84
26886 .5315 13.500 155 105
22535 .5469 35/64" 13.891 4-5/16" 2-7/32"
25891 .5469 35/64" 13.891 5-13/16" 3-3/8"
26891 .5469 35/64" 13.891 6-1/8" 4-1/8"
22540 .5512 14.000 110 56
25896 .5512 14.000 145 86
26896 .5512 14.000 155 105
22545 .5625 9/16" 14.288 4-9/16" 2-15/32"
25901 .5625 9/16" 14.288 5-15/16" 3-1/2"
26901 .5625 9/16" 14.288 6-1/4" 4-3/8"
22550 .5709 14.500 116 63
25906 .5709 14.500 150 89
26906 .5709 14.500 160 109
22555 .5781 37/64" 14.684 4-15/16" 2-9/16"
25911 .5781 37/64" 14.684 6" 3-1/2"
26911 .5781 37/64" 14.684 6-1/4" 4-3/8"
22560 .5906 15.000 125 65
25916 .5906 15.000 150 90
26916 .5906 15.000 160 112
22565 .5938 19/32" 15.083 4-15/16" 2-9/16"
25921 .5938 19/32" 15.083 6" 3-9/16"
26921 .5938 19/32" 15.083 6-3/8" 4-3/8"
22570 .6094 39/64" 15.479 5-1/16" 2-13/16"
25926 .6094 39/64" 15.479 6-3/16" 3-11/16"
26926 .6094 39/64" 15.479 6-7/16" 4-7/16"
22575 .6102 15.500 129 71
25931 .6102 15.500 160 94
26931 .6102 15.500 165 113
22580 .6250 5/8" 15.875 5-1/4" 3-1/8"
25936 .6250 5/8" 15.875 6-5/16" 3-3/4"
26936 .6250 5/8" 15.875 6-9/16" 4-9/16"
22585 .6299 16.000 133 79
25941 .6299 16.000 160 95
26941 .6299 16.000 165 117
