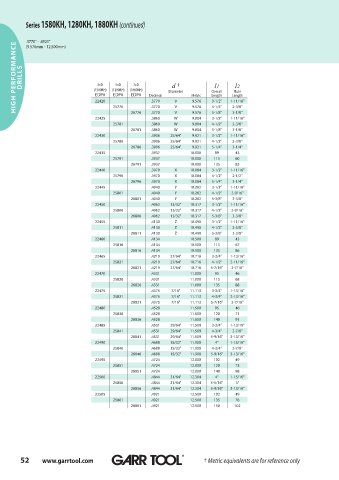

Page 52 - GARR_TOOL(CATALOG_INT)

Series 1580KH, 1280KH, 1880KH (continued)

.3770" - .4921"
HIGH PERFORMANCE DRILLS (1580KH) (1280KH) (1880KH) Decimal Diameter Metric Overall Length
(9.576mm - 12.500mm)

d
†
7xD
3xD
5xD
l2
l1
Flute
EDP#
EDP#
EDP#
Length
V
22420
4-1/4"
.3770
9.576
V
2-3/8"
.3770
V
9.576
5-1/8"
3-1/8"
9.804
.3860
1-11/16"
3-1/2"
22425 25776 26776 .3770 W 9.576 3-1/2" 1-11/16"
25781 .3860 W 9.804 4-1/2" 2-3/8"
26781 .3860 W 9.804 5-1/8" 3-1/8"
22430 .3906 25/64" 9.921 3-1/2" 1-11/16"
25786 .3906 25/64" 9.921 4-1/2" 2-3/8"
26786 .3906 25/64" 9.921 5-1/4" 3-1/4"
22435 .3937 10.000 89 43
25791 .3937 10.000 115 60
26791 .3937 10.000 135 83
22440 .3970 X 10.084 3-1/2" 1-11/16"
25796 .3970 X 10.084 4-1/2" 2-1/2"
26796 .3970 X 10.084 5-1/4" 3-1/4"
22445 .4040 Y 10.262 3-1/2" 1-11/16"
25801 .4040 Y 10.262 4-1/2" 2-9/16"
26801 .4040 Y 10.262 5-3/8" 3-3/8"
22450 .4062 13/32" 10.317 3-1/2" 1-11/16"
25806 .4062 13/32" 10.317 4-1/2" 2-9/16"
26806 .4062 13/32" 10.317 5-3/8" 3-3/8"
22455 .4130 Z 10.490 3-1/2" 1-11/16"
25811 .4130 Z 10.490 4-1/2" 2-5/8"
26811 .4130 Z 10.490 5-3/8" 3-3/8"
22460 .4134 10.500 89 43
25816 .4134 10.500 115 67
26816 .4134 10.500 135 86
22465 .4219 27/64" 10.716 3-3/4" 1-13/16"
25821 .4219 27/64" 10.716 4-1/2" 2-11/16"
26821 .4219 27/64" 10.716 5-7/16" 3-7/16"
22470 .4331 11.000 95 46
25826 .4331 11.000 115 68
26826 .4331 11.000 135 88
22475 .4375 7/16" 11.113 3-3/4" 1-13/16"
25831 .4375 7/16" 11.113 4-3/4" 2-13/16"
26831 .4375 7/16" 11.113 5-7/16" 3-7/16"
22480 .4528 11.500 95 46
25836 .4528 11.500 120 71
26836 .4528 11.500 140 91
22485 .4531 29/64" 11.509 3-3/4" 1-13/16"
25841 .4531 29/64" 11.509 4-3/4" 2-7/8"
26841 .4531 29/64" 11.509 5-9/16" 3-13/16"
22490 .4688 15/32" 11.908 4" 1-15/16"
25846 .4688 15/32" 11.908 4-3/4" 2-7/8"
26846 .4688 15/32" 11.908 5-9/16" 3-13/16"
22495 .4724 12.000 102 49
25851 .4724 12.000 120 73
26851 .4724 12.000 140 98
22500 .4844 31/64" 12.304 4" 1-15/16"
25856 .4844 31/64" 12.304 5-5/16" 3"
26856 .4844 31/64" 12.304 5-9/16" 3-13/16"
22505 .4921 12.500 102 49
25861 .4921 12.500 135 76
26861 .4921 12.500 150 102

52 www.garrtool.com ® ® ® † Metric equivalents are for reference only
