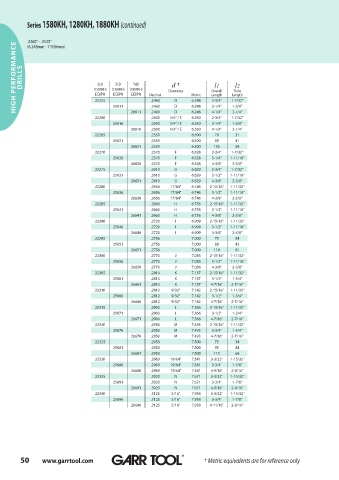

Page 50 - GARR_TOOL(CATALOG_INT)

Series 1580KH, 1280KH, 1880KH (continued)

.2460" - .3125"
HIGH PERFORMANCE DRILLS (1580KH) (1280KH) (1880KH) Decimal Diameter Metric Overall Length
(6.248mm - 7.938mm)

d
†
7xD
3xD
5xD
l2
l1
Flute
EDP#
EDP#
EDP#
Length
D
22255
3-1/4"
.2460
6.248
D
1-5/8"
.2460
D
6.248
4-1/4"
2-1/4"
6.350
.2500
1-7/32"
2-3/4"
22260 25611 26611 .2460 1/4" / E 6.248 2-3/4" 1-7/32"
25616 .2500 1/4" / E 6.350 3-1/4" 1-5/8"
26616 .2500 1/4" / E 6.350 4-1/4" 2-1/4"
22265 .2559 6.500 70 31
25621 .2559 6.500 80 41
26621 .2559 6.500 105 58
22270 .2570 F 6.528 2-3/4" 1-7/32"
25626 .2570 F 6.528 3-1/4" 1-11/16"
26626 .2570 F 6.528 4-3/8" 2-3/8"
22275 .2610 G 6.629 2-3/4" 1-7/32"
25631 .2610 G 6.629 3-1/2" 1-11/16"
26631 .2610 G 6.629 4-3/8" 2-3/8"
22280 .2656 17/64" 6.746 2-15/16" 1-11/32"
25636 .2656 17/64" 6.746 3-1/2" 1-11/16"
26636 .2656 17/64" 6.746 4-3/8" 2-3/8"
22285 .2660 H 6.756 2-15/16" 1-11/32"
25641 .2660 H 6.756 3-1/2" 1-11/16"
26641 .2660 H 6.756 4-3/8" 2-3/8"
22290 .2720 I 6.909 2-15/16" 1-11/32"
25646 .2720 I 6.909 3-1/2" 1-11/16"
26646 .2720 I 6.909 4-3/8" 2-3/8"
22295 .2756 7.000 75 34
25651 .2756 7.000 88 43
26651 .2756 7.000 110 61
22300 .2770 J 7.036 2-15/16" 1-11/32"
25656 .2770 J 7.036 3-1/2" 1-11/16"
26656 .2770 J 7.036 4-3/8" 2-3/8"
22305 .2810 K 7.137 2-15/16" 1-11/32"
25661 .2810 K 7.137 3-1/2" 1-3/4"
26661 .2810 K 7.137 4-7/16" 2-7/16"
22310 .2812 9/32" 7.142 2-15/16" 1-11/32"
25666 .2812 9/32" 7.142 3-1/2" 1-3/4"
26666 .2812 9/32" 7.142 4-7/16" 2-7/16"
22315 .2900 L 7.366 2-15/16" 1-11/32"
25671 .2900 L 7.366 3-1/2" 1-3/4"
26671 .2900 L 7.366 4-7/16" 2-7/16"
22320 .2950 M 7.493 2-15/16" 1-11/32"
25676 .2950 M 7.493 3-3/4" 1-3/4"
26676 .2950 M 7.493 4-7/16" 2-7/16"
22325 .2953 7.500 75 34
25681 .2953 7.500 95 44
26681 .2953 7.500 115 66
22330 .2969 19/64" 7.541 3-3/32" 1-15/32"
25686 .2969 19/64" 7.541 3-3/4" 1-7/8"
26686 .2969 19/64" 7.541 4-9/16" 2-9/16"
22335 .3020 N 7.671 3-3/32" 1-15/32"
25691 .3020 N 7.671 3-3/4" 1-7/8"
26691 .3020 N 7.671 4-9/16" 2-9/16"
22340 .3125 5/16" 7.938 3-3/32" 1-15/32"
25696 .3125 5/16" 7.938 3-3/4" 1-7/8"
26696 .3125 5/16" 7.938 4-11/16" 2-9/16"

50 www.garrtool.com ® ® ® † Metric equivalents are for reference only
