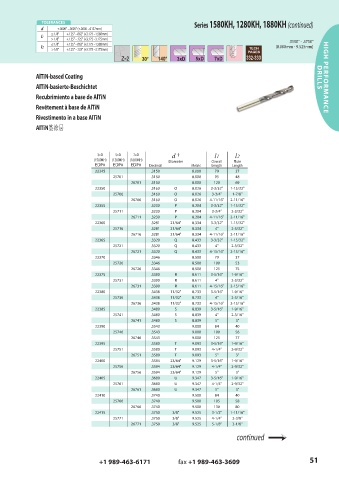

Page 51 - GARR_TOOL(CATALOG_INT)

TOLERANCES Series 1580KH, 1280KH, 1880KH (continued)
d +.0000" –.0005" (+.0000 –.0127mm)
≤ 1/8" +.125" –.062" (+3.175 –1.588mm)
l1
> 1/8" +.125" –.125" (+3.175 –3.175mm) .3150" - .3750"
≤ 1/8" +.125" –.062" (+3.175 –1.588mm)
l2 (8.000mm - 9.525mm)
>1/8" +.125" –.125" (+3.175 –3.175mm)
3xD 5xD 7xD 332-333

AlTiN-based Coating DRILLS HIGH PERFORMANCE
AlTiN-basierte-Beschichtet
Recubrimiento a base de AlTiN
Revêtement à base de AlTiN

Rivestimento in a base AlTiN
基
涂层
AlTiN基涂层

3xD 5xD 7xD d † l1 l2
(1580KH) (1280KH) (1880KH) Diameter Overall Flute
EDP# EDP# EDP# Decimal Metric Length Length
22345 .3150 8.000 79 37
25701 .3150 8.000 95 48
26701 .3150 8.000 120 69
22350 .3160 O 8.026 3-3/32" 1-15/32"
25706 .3160 O 8.026 3-3/4" 1-7/8"
26706 .3160 O 8.026 4-11/16" 2-11/16"
22355 .3230 P 8.204 3-3/32" 1-15/32"
25711 .3230 P 8.204 3-3/4" 2-3/32"
26711 .3230 P 8.204 4-11/16" 2-11/16"
22360 .3281 21/64" 8.334 3-3/32" 1-15/32"
25716 .3281 21/64" 8.334 4" 2-3/32"
26716 .3281 21/64" 8.334 4-11/16" 2-11/16"
22365 .3320 Q 8.433 3-3/32" 1-15/32"
25721 .3320 Q 8.433 4" 2-3/32"
26721 .3320 Q 8.433 4-15/16" 2-15/16"
22370 .3346 8.500 79 37
25726 .3346 8.500 100 53
26726 .3346 8.500 125 75
22375 .3390 R 8.611 3-5/16" 1-9/16"
25731 .3390 R 8.611 4" 2-3/32"
26731 .3390 R 8.611 4-15/16" 2-15/16"
22380 .3438 11/32" 8.733 3-5/16" 1-9/16"
25736 .3438 11/32" 8.733 4" 2-3/16"
26736 .3438 11/32" 8.733 4-15/16" 2-15/16"
22385 .3480 S 8.839 3-5/16" 1-9/16"
25741 .3480 S 8.839 4" 2-3/16"
26741 .3480 S 8.839 5" 3"
22390 .3543 9.000 84 40
25746 .3543 9.000 100 56
26746 .3543 9.000 125 77
22395 .3580 T 9.093 3-5/16" 1-9/16"
25751 .3580 T 9.093 4-1/4" 2-9/32"
26751 .3580 T 9.093 5" 3"
22400 .3594 23/64" 9.129 3-5/16" 1-9/16"
25756 .3594 23/64" 9.129 4-1/4" 2-9/32"
26756 .3594 23/64" 9.129 5" 3"
22405 .3680 U 9.347 3-5/16" 1-9/16"
25761 .3680 U 9.347 4-1/4" 2-9/32"
26761 .3680 U 9.347 5" 3"
22410 .3740 9.500 84 40
25766 .3740 9.500 105 58
26766 .3740 9.500 130 80
22415 .3750 3/8" 9.525 3-1/2" 1-11/16"
25771 .3750 3/8" 9.525 4-1/4" 2-3/8"
26771 .3750 3/8" 9.525 5-1/8" 3-1/8"

continued ?
