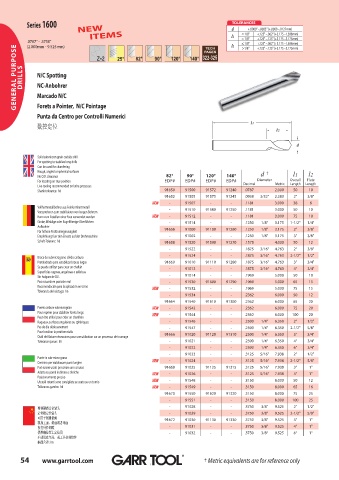

P. 54

Series 1600                                                              TOLERANCES
                            NEW
                            NEW                                                   d     +.0000" –.0005" (+.0000 –.0127mm)
                                 ITEMS                                            l1  ≤ 1/8"  +.125" –.062" (+3.175 –1.588mm)
                                 ITEMS
          .0787" - .3750"                        82°                    322-325   l2  > 1/8"  +.125" –.125" (+3.175 –3.175mm)
                                                                                      ≤ 1/8"
                                                                                           +.125" –.062" (+3.175 –1.588mm)
          (2.000mm - 9.525mm)
       GENERAL PURPOSE  DRILLS  DRILLS  N/C Spotting
                                                                                           +.125" –.125" (+3.175 –3.175mm)
                                                                                      >1/8"

              NC-Anbohrer
              Marcado N/C
              Forets a Pointer,  N/C Pointage
              Punta da Centro per Controlli Numerici

              数控定位
              数控定位




              Solid submicron grain carbide drill
              For spotting to stabilize long drills
              Can be used for chamfering
              Rough, angled or spherical surfaces                                            d  †       l1   l2
              No O.D. clearance                            82°     90°   120°    140°
              For locating on true position                EDP#   EDP#   EDP#   EDP#       Diameter    Overall  Flute
              Live tooling recommended on lathe processes                             Decimal     Metric  Length  Length
              Shank tolerance:  h6                         91650  91500  91572  91240  .0787      2.000  50  10
                                                           91652  91505  91575  91245  .0938  3/32"  2.383  2"  3/8"
                                                       NEW  -     91507    -      -    .1181      3.000  38   6
              Vollhartmetallbohrer aus Feinkornhartmetall
              Vorzentrieren zum stabilisieren von langen Bohrern  -  91510  91580  91250  .1181   3.000  50  10
              Kann zum Erstellen einer Fase verwendet werden  NEW  -  91512  -    -    .1181      3.000  75  10
              Grobe, Winklige oder Kugelförmige Oberflächen  -    91514    -      -    .1250  1/8"  3.175  1-1/2"  1/4"
              Aufbohrer
              Für höhere Positioniergenauigkeit            91656  91000  91100  91260  .1250  1/8"  3.175  2"  3/8"
              Empfehlung fuer den Einsatz auf der Drehmaschine  -  91002   -      -    .1250  1/8"  3.175  3"  3/8"
              Schaft-Toleranz:  h6                         91658  91520  91590  91270  .1575      4.000  50  12
                                                            -     91522    -      -    .1875  3/16"  4.763  2"  3/8"
              Broca de submicrograno sólido carburo         -     91524    -      -    .1875  3/16"  4.763  2-1/2"  1/2"
              Pretaladrado para estabilizar brocas largas  91660  91010  91110  91280  .1875  3/16"  4.763  3"  3/4"
              Se puede utilizar para crear un chaflán       -     91012    -      -    .1875  3/16"  4.763  4"  3/4"
              Superficies rugosas, angulosas o esféricas
              Sin holgura de D.E.                           -     91014    -      -    .1969      5.000  50  10
              Para situarla en posición real                -     91530  91600  91290  .1969      5.000  65  15
              Recomendación para la aplicación en torno  NEW  -   91532    -      -    .1969      5.000  75  15
              Tolerancia del vástago:  h6
                                                            -     91534    -      -    .2362      6.000  50  12
                                                           91664  91540  91610  91300  .2362      6.000  65  20
              Forets carbure submicrograin             NEW  -     91542    -      -    .2362      6.000  75  20
              Pour repérer pour stabiliser forets longs  NEW  -   91544    -      -    .2362      6.000  100  20
              Peut être utilisé pour créer un chanfrein
              Rugueux, surfaces angulaires ou sphériques    -     91546    -      -    .2500  1/4"  6.350  2"  1/2"
              Pas de dia dédouanement                       -     91547    -      -    .2500  1/4"  6.350  2-1/2"  5/8"
              Pour localiser la position réelle
              Outil de filature nécessaires pour une utilisation sur un processus de tournage  91666  91020  91120  91310  .2500  1/4"  6.350  3"  3/4"
              Tolerance queue:  h6                          -     91021    -      -    .2500  1/4"  6.350  4"  3/4"
                                                            -     91022    -      -    .2500  1/4"  6.350  6"  3/4"
                                                            -     91023    -      -    .3125  5/16"  7.938  2"  1/2"
              Punte in sub-micro grana
              Centrino per stabilizzare punti lunghe   NEW  -     91024    -      -    .3125  5/16"  7.938  2-1/2"  5/8"
              Può essere usato per creare uno smusso       91668  91025  91125  91315  .3125  5/16"  7.938  3"  1"
              Adatto su pareti inclinate o sferiche    NEW  -     91026    -      -    .3125  5/16"  7.938  4"  1"
              Posizionamento preciso
              Utensili rotanti sono consigliate se usato su un tornio  NEW  -  91548  -  -  .3150  8.000  50  12
              Tolleranza gambo:  h6                    NEW  -     91549    -      -    .3150      8.000  65  16
                                                           91670  91550  91620  91320  .3150      8.000  75  25
                                                            -     91551    -      -    .3150      8.000  100  25
              整体硬质合金钻头                                      -     91028    -      -    .3750  3/8"  9.525  2"  1/2"
              定位稳定长钻头                                       -     91029    -      -    .3750  3/8"  9.525  2-1/2"  5/8"
              可用于创建倒角                                      91672  91030  91130  91330  .3750  3/8"  9.525  3"  1"
              粗加工面、斜面或者球面
              没有外径间隙                                        -     91031    -      -    .3750  3/8"  9.525  4"  1"
              供准确位置上定位用                                     -     91032    -      -    .3750  3/8"  9.525  6"  1"
              不建议在车床,或工具必须纺纱
              柄部公差:  h6


        54      www.garrtool.com                                 ® ® ®   †  Metric equivalents are for reference only
