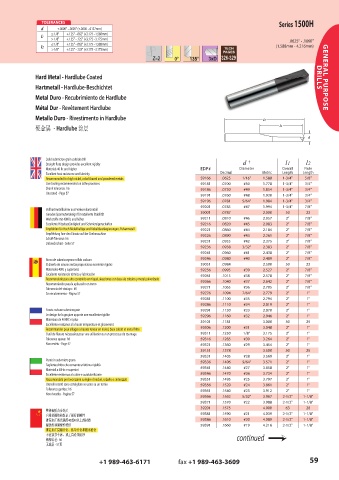

Page 59 - GARR_TOOL(CATALOG_INT)

TOLERANCES Series 1500H
d +.0000" –.0005" (+.0000 –.0127mm)
≤ 1/8" +.125" –.062" (+3.175 –1.588mm)
l1
> 1/8" +.125" –.125" (+3.175 –3.175mm) .0625" - .1660"
≤ 1/8" +.125" –.062" (+3.175 –1.588mm)
l2 (1.588mm - 4.216mm)
>1/8" +.125" –.125" (+3.175 –3.175mm)
326-329
0° 3xD
Hard Metal - Hardlube Coated DRILLS GENERAL PURPOSE
Hartmetall - Hardlube-Beschichtet
Metal Duro - Recubrimiento de Hardlube

Métal Dur - Revêtement Hardlube
Metallo Duro - Rivestimento in Hardlube
硬金属
硬金属 - Hardlube 涂层
涂层

Solid submicron grain carbide drill
Straight flute design provides excellent rigidity d † l1 l2
Materials 40 Rc and higher EDP# Diameter Overall Flute
Excellent heat resistance and lubricity Decimal Metric Length Length
Recommended for high nickel, cobalt based and powdered metals 59166 .0625 1/16" 1.588 1-3/4" 5/8"
Live tooling recommended on lathe processes 59181 .0700 #50 1.778 1-3/4" 3/4"
Shank tolerance: h6 59186 .0730 #49 1.854 1-3/4" 3/4"
Uncoated - Page 57
59191 .0760 #48 1.930 1-3/4" 3/4"
59196 .0781 5/64" 1.984 1-3/4" 3/4"
59201 .0785 #47 1.994 1-3/4" 7/8"
Vollhartmetallbohrer aus Feinkornhartmetall
Gerades Spannutendesign für exzellente Stabilität 39001 .0787 2.000 50 22
Werkstoffe mit 40HRc und höher 59211 .0810 #46 2.057 2" 7/8"
Exzellente Hitzebeständigkeit und Schmiereigenschaften 59216 .0820 #45 2.083 2" 7/8"
Empfohlen für Hoch Nickelhaltige und Kobaltbasislegierungen, Pulvermetall 59221 .0860 #44 2.184 2" 7/8"
Empfehlung fuer den Einsatz auf der Drehmaschine 59226 .0890 #43 2.261 2" 7/8"
Schaft-Toleranz: h6
Unbeschichtet - Seite 57 59231 .0935 #42 2.375 2" 7/8"
59236 .0938 3/32" 2.383 2" 7/8"
59241 .0960 #41 2.438 2" 7/8"
Broca de submicrograno sólido carburo 59246 .0980 #40 2.489 2" 7/8"
El diseño de ranuras rectas proporciona excelente rigidez 39051 .0984 2.500 50 22
Materiales 40Rc y superiores 59256 .0995 #39 2.527 2" 7/8"
Excelente resistencia térmica y lubricación 59261 .1015 #38 2.578 2" 7/8"
Recomendado para alto contenido en níquel, aleaciones con base de cobalto y metal pulverizado
Recomendación para la aplicación en torno 59266 .1040 #37 2.642 2" 7/8"
Tolerancia del vástago: h6 59271 .1065 #36 2.705 2" 7/8"
Sin recubrimiento - Página 57 59276 .1094 7/64" 2.779 2" 1"
59281 .1100 #35 2.794 2" 1"
59286 .1110 #34 2.819 2" 1"
Forets carbure submicrograin 59291 .1130 #33 2.870 2" 1"
Le design de la goujure apporte une excellente rigidite 59296 .1160 #32 2.946 2" 1"
Materiaux de 40HRC et plus 39101 .1181 3.000 50 25
Excellente resistance a la haute temperature et glissement
Recommander pour alliages a hautes teneur en nickel, base cobalt et metal fritte 59306 .1200 #31 3.048 2" 1"
Outil de filature nécessaires pour une utilisation sur un processus de tournage 59311 .1250 1/8" 3.175 2" 1"
Tolerance queue: h6 59316 .1285 #30 3.264 2" 1"
Non revêtu - Page 57 59321 .1360 #29 3.454 2" 1"
39151 .1378 3.500 50 25
59331 .1405 #28 3.569 2" 1"
Punte in sub-micro grana 59336 .1406 9/64" 3.571 2" 1"
Tagliente dritto che consente un’ottima rigidità
Materiali a 40Hrc e superiori 59341 .1440 #27 3.658 2" 1"
Eccellente resistenza al calore e autolubrificante 59346 .1470 #26 3.734 2" 1"
Raccomandata per lavorazioni su leghe di nickel, cobalto e sinterizzati 59351 .1495 #25 3.797 2" 1"
Utensili rotanti sono consigliate se usato su un tornio 59356 .1520 #24 3.861 2" 1"
Tolleranza gambo: h6 59361 .1540 #23 3.912 2" 1"
Non rivestito - Pagina 57
59366 .1562 5/32" 3.967 2-1/2" 1-1/8"
59371 .1570 #22 3.988 2-1/2" 1-1/8"
39201 .1575 4.000 63 28
整体硬质合金钻头
直排屑槽结构保证了极好的刚性 59381 .1590 #21 4.039 2-1/2" 1-1/8"
推荐加工洛氏硬度40或40以上的材质 59386 .1610 #20 4.089 2-1/2" 1-1/8"
耐热性和润滑性特好 59391 .1660 #19 4.216 2-1/2" 1-1/8"
推荐加工高镍合金、钴基合金和粉末冶金
不建议在车床，或工具必须纺纱 continued ?
柄部公差: h6
无涂层 - 57页

+1 989-463-6171 fax +1 989-463-3609 59
