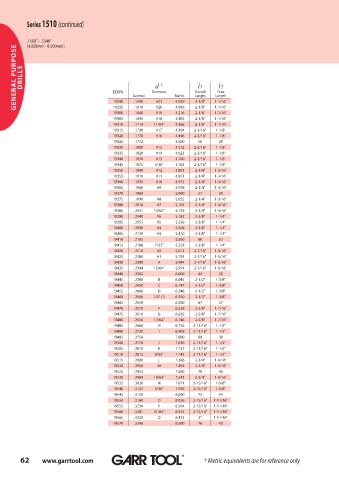

Page 62 - GARR_TOOL(CATALOG_INT)

Series 1510 (continued)

.1590" - .3346"
(4.039mm - 8.500mm)
GENERAL PURPOSE DRILLS DRILLS EDP# Diameter Overall Flute

d
†
l2
l1
Length
.1590
19290
4.039
2-1/8"
4.089
1-1/16"
.1610
#20
19295
2-1/8"
#19
1-1/16"
.1660
19300 Decimal #21 Metric Length 1-1/16"
4.216
2-1/8"
19305 .1695 #18 4.305 2-1/8" 1-1/16"
19310 .1719 11/64" 4.366 2-1/8" 1-1/16"
19315 .1730 #17 4.394 2-3/16" 1-1/8"
19320 .1770 #16 4.496 2-3/16" 1-1/8"
19325 .1772 4.500 56 29
19330 .1800 #15 4.572 2-3/16" 1-1/8"
19335 .1820 #14 4.623 2-3/16" 1-1/8"
19340 .1850 #13 4.700 2-3/16" 1-1/8"
19345 .1875 3/16" 4.763 2-3/16" 1-1/8"
19350 .1890 #12 4.801 2-1/4" 1-3/16"
19355 .1910 #11 4.851 2-1/4" 1-3/16"
19360 .1935 #10 4.915 2-1/4" 1-3/16"
19365 .1960 #9 4.978 2-1/4" 1-3/16"
19370 .1969 5.000 57 30
19375 .1990 #8 5.055 2-1/4" 1-3/16"
19380 .2010 #7 5.105 2-1/4" 1-3/16"
19385 .2031 13/64" 5.159 2-1/4" 1-3/16"
19390 .2040 #6 5.182 2-3/8" 1-1/4"
19395 .2055 #5 5.220 2-3/8" 1-1/4"
19400 .2090 #4 5.309 2-3/8" 1-1/4"
19405 .2130 #3 5.410 2-3/8" 1-1/4"
19410 .2165 5.500 60 32
19415 .2188 7/32" 5.558 2-3/8" 1-1/4"
19420 .2210 #2 5.613 2-7/16" 1-5/16"
19425 .2280 #1 5.791 2-7/16" 1-5/16"
19430 .2340 A 5.944 2-7/16" 1-5/16"
19435 .2344 15/64" 5.954 2-7/16" 1-5/16"
19440 .2362 6.000 64 35
19445 .2380 B 6.045 2-1/2" 1-3/8"
19450 .2420 C 6.147 2-1/2" 1-3/8"
19455 .2460 D 6.248 2-1/2" 1-3/8"
19460 .2500 1/4" / E 6.350 2-1/2" 1-3/8"
19465 .2559 6.500 67 37
19470 .2570 F 6.528 2-5/8" 1-7/16"
19475 .2610 G 6.629 2-5/8" 1-7/16"
19480 .2656 17/64" 6.746 2-5/8" 1-7/16"
19485 .2660 H 6.756 2-11/16" 1-1/2"
19490 .2720 I 6.909 2-11/16" 1-1/2"
19495 .2756 7.000 68 38
19500 .2770 J 7.036 2-11/16" 1-1/2"
19505 .2810 K 7.137 2-11/16" 1-1/2"
19510 .2812 9/32" 7.142 2-11/16" 1-1/2"
19515 .2900 L 7.366 2-3/4" 1-9/16"
19520 .2950 M 7.493 2-3/4" 1-9/16"
19525 .2953 7.500 70 40
19530 .2969 19/64" 7.541 2-3/4" 1-9/16"
19535 .3020 N 7.671 2-15/16" 1-5/8"
19540 .3125 5/16" 7.938 2-15/16" 1-5/8"
19545 .3150 8.000 75 43
19550 .3160 O 8.026 2-15/16" 1-11/16"
19555 .3230 P 8.204 2-15/16" 1-11/16"
19560 .3281 21/64" 8.334 2-15/16" 1-11/16"
19565 .3320 Q 8.433 3" 1-11/16"
19570 .3346 8.500 76 43

62 www.garrtool.com ® ® ® † Metric equivalents are for reference only
