P. 61

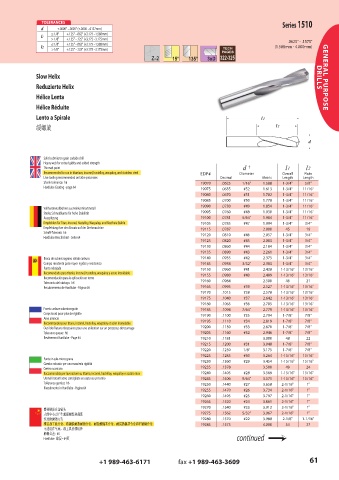

TOLERANCES                                                                          Series 1510
                d    +.0000" –.0005" (+.0000 –.0127mm)
                   ≤ 1/8"  +.125" –.062" (+3.175 –1.588mm)
               l1
                   > 1/8"  +.125" –.125" (+3.175 –3.175mm)                                            .0625" - .1575"
                   ≤ 1/8"  +.125" –.062" (+3.175 –1.588mm)
               l2                                                                                (1.588mm - 4.000mm)
                   >1/8"  +.125" –.125" (+3.175 –3.175mm)
                                                                          3xD  322-325

              Slow Helix                                                                                        DRILLS  GENERAL PURPOSE
              Reduzierte Helix
              Hélice Lenta
              Hélice Réduite

              Lento a Spirale
              缓螺旋
              缓螺旋




                Solid submicron grain carbide drill
                Heavy web for extra rigidity and added strength
                Thinned point                                                         d  †           l1     l2
                Recommended to run in titanium, inconel, hastelloy, waspaloy, and stainless steel  EDP#  Diameter  Overall  Flute
                Live tooling recommended on lathe processes                   Decimal        Metric  Length  Length
                Shank tolerance:  h6                                   19070   .0625  1/16"  1.588  1-3/4"  5/8"
                Hardlube Coating - page 64                             19075   .0635   #52   1.613  1-3/4"  11/16"
                                                                       19080   .0670   #51   1.702  1-3/4"  11/16"
                                                                       19085   .0700   #50   1.778  1-3/4"  11/16"
                                                                       19090   .0730   #49   1.854  1-3/4"  11/16"
                Vollhartmetallbohrer aus Feinkornhartmetall
                Starke Schneidkante für hohe Stabilität                19095   .0760   #48   1.930  1-3/4"  11/16"
                Ausspitzung                                            19100   .0781  5/64"  1.984  1-3/4"  11/16"
                Empfohlen für Titan, Inconel, Hastelloy, Waspaloy, und Rostfreie Stähle  19105  .0785  #47  1.994  1-3/4"  3/4"
                Empfehlung fuer den Einsatz auf der Drehmaschine       19115   .0787         2.000   45      19
                Schaft-Toleranz:  h6                                   19120   .0810   #46   2.057  1-3/4"  3/4"
                Hardlube-Beschichtet - Seite 64
                                                                       19125   .0820   #45   2.083  1-3/4"  3/4"
                                                                       19130   .0860   #44   2.184  1-3/4"  3/4"
                                                                       19135   .0890   #43   2.261  1-3/4"  3/4"
                Broca de submicrograno sólido carburo                  19140   .0935   #42   2.375  1-3/4"  3/4"
                Cuerpo resistente para mayor rigidez y resistencia     19145   .0938  3/32"  2.383  1-3/4"  3/4"
                Punta rebajada                                         19150   .0960   #41   2.438  1-13/16"  13/16"
                Recomendado para titanio, inconel, hastelloy, waspaloy y acero inoxidable  19155  .0980  #40  2.489  1-13/16"  13/16"
                Recomendación para la aplicación en torno
                Tolerancia del vástago:  h6                            19160   .0984         2.500   46      21
                Recubrimiento de Hardlube - Página 64                  19165   .0995   #39   2.527  1-13/16"  13/16"
                                                                       19170   .1015   #38   2.578  1-13/16"  13/16"
                                                                       19175   .1040   #37   2.642  1-13/16"  13/16"
                                                                       19180   .1065   #36   2.705  1-13/16"  13/16"
                Forets carbure submicrograin                           19185   .1094  7/64"  2.779  1-13/16"  13/16"
                Corps lourd pour plus de rigidite                      19190   .1100   #35   2.794  1-7/8"  7/8"
                Ame amincie
                Recommander pour titane, inconel, hastelloy, waspaloy et acier inoxydable  19195  .1110  #34  2.819  1-7/8"  7/8"
                Outil de filature nécessaires pour une utilisation sur un processus de tournage  19200  .1130  #33  2.870  1-7/8"  7/8"
                Tolerance queue:  h6                                   19205   .1160   #32   2.946  1-7/8"  7/8"
                Revêtement Hardlube - Page 64                          19210   .1181         3.000   48      22
                                                                       19215   .1200   #31   3.048  1-7/8"  7/8"
                                                                       19220   .1250  1/8"   3.175  1-7/8"  7/8"
                                                                       19225   .1285   #30   3.264  1-15/16"  15/16"
                Punte in sub-micro grana
                Gambo robusto per una massimia rigidità                19230   .1360   #29   3.454  1-15/16"  15/16"
                Centro scaricato                                       19235   .1378         3.500   49      24
                Raccomandata per lavorazioni su titanio, inconel, hastelloy, waspaloy e acciaio inox  19240  .1405  #28  3.569  1-15/16"  15/16"
                Utensili rotanti sono consigliate se usato su un tornio  19245  .1406  9/64"  3.571  1-15/16"  15/16"
                Tolleranza gambo:  h6                                  19250   .1440   #27   3.658  2-1/16"  1"
                Rivestimento in Hardlube - Pagina 64
                                                                       19255   .1470   #26   3.734  2-1/16"  1"
                                                                       19260   .1495   #25   3.797  2-1/16"  1"
                                                                       19265   .1520   #24   3.861  2-1/16"  1"
                                                                       19270   .1540   #23   3.912  2-1/16"  1"
                整体硬质合金钻头
                大的中心刃产生超强刚性和强度                                         19275   .1562  5/32"  3.967  2-1/16"  1"
                经过修磨的刀尖                                                19280   .1570   #22   3.988  2-1/8"  1-1/16"
                推荐加工钛合金、铬镍铁耐热耐蚀合金、耐盐酸镍基合金、耐高热镍基合金和不锈钢合金                19285   .1575         4.000   54      27
                不建议在车床,或工具必须纺纱
                柄部公差:  h6
                Hardlube 涂层 - 64页                                                   continued              ?


                                    +1 989-463-6171                    fax +1 989-463-3609                    61
