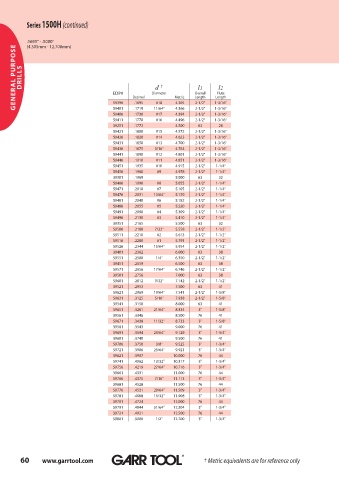

Page 60 - GARR_TOOL(CATALOG_INT)

Series 1500H (continued)

.1695" - .5000"
(4.305mm - 12.700mm)
GENERAL PURPOSE DRILLS EDP# Diameter Overall Flute

d
†
l2
l1
Length
.1695
4.305
2-1/2"
#18
59396
4.366
1-3/16"
.1719
59401
2-1/2"
1-3/16"
#17
.1730
59406 Decimal 11/64" Metric Length 1-3/16"
4.394
2-1/2"
59411 .1770 #16 4.496 2-1/2" 1-3/16"
39251 .1772 4.500 63 28
59421 .1800 #15 4.572 2-1/2" 1-3/16"
59426 .1820 #14 4.623 2-1/2" 1-3/16"
59431 .1850 #13 4.700 2-1/2" 1-3/16"
59436 .1875 3/16" 4.763 2-1/2" 1-3/16"
59441 .1890 #12 4.801 2-1/2" 1-3/16"
59446 .1910 #11 4.851 2-1/2" 1-3/16"
59451 .1935 #10 4.915 2-1/2" 1-1/4"
59456 .1960 #9 4.978 2-1/2" 1-1/4"
39301 .1969 5.000 63 32
59466 .1990 #8 5.055 2-1/2" 1-1/4"
59471 .2010 #7 5.105 2-1/2" 1-1/4"
59476 .2031 13/64" 5.159 2-1/2" 1-1/4"
59481 .2040 #6 5.182 2-1/2" 1-1/4"
59486 .2055 #5 5.220 2-1/2" 1-1/4"
59491 .2090 #4 5.309 2-1/2" 1-1/4"
59496 .2130 #3 5.410 2-1/2" 1-1/4"
39351 .2165 5.500 63 32
59506 .2188 7/32" 5.558 2-1/2" 1-1/2"
59511 .2210 #2 5.613 2-1/2" 1-1/2"
59516 .2280 #1 5.791 2-1/2" 1-1/2"
59526 .2344 15/64" 5.954 2-1/2" 1-1/2"
39401 .2362 6.000 63 38
59551 .2500 1/4" 6.350 2-1/2" 1-1/2"
39451 .2559 6.500 63 38
59571 .2656 17/64" 6.746 2-1/2" 1-1/2"
39501 .2756 7.000 63 38
59601 .2812 9/32" 7.142 2-1/2" 1-1/2"
39521 .2953 7.500 63 41
59621 .2969 19/64" 7.541 2-1/2" 1-5/8"
59631 .3125 5/16" 7.938 2-1/2" 1-5/8"
39541 .3150 8.000 63 41
59651 .3281 21/64" 8.334 3" 1-5/8"
39561 .3346 8.500 76 41
59671 .3438 11/32" 8.733 3" 1-5/8"
39581 .3543 9.000 76 41
59691 .3594 23/64" 9.129 3" 1-3/4"
39601 .3740 9.500 76 41
59706 .3750 3/8" 9.525 3" 1-3/4"
59721 .3906 25/64" 9.921 3" 1-3/4"
39621 .3937 10.000 76 44
59741 .4062 13/32" 10.317 3" 1-3/4"
59756 .4219 27/64" 10.716 3" 1-3/4"
39661 .4331 11.000 76 44
59766 .4375 7/16" 11.113 3" 1-3/4"
39681 .4528 11.500 76 44
59776 .4531 29/64" 11.509 3" 1-3/4"
59781 .4688 15/32" 11.908 3" 1-3/4"
39701 .4724 12.000 76 44
59791 .4844 31/64" 12.304 3" 1-3/4"
39721 .4921 12.500 76 44
59801 .5000 1/2" 12.700 3" 1-3/4"
