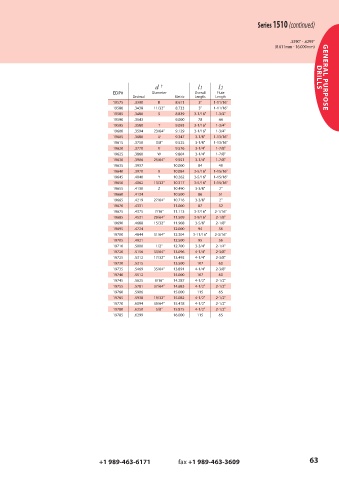

Page 63 - GARR_TOOL(CATALOG_INT)

Series 1510 (continued)

.3390" - .6299"
(8.611mm - 16.000mm)

d † l1 l2 DRILLS GENERAL PURPOSE
EDP# Diameter Overall Flute
Decimal Metric Length Length
19575 .3390 R 8.611 3" 1-11/16"
19580 .3438 11/32" 8.733 3" 1-11/16"
19585 .3480 S 8.839 3-1/16" 1-3/4"
19590 .3543 9.000 78 44
19595 .3580 T 9.093 3-1/16" 1-3/4"
19600 .3594 23/64" 9.129 3-1/16" 1-3/4"
19605 .3680 U 9.347 3-1/8" 1-13/16"
19615 .3750 3/8" 9.525 3-1/8" 1-13/16"
19620 .3770 V 9.576 3-1/4" 1-7/8"
19625 .3860 W 9.804 3-1/4" 1-7/8"
19630 .3906 25/64" 9.921 3-1/4" 1-7/8"
19635 .3937 10.000 84 49
19640 .3970 X 10.084 3-5/16" 1-15/16"
19645 .4040 Y 10.262 3-5/16" 1-15/16"
19650 .4062 13/32" 10.317 3-5/16" 1-15/16"
19655 .4130 Z 10.490 3-3/8" 2"
19660 .4134 10.500 86 51
19665 .4219 27/64" 10.716 3-3/8" 2"
19670 .4331 11.000 87 52
19675 .4375 7/16" 11.113 3-7/16" 2-1/16"
19685 .4531 29/64" 11.509 3-9/16" 2-1/8"
19690 .4688 15/32" 11.908 3-5/8" 2-1/8"
19695 .4724 12.000 94 56
19700 .4844 31/64" 12.304 3-11/16" 2-3/16"
19705 .4921 12.500 95 56
19710 .5000 1/2" 12.700 3-3/4" 2-1/4"
19720 .5156 33/64" 13.096 4-1/4" 2-3/8"
19725 .5312 17/32" 13.492 4-1/4" 2-3/8"
19730 .5315 13.500 107 60
19735 .5469 35/64" 13.891 4-1/4" 2-3/8"
19740 .5512 14.000 107 60
19745 .5625 9/16" 14.287 4-1/2" 2-1/2"
19755 .5781 37/64" 14.683 4-1/2" 2-1/2"
19760 .5906 15.000 115 65
19765 .5938 19/32" 15.082 4-1/2" 2-1/2"
19770 .6094 39/64" 15.478 4-1/2" 2-1/2"
19780 .6250 5/8" 15.875 4-1/2" 2-1/2"
19785 .6299 16.000 115 65
