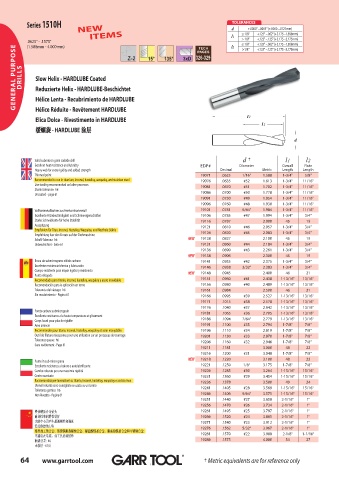

Page 64 - GARR_TOOL(CATALOG_INT)
P. 64

Series 1510H                                                             TOLERANCES
                            NEW                                                   d     +.0000" –.0005" (+.0000 –.0127mm)
                            NEW
                                 ITEMS
                                 ITEMS                                            l1  ≤ 1/8"  +.125" –.062" (+3.175 –1.588mm)
          .0625" - .1575"                                        3xD  326-329     l2  > 1/8"  +.125" –.125" (+3.175 –3.175mm)
                                                                                           +.125" –.062" (+3.175 –1.588mm)
                                                                                      ≤ 1/8"
          (1.588mm - 4.000mm)
      GENERAL PURPOSE  DRILLS  Slow Helix - HARDLUBE Coated
                                                                                      >1/8"
                                                                                           +.125" –.125" (+3.175 –3.175mm)

              Reduzierte Helix - HARDLUBE-Beschichtet

              Hélice Lenta - Recubrimiento de HARDLUBE
              Hélice Réduite - Revêtement HARDLUBE
              Elica Dolce - Rivestimento in HARDLUBE

              缓螺旋             涂层
              缓螺旋 - HARDLUBE 涂层




             Solid submicron grain carbide drill                                      d  †           l1     l2
             Excellent heat resistance and lubricity                   EDP#          Diameter       Overall  Flute
             Heavy web for extra rigidity and added strength                  Decimal        Metric  Length  Length
             Thinned point                                             19071   .0625  1/16"  1.588  1-3/4"  5/8"
             Recommended to run in titanium, inconel, hastelloy, waspaloy, and stainless steel  19076  .0635  #52  1.613  1-3/4"  11/16"
             Live tooling recommended on lathe processes               19081   .0670   #51   1.702  1-3/4"  11/16"
             Shank tolerance:  h6
             Uncoated - page 61                                        19086   .0700   #50   1.778  1-3/4"  11/16"
                                                                       19091   .0730   #49   1.854  1-3/4"  11/16"
                                                                       19096   .0760   #48   1.930  1-3/4"  11/16"
             Vollhartmetallbohrer aus Feinkornhartmetall               19101   .0781  5/64"  1.984  1-3/4"  11/16"
             Exzellente Hitzebeständigkeit und Schmiereigenschaften    19106   .0785   #47   1.994  1-3/4"  3/4"
             Starke Schneidkante für hohe Stabilität                   19116   .0787         2.000   45      19
             Ausspitzung                                               19121   .0810   #46   2.057  1-3/4"  3/4"
             Empfohlen für Titan, Inconel, Hastelloy, Waspaloy, und Rostfreie Stähle
             Empfehlung fuer den Einsatz auf der Drehmaschine          19126   .0820   #45   2.083  1-3/4"  3/4"
             Schaft-Toleranz:  h6                                  NEW  19128  .0827         2.100   45      19
             Unbeschichtet - Seite 61                                  19131   .0860   #44   2.184  1-3/4"  3/4"
                                                                       19136   .0890   #43   2.261  1-3/4"  3/4"
                                                                   NEW  19138  .0906         2.300   45      19
             Broca de submicrograno sólido carburo                     19141   .0935   #42   2.375  1-3/4"  3/4"
             Excelente resistencia térmica y lubricación               19146   .0938  3/32"  2.383  1-3/4"  3/4"
             Cuerpo resistente para mayor rigidez y resistencia    NEW
             Punta rebajada                                            19148   .0945         2.400   46      21
             Recomendado para titanio, inconel, hastelloy, waspaloy y acero inoxidable  19151  .0960  #41  2.438  1-13/16"  13/16"
             Recomendación para la aplicación en torno                 19156   .0980   #40   2.489  1-13/16"  13/16"
             Tolerancia del vástago:  h6                               19161   .0984         2.500   46      21
             Sin recubrimiento - Página 61                             19166   .0995   #39   2.527  1-13/16"  13/16"
                                                                       19171   .1015   #38   2.578  1-13/16"  13/16"
                                                                       19176   .1040   #37   2.642  1-13/16"  13/16"
             Forets carbure submicrograin                              19181   .1065   #36   2.705  1-13/16"  13/16"
             Excellente resistance a la haute temperature et glissement
             Corps lourd pour plus de rigidite                         19186   .1094  7/64"  2.779  1-13/16"  13/16"
             Ame amincie                                               19191   .1100   #35   2.794  1-7/8"  7/8"
             Recommander pour titane, inconel, hastelloy, waspaloy et acier inoxydable  19196  .1110  #34  2.819  1-7/8"  7/8"
             Outil de filature nécessaires pour une utilisation sur un processus de tournage  19201  .1130  #33  2.870  1-7/8"  7/8"
             Tolerance queue:  h6                                      19206   .1160   #32   2.946  1-7/8"  7/8"
             Sans revêtement - Page 61
                                                                       19211   .1181         3.000   48      22
                                                                       19216   .1200   #31   3.048  1-7/8"  7/8"
                                                                   NEW  19218  .1220         3.100   48      22
             Punte in sub-micro grana
             Eccellente resistenza al calore e autolubrificante        19221   .1250  1/8"   3.175  1-7/8"  7/8"
             Gambo robusto per una massimia rigidità                   19226   .1285   #30   3.264  1-15/16"  15/16"
             Centro scaricato                                          19231   .1360   #29   3.454  1-15/16"  15/16"
             Raccomandata per lavorazioni su titanio, inconel, hastelloy, waspaloy e acciaio inox  19236  .1378  3.500  49  24
             Utensili rotanti sono consigliate se usato su un tornio   19241   .1405   #28   3.569  1-15/16"  15/16"
             Tolleranza gambo:  h6
             Non Rivestito - Pagina 61                                 19246   .1406  9/64"  3.571  1-15/16"  15/16"
                                                                       19251   .1440   #27   3.658  2-1/16"  1"
                                                                       19256   .1470   #26   3.734  2-1/16"  1"
             整体硬质合金钻头                                                  19261   .1495   #25   3.797  2-1/16"  1"
             耐热性和润滑性特好                                                 19266   .1520   #24   3.861  2-1/16"  1"
             大的中心刃产生超强刚性和强度                                            19271   .1540   #23   3.912  2-1/16"  1"
             经过修磨的刀尖                                                   19276   .1562  5/32"  3.967  2-1/16"  1"
             推荐加工钛合金、铬镍铁耐热耐蚀合金、耐盐酸镍基合金、耐高热镍基合金和不锈钢合金
             不建议在车床,或工具必须纺纱                                            19281   .1570   #22   3.988  2-1/8"  1-1/16"
             柄部公差:  h6                                                 19286   .1575         4.000   54      27
             未涂层 - 61页

        64      www.garrtool.com                                 ® ® ®   †  Metric equivalents are for reference only
