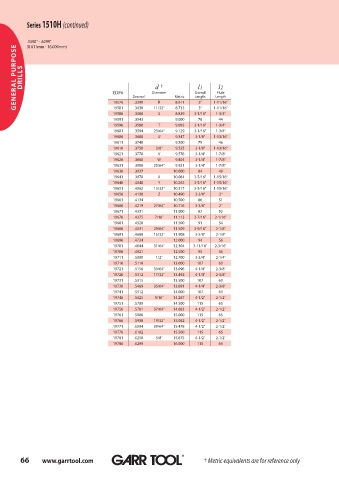

Page 66 - GARR_TOOL(CATALOG_INT)

Series 1510H (continued)

.3390" - .6299"
(8.611mm - 16.000mm)
GENERAL PURPOSE DRILLS EDP# Diameter Overall Flute

d
†
l1
l2
Length
Length
R
3"
19576
.3390
8.611
1-11/16"
3"
.3438
19581
8.733
1-3/4"
S
.3480
19586 Decimal 11/32" Metric 3-1/16" 1-11/16"
8.839
19591 .3543 9.000 78 44
19596 .3580 T 9.093 3-1/16" 1-3/4"
19601 .3594 23/64" 9.129 3-1/16" 1-3/4"
19606 .3680 U 9.347 3-1/8" 1-13/16"
19611 .3740 9.500 79 46
19616 .3750 3/8" 9.525 3-1/8" 1-13/16"
19621 .3770 V 9.576 3-1/4" 1-7/8"
19626 .3860 W 9.804 3-1/4" 1-7/8"
19631 .3906 25/64" 9.921 3-1/4" 1-7/8"
19636 .3937 10.000 84 49
19641 .3970 X 10.084 3-5/16" 1-15/16"
19646 .4040 Y 10.262 3-5/16" 1-15/16"
19651 .4062 13/32" 10.317 3-5/16" 1-15/16"
19656 .4130 Z 10.490 3-3/8" 2"
19661 .4134 10.500 86 51
19666 .4219 27/64" 10.716 3-3/8" 2"
19671 .4331 11.000 87 52
19676 .4375 7/16" 11.113 3-7/16" 2-1/16"
19681 .4528 11.500 91 54
19686 .4531 29/64" 11.509 3-9/16" 2-1/8"
19691 .4688 15/32" 11.908 3-5/8" 2-1/8"
19696 .4724 12.000 94 56
19701 .4844 31/64" 12.304 3-11/16" 2-3/16"
19706 .4921 12.500 95 56
19711 .5000 1/2" 12.700 3-3/4" 2-1/4"
19716 .5118 13.000 107 60
19721 .5156 33/64" 13.096 4-1/4" 2-3/8"
19726 .5312 17/32" 13.492 4-1/4" 2-3/8"
19731 .5315 13.500 107 60
19736 .5469 35/64" 13.891 4-1/4" 2-3/8"
19741 .5512 14.000 107 60
19746 .5625 9/16" 14.287 4-1/2" 2-1/2"
19751 .5709 14.500 115 65
19756 .5781 37/64" 14.683 4-1/2" 2-1/2"
19761 .5906 15.000 115 65
19766 .5938 19/32" 15.082 4-1/2" 2-1/2"
19771 .6094 39/64" 15.478 4-1/2" 2-1/2"
19776 .6102 15.500 115 65
19781 .6250 5/8" 15.875 4-1/2" 2-1/2"
19786 .6299 16.000 115 65

66 www.garrtool.com ® ® ® † Metric equivalents are for reference only
