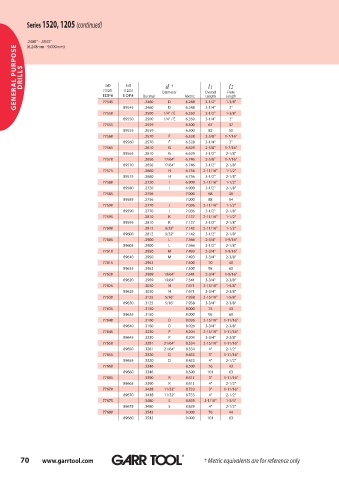

Page 70 - GARR_TOOL(CATALOG_INT)

Series 1520, 1205 (continued)

.2460" - .3543"
(6.248mm - 9.000mm)
GENERAL PURPOSE DRILLS EDP# EDP# Diameter Overall Flute

d
5xD
†
3xD
l1
l2
(1205)
(1520)
D
2-1/2"
1-3/8"
77545
.2460
6.248
D
6.248
.2460
2"
3-1/4"
.2500
1-3/8"
77550 89545 Decimal 1/4" / E Metric Length Length
6.350
2-1/2"
89550 .2500 1/4" / E 6.350 3-1/4" 2"
77555 .2559 6.500 67 37
89555 .2559 6.500 82 50
77560 .2570 F 6.528 2-5/8" 1-7/16"
89560 .2570 F 6.528 3-1/4" 2"
77565 .2610 G 6.629 2-5/8" 1-7/16"
89565 .2610 G 6.629 3-1/2" 2-1/8"
77570 .2656 17/64" 6.746 2-5/8" 1-7/16"
89570 .2656 17/64" 6.746 3-1/2" 2-1/8"
77575 .2660 H 6.756 2-11/16" 1-1/2"
89575 .2660 H 6.756 3-1/2" 2-1/8"
77580 .2720 I 6.909 2-11/16" 1-1/2"
89580 .2720 I 6.909 3-1/2" 2-1/8"
77585 .2756 7.000 68 38
89585 .2756 7.000 88 54
77590 .2770 J 7.036 2-11/16" 1-1/2"
89590 .2770 J 7.036 3-1/2" 2-1/8"
77595 .2810 K 7.137 2-11/16" 1-1/2"
89595 .2810 K 7.137 3-1/2" 2-1/8"
77600 .2812 9/32" 7.142 2-11/16" 1-1/2"
89600 .2812 9/32" 7.142 3-1/2" 2-1/8"
77605 .2900 L 7.366 2-3/4" 1-9/16"
89605 .2900 L 7.366 3-1/2" 2-1/8"
77610 .2950 M 7.493 2-3/4" 1-9/16"
89610 .2950 M 7.493 3-3/4" 2-3/8"
77615 .2953 7.500 70 40
89615 .2953 7.500 95 60
77620 .2969 19/64" 7.541 2-3/4" 1-9/16"
89620 .2969 19/64" 7.541 3-3/4" 2-3/8"
77625 .3020 N 7.671 2-15/16" 1-5/8"
89625 .3020 N 7.671 3-3/4" 2-3/8"
77630 .3125 5/16" 7.938 2-15/16" 1-5/8"
89630 .3125 5/16" 7.938 3-3/4" 2-3/8"
77635 .3150 8.000 75 43
89635 .3150 8.000 95 60
77640 .3160 O 8.026 2-15/16" 1-11/16"
89640 .3160 O 8.026 3-3/4" 2-3/8"
77645 .3230 P 8.204 2-15/16" 1-11/16"
89645 .3230 P 8.204 3-3/4" 2-3/8"
77650 .3281 21/64" 8.334 2-15/16" 1-11/16"
89650 .3281 21/64" 8.334 4" 2-1/2"
77655 .3320 Q 8.433 3" 1-11/16"
89655 .3320 Q 8.433 4" 2-1/2"
77660 .3346 8.500 76 43
89660 .3346 8.500 101 63
77665 .3390 R 8.611 3" 1-11/16"
89665 .3390 R 8.611 4" 2-1/2"
77670 .3438 11/32" 8.733 3" 1-11/16"
89670 .3438 11/32" 8.733 4" 2-1/2"
77675 .3480 S 8.839 3-1/16" 1-3/4"
89675 .3480 S 8.839 4" 2-1/2"
77680 .3543 9.000 78 44
89680 .3543 9.000 101 63

70 www.garrtool.com ® ® ® † Metric equivalents are for reference only
