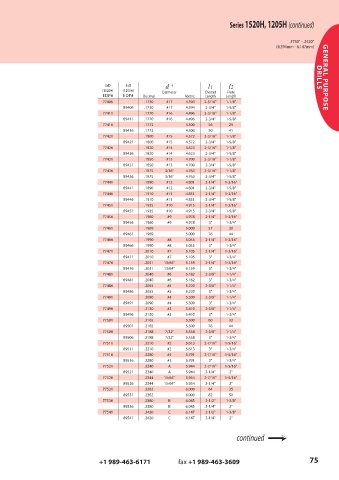

Page 75 - GARR_TOOL(CATALOG_INT)

Series 1520H, 1205H (continued)

.1730" - .2420"
(4.394mm - 6.147mm)

3xD 5xD d † l1 l2 DRILLS GENERAL PURPOSE
(1520H) (1205H) Diameter Overall Flute
EDP# EDP# Decimal Metric Length Length
77406 .1730 #17 4.394 2-3/16" 1-1/8"
89406 .1730 #17 4.394 2-3/4" 1-5/8"
77411 .1770 #16 4.496 2-3/16" 1-1/8"
89411 .1770 #16 4.496 2-3/4" 1-5/8"
77416 .1772 4.500 56 29
89416 .1772 4.500 70 41
77421 .1800 #15 4.572 2-3/16" 1-1/8"
89421 .1800 #15 4.572 2-3/4" 1-5/8"
77426 .1820 #14 4.623 2-3/16" 1-1/8"
89426 .1820 #14 4.623 2-3/4" 1-5/8"
77431 .1850 #13 4.700 2-3/16" 1-1/8"
89431 .1850 #13 4.700 2-3/4" 1-5/8"
77436 .1875 3/16" 4.763 2-3/16" 1-1/8"
89436 .1875 3/16" 4.763 2-3/4" 1-5/8"
77441 .1890 #12 4.801 2-1/4" 1-3/16"
89441 .1890 #12 4.801 2-3/4" 1-5/8"
77446 .1910 #11 4.851 2-1/4" 1-3/16"
89446 .1910 #11 4.851 2-3/4" 1-5/8"
77451 .1935 #10 4.915 2-1/4" 1-3/16"
89451 .1935 #10 4.915 2-3/4" 1-5/8"
77456 .1960 #9 4.978 2-1/4" 1-3/16"
89456 .1960 #9 4.978 3" 1-3/4"
77461 .1969 5.000 57 30
89461 .1969 5.000 76 44
77466 .1990 #8 5.055 2-1/4" 1-3/16"
89466 .1990 #8 5.055 3" 1-3/4"
77471 .2010 #7 5.105 2-1/4" 1-3/16"
89471 .2010 #7 5.105 3" 1-3/4"
77476 .2031 13/64" 5.159 2-1/4" 1-3/16"
89476 .2031 13/64" 5.159 3" 1-3/4"
77481 .2040 #6 5.182 2-3/8" 1-1/4"
89481 .2040 #6 5.182 3" 1-3/4"
77486 .2055 #5 5.220 2-3/8" 1-1/4"
89486 .2055 #5 5.220 3" 1-3/4"
77491 .2090 #4 5.309 2-3/8" 1-1/4"
89491 .2090 #4 5.309 3" 1-3/4"
77496 .2130 #3 5.410 2-3/8" 1-1/4"
89496 .2130 #3 5.410 3" 1-3/4"
77501 .2165 5.500 60 32
89501 .2165 5.500 76 44
77506 .2188 7/32" 5.558 2-3/8" 1-1/4"
89506 .2188 7/32" 5.558 3" 1-3/4"
77511 .2210 #2 5.613 2-7/16" 1-5/16"
89511 .2210 #2 5.613 3" 1-3/4"
77516 .2280 #1 5.791 2-7/16" 1-5/16"
89516 .2280 #1 5.791 3" 1-3/4"
77521 .2340 A 5.944 2-7/16" 1-5/16"
89521 .2340 A 5.944 3-1/4" 2"
77526 .2344 15/64" 5.954 2-7/16" 1-5/16"
89526 .2344 15/64" 5.954 3-1/4" 2"
77531 .2362 6.000 64 35
89531 .2362 6.000 82 50
77536 .2380 B 6.045 2-1/2" 1-3/8"
89536 .2380 B 6.045 3-1/4" 2"
77541 .2420 C 6.147 2-1/2" 1-3/8"
89541 .2420 C 6.147 3-1/4" 2"

continued ?
