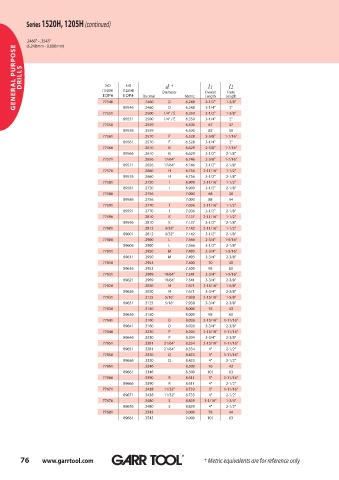

Page 76 - GARR_TOOL(CATALOG_INT)

Series 1520H, 1205H (continued)

.2460" - .3543"
(6.248mm - 9.000mm)
GENERAL PURPOSE DRILLS (1520H) (1205H) Diameter Overall Flute

d
5xD
†
3xD
l2
l1
EDP#
EDP#
2-1/2"
.2460
D
6.248
1-3/8"
77546
D
.2460
6.248
2"
3-1/4"
.2500
77551 89546 Decimal 1/4" / E Metric Length Length
1-3/8"
6.350
2-1/2"
89551 .2500 1/4" / E 6.350 3-1/4" 2"
77556 .2559 6.500 67 37
89556 .2559 6.500 82 50
77561 .2570 F 6.528 2-5/8" 1-7/16"
89561 .2570 F 6.528 3-1/4" 2"
77566 .2610 G 6.629 2-5/8" 1-7/16"
89566 .2610 G 6.629 3-1/2" 2-1/8"
77571 .2656 17/64" 6.746 2-5/8" 1-7/16"
89571 .2656 17/64" 6.746 3-1/2" 2-1/8"
77576 .2660 H 6.756 2-11/16" 1-1/2"
89576 .2660 H 6.756 3-1/2" 2-1/8"
77581 .2720 I 6.909 2-11/16" 1-1/2"
89581 .2720 I 6.909 3-1/2" 2-1/8"
77586 .2756 7.000 68 38
89586 .2756 7.000 88 54
77591 .2770 J 7.036 2-11/16" 1-1/2"
89591 .2770 J 7.036 3-1/2" 2-1/8"
77596 .2810 K 7.137 2-11/16" 1-1/2"
89596 .2810 K 7.137 3-1/2" 2-1/8"
77601 .2812 9/32" 7.142 2-11/16" 1-1/2"
89601 .2812 9/32" 7.142 3-1/2" 2-1/8"
77606 .2900 L 7.366 2-3/4" 1-9/16"
89606 .2900 L 7.366 3-1/2" 2-1/8"
77611 .2950 M 7.493 2-3/4" 1-9/16"
89611 .2950 M 7.493 3-3/4" 2-3/8"
77616 .2953 7.500 70 40
89616 .2953 7.500 95 60
77621 .2969 19/64" 7.541 2-3/4" 1-9/16"
89621 .2969 19/64" 7.541 3-3/4" 2-3/8"
77626 .3020 N 7.671 2-15/16" 1-5/8"
89626 .3020 N 7.671 3-3/4" 2-3/8"
77631 .3125 5/16" 7.938 2-15/16" 1-5/8"
89631 .3125 5/16" 7.938 3-3/4" 2-3/8"
77636 .3150 8.000 75 43
89636 .3150 8.000 95 60
77641 .3160 O 8.026 2-15/16" 1-11/16"
89641 .3160 O 8.026 3-3/4" 2-3/8"
77646 .3230 P 8.204 2-15/16" 1-11/16"
89646 .3230 P 8.204 3-3/4" 2-3/8"
77651 .3281 21/64" 8.334 2-15/16" 1-11/16"
89651 .3281 21/64" 8.334 4" 2-1/2"
77656 .3320 Q 8.433 3" 1-11/16"
89656 .3320 Q 8.433 4" 2-1/2"
77661 .3346 8.500 76 43
89661 .3346 8.500 101 63
77666 .3390 R 8.611 3" 1-11/16"
89666 .3390 R 8.611 4" 2-1/2"
77671 .3438 11/32" 8.733 3" 1-11/16"
89671 .3438 11/32" 8.733 4" 2-1/2"
77676 .3480 S 8.839 3-1/16" 1-3/4"
89676 .3480 S 8.839 4" 2-1/2"
77681 .3543 9.000 78 44
89681 .3543 9.000 101 63

76 www.garrtool.com ® ® ® † Metric equivalents are for reference only
