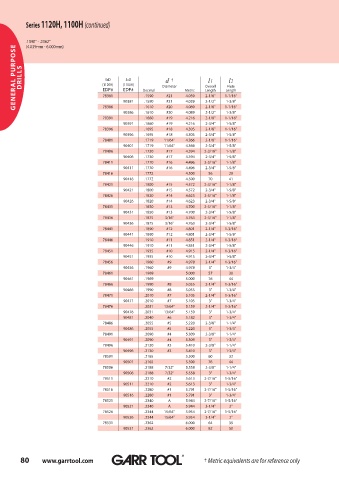

Page 80 - GARR_TOOL(CATALOG_INT)

Series 1120H, 1100H (continued)

.1590" - .2362"
(4.039mm - 6.000mm)
GENERAL PURPOSE DRILLS (1120H) (1100H) Decimal Diameter Metric Overall Length

d
3xD
5xD
†
l2
l1
Flute
EDP#
EDP#
Length
78381
4.039
2-1/2"
#21
90381
.1590
1-3/8"
1-1/16"
#20
78386
.1610
2-1/8"
4.089
2-1/2"
.1610
4.089
90386 .1590 #21 4.039 2-1/8" 1-1/16"
1-3/8"
#20
78391 .1660 #19 4.216 2-1/8" 1-1/16"
90391 .1660 #19 4.216 2-3/4" 1-5/8"
78396 .1695 #18 4.305 2-1/8" 1-1/16"
90396 .1695 #18 4.305 2-3/4" 1-5/8"
78401 .1719 11/64" 4.366 2-1/8" 1-1/16"
90401 .1719 11/64" 4.366 2-3/4" 1-5/8"
78406 .1730 #17 4.394 2-3/16" 1-1/8"
90406 .1730 #17 4.394 2-3/4" 1-5/8"
78411 .1770 #16 4.496 2-3/16" 1-1/8"
90411 .1770 #16 4.496 2-3/4" 1-5/8"
78416 .1772 4.500 56 29
90416 .1772 4.500 70 41
78421 .1800 #15 4.572 2-3/16" 1-1/8"
90421 .1800 #15 4.572 2-3/4" 1-5/8"
78426 .1820 #14 4.623 2-3/16" 1-1/8"
90426 .1820 #14 4.623 2-3/4" 1-5/8"
78431 .1850 #13 4.700 2-3/16" 1-1/8"
90431 .1850 #13 4.700 2-3/4" 1-5/8"
78436 .1875 3/16" 4.763 2-3/16" 1-1/8"
90436 .1875 3/16" 4.763 2-3/4" 1-5/8"
78441 .1890 #12 4.801 2-1/4" 1-3/16"
90441 .1890 #12 4.801 2-3/4" 1-5/8"
78446 .1910 #11 4.851 2-1/4" 1-3/16"
90446 .1910 #11 4.851 2-3/4" 1-5/8"
78451 .1935 #10 4.915 2-1/4" 1-3/16"
90451 .1935 #10 4.915 2-3/4" 1-5/8"
78456 .1960 #9 4.978 2-1/4" 1-3/16"
90456 .1960 #9 4.978 3" 1-3/4"
78461 .1969 5.000 57 30
90461 .1969 5.000 76 44
78466 .1990 #8 5.055 2-1/4" 1-3/16"
90466 .1990 #8 5.055 3" 1-3/4"
78471 .2010 #7 5.105 2-1/4" 1-3/16"
90471 .2010 #7 5.105 3" 1-3/4"
78476 .2031 13/64" 5.159 2-1/4" 1-3/16"
90476 .2031 13/64" 5.159 3" 1-3/4"
90481 .2040 #6 5.182 3" 1-3/4"
78486 .2055 #5 5.220 2-3/8" 1-1/4"
90486 .2055 #5 5.220 3" 1-3/4"
78491 .2090 #4 5.309 2-3/8" 1-1/4"
90491 .2090 #4 5.309 3" 1-3/4"
78496 .2130 #3 5.410 2-3/8" 1-1/4"
90496 .2130 #3 5.410 3" 1-3/4"
78501 .2165 5.500 60 32
90501 .2165 5.500 76 44
78506 .2188 7/32" 5.558 2-3/8" 1-1/4"
90506 .2188 7/32" 5.558 3" 1-3/4"
78511 .2210 #2 5.613 2-7/16" 1-5/16"
90511 .2210 #2 5.613 3" 1-3/4"
78516 .2280 #1 5.791 2-7/16" 1-5/16"
90516 .2280 #1 5.791 3" 1-3/4"
78521 .2340 A 5.944 2-7/16" 1-5/16"
90521 .2340 A 5.944 3-1/4" 2"
78526 .2344 15/64" 5.954 2-7/16" 1-5/16"
90526 .2344 15/64" 5.954 3-1/4" 2"
78531 .2362 6.000 64 35
90531 .2362 6.000 82 50
80 www.garrtool.com ® ® ® † Metric equivalents are for reference only
