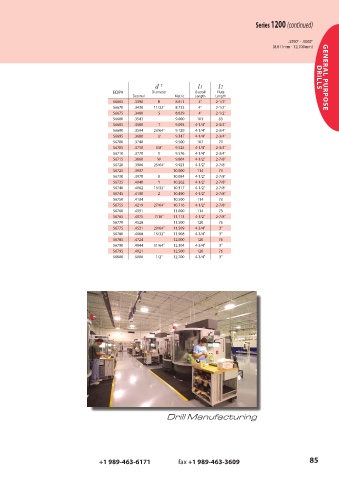

P. 85

Series 1200 (continued)


                                                                                                      .3390" - .5000"
                                                                                                 (8.611mm - 12.700mm)






                                                        d  †           l1     l2                                DRILLS  GENERAL PURPOSE
                                         EDP#         Diameter       Overall  Flute
                                                Decimal       Metric  Length  Length
                                         56665  .3390    R     8.611   4"    2-1/2"
                                         56670  .3438  11/32"  8.733   4"    2-1/2"
                                         56675  .3480    S     8.839   4"    2-1/2"
                                         56680  .3543          9.000  101     63
                                         56685  .3580    T     9.093  4-1/4"  2-3/4"
                                         56690  .3594  23/64"  9.129  4-1/4"  2-3/4"
                                         56695  .3680   U      9.347  4-1/4"  2-3/4"
                                         56700  .3740          9.500  107     70
                                         56705  .3750   3/8"   9.525  4-1/4"  2-3/4"
                                         56710  .3770    V     9.576  4-1/4"  2-3/4"
                                         56715  .3860   W      9.804  4-1/2"  2-7/8"
                                         56720  .3906  25/64"  9.921  4-1/2"  2-7/8"
                                         56725  .3937         10.000  114     73
                                         56730  .3970    X    10.084  4-1/2"  2-7/8"
                                         56735  .4040    Y    10.262  4-1/2"  2-7/8"
                                         56740  .4062  13/32"  10.317  4-1/2"  2-7/8"
                                         56745  .4130    Z    10.490  4-1/2"  2-7/8"
                                         56750  .4134         10.500  114     73
                                         56755  .4219  27/64"  10.716  4-1/2"  2-7/8"
                                         56760  .4331         11.000  114     73
                                         56765  .4375  7/16"  11.113  4-1/2"  2-7/8"
                                         56770  .4528         11.500  120     76
                                         56775  .4531  29/64"  11.509  4-3/4"  3"
                                         56780  .4688  15/32"  11.908  4-3/4"  3"
                                         56785  .4724         12.000  120     76
                                         56790  .4844  31/64"  12.304  4-3/4"  3"
                                         56795  .4921         12.500  120     76
                                         56800  .5000   1/2"  12.700  4-3/4"  3"
































                                                            Drill Manufacturing








                                    +1 989-463-6171                    fax +1 989-463-3609                    85
