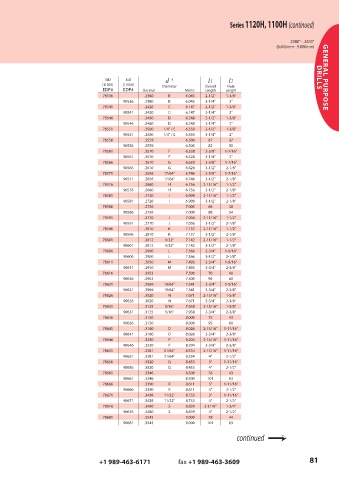

Page 81 - GARR_TOOL(CATALOG_INT)

Series 1120H, 1100H (continued)

.2380" - .3543"
(6.045mm - 9.000mm)

3xD 5xD d † l1 l2 DRILLS GENERAL PURPOSE
(1120H) (1100H) Diameter Overall Flute
EDP# EDP# Decimal Metric Length Length
78536 .2380 B 6.045 2-1/2" 1-3/8"
90536 .2380 B 6.045 3-1/4" 2"
78541 .2420 C 6.147 2-1/2" 1-3/8"
90541 .2420 C 6.147 3-1/4" 2"
78546 .2460 D 6.248 2-1/2" 1-3/8"
90546 .2460 D 6.248 3-1/4" 2"
78551 .2500 1/4" / E 6.350 2-1/2" 1-3/8"
90551 .2500 1/4" / E 6.350 3-1/4" 2"
78556 .2559 6.500 67 37
90556 .2559 6.500 82 50
78561 .2570 F 6.528 2-5/8" 1-7/16"
90561 .2570 F 6.528 3-1/4" 2"
78566 .2610 G 6.629 2-5/8" 1-7/16"
90566 .2610 G 6.629 3-1/2" 2-1/8"
78571 .2656 17/64" 6.746 2-5/8" 1-7/16"
90571 .2656 17/64" 6.746 3-1/2" 2-1/8"
78576 .2660 H 6.756 2-11/16" 1-1/2"
90576 .2660 H 6.756 3-1/2" 2-1/8"
78581 .2720 I 6.909 2-11/16" 1-1/2"
90581 .2720 I 6.909 3-1/2" 2-1/8"
78586 .2756 7.000 68 38
90586 .2756 7.000 88 54
78591 .2770 J 7.036 2-11/16" 1-1/2"
90591 .2770 J 7.036 3-1/2" 2-1/8"
78596 .2810 K 7.137 2-11/16" 1-1/2"
90596 .2810 K 7.137 3-1/2" 2-1/8"
78601 .2812 9/32" 7.142 2-11/16" 1-1/2"
90601 .2812 9/32" 7.142 3-1/2" 2-1/8"
78606 .2900 L 7.366 2-3/4" 1-9/16"
90606 .2900 L 7.366 3-1/2" 2-1/8"
78611 .2950 M 7.493 2-3/4" 1-9/16"
90611 .2950 M 7.493 3-3/4" 2-3/8"
78616 .2953 7.500 70 40
90616 .2953 7.500 95 60
78621 .2969 19/64" 7.541 2-3/4" 1-9/16"
90621 .2969 19/64" 7.541 3-3/4" 2-3/8"
78626 .3020 N 7.671 2-15/16" 1-5/8"
90626 .3020 N 7.671 3-3/4" 2-3/8"
78631 .3125 5/16" 7.938 2-15/16" 1-5/8"
90631 .3125 5/16" 7.938 3-3/4" 2-3/8"
78636 .3150 8.000 75 43
90636 .3150 8.000 95 60
78641 .3160 O 8.026 2-15/16" 1-11/16"
90641 .3160 O 8.026 3-3/4" 2-3/8"
78646 .3230 P 8.204 2-15/16" 1-11/16"
90646 .3230 P 8.204 3-3/4" 2-3/8"
78651 .3281 21/64" 8.334 2-15/16" 1-11/16"
90651 .3281 21/64" 8.334 4" 2-1/2"
78656 .3320 Q 8.433 3" 1-11/16"
90656 .3320 Q 8.433 4" 2-1/2"
78661 .3346 8.500 76 43
90661 .3346 8.500 101 63
78666 .3390 R 8.611 3" 1-11/16"
90666 .3390 R 8.611 4" 2-1/2"
78671 .3438 11/32" 8.733 3" 1-11/16"
90671 .3438 11/32" 8.733 4" 2-1/2"
78676 .3480 S 8.839 3-1/16" 1-3/4"
90676 .3480 S 8.839 4" 2-1/2"
78681 .3543 9.000 78 44
90681 .3543 9.000 101 63

continued ?
