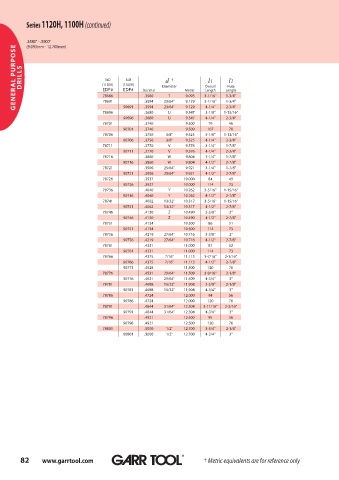

Page 82 - GARR_TOOL(CATALOG_INT)

Series 1120H, 1100H (continued)

.3580" - .5000"
(9.093mm - 12.700mm)
GENERAL PURPOSE DRILLS (1120H) (1100H) Decimal Diameter Metric Overall Length

d
3xD
5xD
†
l2
l1
Flute
EDP#
EDP#
Length
1-3/4"
78686
T
78691
9.129
3-1/16"
1-3/4"
.3594
9.129
.3594
23/64"
2-3/4"
4-1/4"
.3680
U
78696 90691 .3580 23/64" 9.093 3-1/16" 1-13/16"
3-1/8"
9.347
90696 .3680 U 9.347 4-1/4" 2-3/4"
78701 .3740 9.500 79 46
90701 .3740 9.500 107 70
78706 .3750 3/8" 9.525 3-1/8" 1-13/16"
90706 .3750 3/8" 9.525 4-1/4" 2-3/4"
78711 .3770 V 9.576 3-1/4" 1-7/8"
90711 .3770 V 9.576 4-1/4" 2-3/4"
78716 .3860 W 9.804 3-1/4" 1-7/8"
90716 .3860 W 9.804 4-1/2" 2-7/8"
78721 .3906 25/64" 9.921 3-1/4" 1-7/8"
90721 .3906 25/64" 9.921 4-1/2" 2-7/8"
78726 .3937 10.000 84 49
90726 .3937 10.000 114 73
78736 .4040 Y 10.262 3-5/16" 1-15/16"
90736 .4040 Y 10.262 4-1/2" 2-7/8"
78741 .4062 13/32" 10.317 3-5/16" 1-15/16"
90741 .4062 13/32" 10.317 4-1/2" 2-7/8"
78746 .4130 Z 10.490 3-3/8" 2"
90746 .4130 Z 10.490 4-1/2" 2-7/8"
78751 .4134 10.500 86 51
90751 .4134 10.500 114 73
78756 .4219 27/64" 10.716 3-3/8" 2"
90756 .4219 27/64" 10.716 4-1/2" 2-7/8"
78761 .4331 11.000 87 52
90761 .4331 11.000 114 73
78766 .4375 7/16" 11.113 3-7/16" 2-1/16"
90766 .4375 7/16" 11.113 4-1/2" 2-7/8"
90771 .4528 11.500 120 76
78776 .4531 29/64" 11.509 3-9/16" 2-1/8"
90776 .4531 29/64" 11.509 4-3/4" 3"
78781 .4688 15/32" 11.908 3-5/8" 2-1/8"
90781 .4688 15/32" 11.908 4-3/4" 3"
78786 .4724 12.000 94 56
90786 .4724 12.000 120 76
78791 .4844 31/64" 12.304 3-11/16" 2-3/16"
90791 .4844 31/64" 12.304 4-3/4" 3"
78796 .4921 12.500 95 56
90796 .4921 12.500 120 76
78801 .5000 1/2" 12.700 3-3/4" 2-1/4"
90801 .5000 1/2" 12.700 4-3/4" 3"

82 www.garrtool.com ® ® ® † Metric equivalents are for reference only
