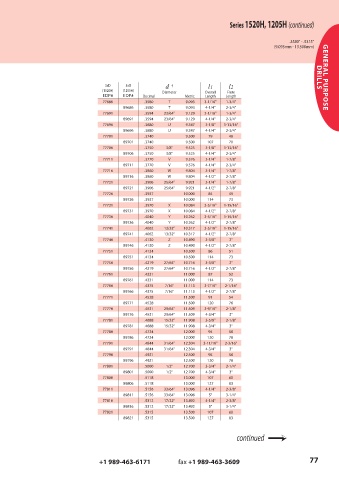

Page 77 - GARR_TOOL(CATALOG_INT)

Series 1520H, 1205H (continued)

.3580" - .5315"
(9.093mm - 13.500mm)

3xD 5xD d † l1 l2 DRILLS GENERAL PURPOSE
(1520H) (1205H) Diameter Overall Flute
EDP# EDP# Decimal Metric Length Length
77686 .3580 T 9.093 3-1/16" 1-3/4"
89686 .3580 T 9.093 4-1/4" 2-3/4"
77691 .3594 23/64" 9.129 3-1/16" 1-3/4"
89691 .3594 23/64" 9.129 4-1/4" 2-3/4"
77696 .3680 U 9.347 3-1/8" 1-13/16"
89696 .3680 U 9.347 4-1/4" 2-3/4"
77701 .3740 9.500 79 46
89701 .3740 9.500 107 70
77706 .3750 3/8" 9.525 3-1/8" 1-13/16"
89706 .3750 3/8" 9.525 4-1/4" 2-3/4"
77711 .3770 V 9.576 3-1/4" 1-7/8"
89711 .3770 V 9.576 4-1/4" 2-3/4"
77716 .3860 W 9.804 3-1/4" 1-7/8"
89716 .3860 W 9.804 4-1/2" 2-7/8"
77721 .3906 25/64" 9.921 3-1/4" 1-7/8"
89721 .3906 25/64" 9.921 4-1/2" 2-7/8"
77726 .3937 10.000 84 49
89726 .3937 10.000 114 73
77731 .3970 X 10.084 3-5/16" 1-15/16"
89731 .3970 X 10.084 4-1/2" 2-7/8"
77736 .4040 Y 10.262 3-5/16" 1-15/16"
89736 .4040 Y 10.262 4-1/2" 2-7/8"
77741 .4062 13/32" 10.317 3-5/16" 1-15/16"
89741 .4062 13/32" 10.317 4-1/2" 2-7/8"
77746 .4130 Z 10.490 3-3/8" 2"
89746 .4130 Z 10.490 4-1/2" 2-7/8"
77751 .4134 10.500 86 51
89751 .4134 10.500 114 73
77756 .4219 27/64" 10.716 3-3/8" 2"
89756 .4219 27/64" 10.716 4-1/2" 2-7/8"
77761 .4331 11.000 87 52
89761 .4331 11.000 114 73
77766 .4375 7/16" 11.113 3-7/16" 2-1/16"
89766 .4375 7/16" 11.113 4-1/2" 2-7/8"
77771 .4528 11.500 91 54
89771 .4528 11.500 120 76
77776 .4531 29/64" 11.509 3-9/16" 2-1/8"
89776 .4531 29/64" 11.509 4-3/4" 3"
77781 .4688 15/32" 11.908 3-5/8" 2-1/8"
89781 .4688 15/32" 11.908 4-3/4" 3"
77786 .4724 12.000 94 56
89786 .4724 12.000 120 76
77791 .4844 31/64" 12.304 3-11/16" 2-3/16"
89791 .4844 31/64" 12.304 4-3/4" 3"
77796 .4921 12.500 95 56
89796 .4921 12.500 120 76
77801 .5000 1/2" 12.700 3-3/4" 2-1/4"
89801 .5000 1/2" 12.700 4-3/4" 3"
77806 .5118 13.000 107 60
89806 .5118 13.000 127 83
77811 .5156 33/64" 13.096 4-1/4" 2-3/8"
89811 .5156 33/64" 13.096 5" 3-1/4"
77816 .5312 17/32" 13.492 4-1/4" 2-3/8"
89816 .5312 17/32" 13.492 5" 3-1/4"
77821 .5315 13.500 107 60
89821 .5315 13.500 127 83

continued ?
