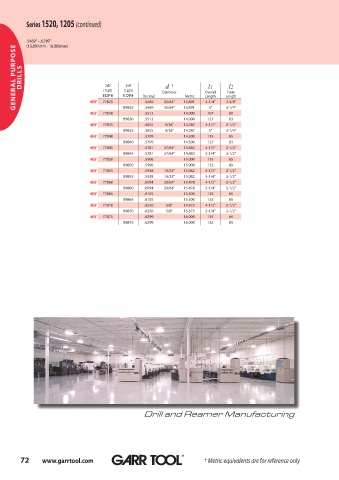

P. 72

Series 1520, 1205 (continued)


          .5469" - .6299"
          (13.891mm - 16.000mm)
      GENERAL PURPOSE  DRILLS        (1520)  (1205)       Diameter       Overall  Flute





                                                           d
                                                             †
                                             5xD
                                      3xD
                                                                                 l2
                                                                          l1
                                                                  Metric
                                 NEW
                                                                         4-1/4"
                                                                                2-3/8"
                                                    .5469
                                     77825
                                                                  13.891
                                            89825
                                                    .5469
                                                           35/64"
                                                                          5"
                                                                                3-1/4"
                                 NEW  EDP#  EDP#   Decimal  35/64"  13.891  Length  Length
                                                    .5512
                                                                  14.000
                                     77830
                                                                                 60
                                                                          107
                                            89830   .5512         14.000  127    83
                                 NEW  77835         .5625  9/16"  14.287  4-1/2"  2-1/2"
                                            89835   .5625  9/16"  14.287  5"    3-1/4"
                                 NEW  77840         .5709         14.500  115    65
                                            89840   .5709         14.500  127    83
                                 NEW  77845         .5781  37/64"  14.683  4-1/2"  2-1/2"
                                            89845   .5781  37/64"  14.683  5-1/4"  3-1/2"
                                 NEW  77850         .5906         15.000  115    65
                                            89850   .5906         15.000  133    89
                                 NEW  77855         .5938  19/32"  15.082  4-1/2"  2-1/2"
                                            89855   .5938  19/32"  15.082  5-1/4"  3-1/2"
                                 NEW  77860         .6094  39/64"  15.478  4-1/2"  2-1/2"
                                            89860   .6094  39/64"  15.478  5-1/4"  3-1/2"
                                 NEW  77865         .6102         15.500  115    65
                                            89865   .6102         15.500  133    89
                                 NEW  77870         .6250  5/8"   15.875  4-1/2"  2-1/2"
                                            89870   .6250  5/8"   15.875  5-1/4"  3-1/2"
                                 NEW  77875         .6299         16.000  115    65
                                            89875   .6299         16.000  133    89




























                                                    Drill and Reamer Manufacturing








        72      www.garrtool.com                                 ® ® ®   †  Metric equivalents are for reference only
