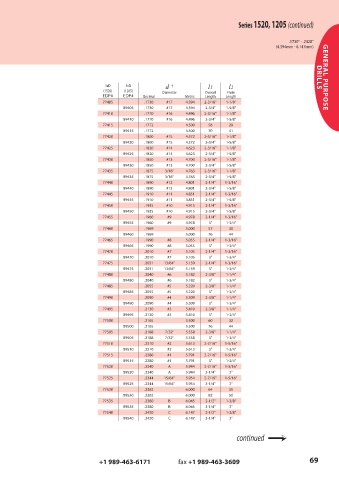

Page 69 - GARR_TOOL(CATALOG_INT)

Series 1520, 1205 (continued)

.1730" - .2420"
(4.394mm - 6.147mm)

3xD 5xD d † l1 l2 DRILLS GENERAL PURPOSE
(1520) (1205) Diameter Overall Flute
EDP# EDP# Decimal Metric Length Length
77405 .1730 #17 4.394 2-3/16" 1-1/8"
89405 .1730 #17 4.394 2-3/4" 1-5/8"
77410 .1770 #16 4.496 2-3/16" 1-1/8"
89410 .1770 #16 4.496 2-3/4" 1-5/8"
77415 .1772 4.500 56 29
89415 .1772 4.500 70 41
77420 .1800 #15 4.572 2-3/16" 1-1/8"
89420 .1800 #15 4.572 2-3/4" 1-5/8"
77425 .1820 #14 4.623 2-3/16" 1-1/8"
89425 .1820 #14 4.623 2-3/4" 1-5/8"
77430 .1850 #13 4.700 2-3/16" 1-1/8"
89430 .1850 #13 4.700 2-3/4" 1-5/8"
77435 .1875 3/16" 4.763 2-3/16" 1-1/8"
89435 .1875 3/16" 4.763 2-3/4" 1-5/8"
77440 .1890 #12 4.801 2-1/4" 1-3/16"
89440 .1890 #12 4.801 2-3/4" 1-5/8"
77445 .1910 #11 4.851 2-1/4" 1-3/16"
89445 .1910 #11 4.851 2-3/4" 1-5/8"
77450 .1935 #10 4.915 2-1/4" 1-3/16"
89450 .1935 #10 4.915 2-3/4" 1-5/8"
77455 .1960 #9 4.978 2-1/4" 1-3/16"
89455 .1960 #9 4.978 3" 1-3/4"
77460 .1969 5.000 57 30
89460 .1969 5.000 76 44
77465 .1990 #8 5.055 2-1/4" 1-3/16"
89465 .1990 #8 5.055 3" 1-3/4"
77470 .2010 #7 5.105 2-1/4" 1-3/16"
89470 .2010 #7 5.105 3" 1-3/4"
77475 .2031 13/64" 5.159 2-1/4" 1-3/16"
89475 .2031 13/64" 5.159 3" 1-3/4"
77480 .2040 #6 5.182 2-3/8" 1-1/4"
89480 .2040 #6 5.182 3" 1-3/4"
77485 .2055 #5 5.220 2-3/8" 1-1/4"
89485 .2055 #5 5.220 3" 1-3/4"
77490 .2090 #4 5.309 2-3/8" 1-1/4"
89490 .2090 #4 5.309 3" 1-3/4"
77495 .2130 #3 5.410 2-3/8" 1-1/4"
89495 .2130 #3 5.410 3" 1-3/4"
77500 .2165 5.500 60 32
89500 .2165 5.500 76 44
77505 .2188 7/32" 5.558 2-3/8" 1-1/4"
89505 .2188 7/32" 5.558 3" 1-3/4"
77510 .2210 #2 5.613 2-7/16" 1-5/16"
89510 .2210 #2 5.613 3" 1-3/4"
77515 .2280 #1 5.791 2-7/16" 1-5/16"
89515 .2280 #1 5.791 3" 1-3/4"
77520 .2340 A 5.944 2-7/16" 1-5/16"
89520 .2340 A 5.944 3-1/4" 2"
77525 .2344 15/64" 5.954 2-7/16" 1-5/16"
89525 .2344 15/64" 5.954 3-1/4" 2"
77530 .2362 6.000 64 35
89530 .2362 6.000 82 50
77535 .2380 B 6.045 2-1/2" 1-3/8"
89535 .2380 B 6.045 3-1/4" 2"
77540 .2420 C 6.147 2-1/2" 1-3/8"
89540 .2420 C 6.147 3-1/4" 2"

continued ?
