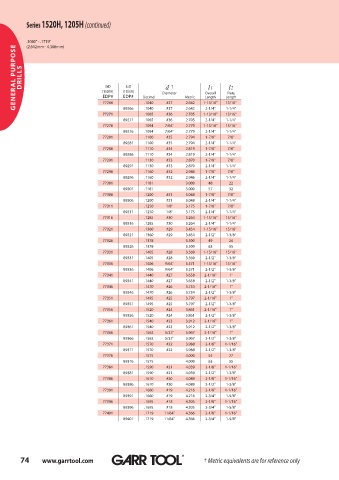

Series 1520H, 1205H (continued)

.1040" - .1719"
(2.642mm - 4.366mm)
GENERAL PURPOSE DRILLS (1520H) (1205H) Diameter Overall Flute

d
3xD
5xD
†
l2
l1
EDP#
Length
Length
77266
.1040
2.642
2.642
#37
.1040
89266
1-1/4"
2-1/4"
.1065
#36
13/16"
77271 EDP# Decimal #37 Metric 1-13/16" 13/16"
2.705
1-13/16"
89271 .1065 #36 2.705 2-1/4" 1-1/4"
77276 .1094 7/64" 2.779 1-13/16" 13/16"
89276 .1094 7/64" 2.779 2-1/4" 1-1/4"
77281 .1100 #35 2.794 1-7/8" 7/8"
89281 .1100 #35 2.794 2-1/4" 1-1/4"
77286 .1110 #34 2.819 1-7/8" 7/8"
89286 .1110 #34 2.819 2-1/4" 1-1/4"
77291 .1130 #33 2.870 1-7/8" 7/8"
89291 .1130 #33 2.870 2-1/4" 1-1/4"
77296 .1160 #32 2.946 1-7/8" 7/8"
89296 .1160 #32 2.946 2-1/4" 1-1/4"
77301 .1181 3.000 48 22
89301 .1181 3.000 57 32
77306 .1200 #31 3.048 1-7/8" 7/8"
89306 .1200 #31 3.048 2-1/4" 1-1/4"
77311 .1250 1/8" 3.175 1-7/8" 7/8"
89311 .1250 1/8" 3.175 2-1/4" 1-1/4"
77316 .1285 #30 3.264 1-15/16" 15/16"
89316 .1285 #30 3.264 2-1/4" 1-1/4"
77321 .1360 #29 3.454 1-15/16" 15/16"
89321 .1360 #29 3.454 2-1/2" 1-3/8"
77326 .1378 3.500 49 24
89326 .1378 3.500 63 35
77331 .1405 #28 3.569 1-15/16" 15/16"
89331 .1405 #28 3.569 2-1/2" 1-3/8"
77336 .1406 9/64" 3.571 1-15/16" 15/16"
89336 .1406 9/64" 3.571 2-1/2" 1-3/8"
77341 .1440 #27 3.658 2-1/16" 1"
89341 .1440 #27 3.658 2-1/2" 1-3/8"
77346 .1470 #26 3.734 2-1/16" 1"
89346 .1470 #26 3.734 2-1/2" 1-3/8"
77351 .1495 #25 3.797 2-1/16" 1"
89351 .1495 #25 3.797 2-1/2" 1-3/8"
77356 .1520 #24 3.861 2-1/16" 1"
89356 .1520 #24 3.861 2-1/2" 1-3/8"
77361 .1540 #23 3.912 2-1/16" 1"
89361 .1540 #23 3.912 2-1/2" 1-3/8"
77366 .1562 5/32" 3.967 2-1/16" 1"
89366 .1562 5/32" 3.967 2-1/2" 1-3/8"
77371 .1570 #22 3.988 2-1/8" 1-1/16"
89371 .1570 #22 3.988 2-1/2" 1-3/8"
77376 .1575 4.000 54 27
89376 .1575 4.000 63 35
77381 .1590 #21 4.039 2-1/8" 1-1/16"
89381 .1590 #21 4.039 2-1/2" 1-3/8"
77386 .1610 #20 4.089 2-1/8" 1-1/16"
89386 .1610 #20 4.089 2-1/2" 1-3/8"
77391 .1660 #19 4.216 2-1/8" 1-1/16"
89391 .1660 #19 4.216 2-3/4" 1-5/8"
77396 .1695 #18 4.305 2-1/8" 1-1/16"
89396 .1695 #18 4.305 2-3/4" 1-5/8"
77401 .1719 11/64" 4.366 2-1/8" 1-1/16"
89401 .1719 11/64" 4.366 2-3/4" 1-5/8"
