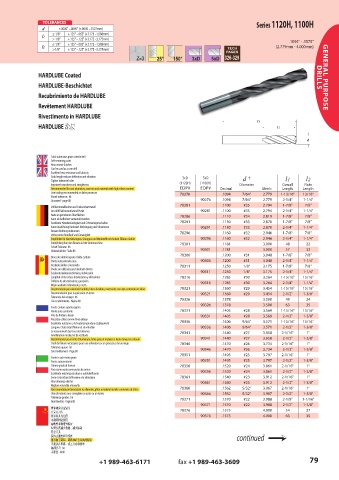

P. 79

TOLERANCES                                                                 Series 1120H, 1100H
                d     +.0000" –.0005" (+.0000 –.0127mm)
                   ≤ 1/8"  +.125" –.062" (+3.175 –1.588mm)
                l1
                   > 1/8"  +.125" –.125" (+3.175 –3.175mm)                                             .1094" - .1575"
                   ≤ 1/8"  +.125" –.062" (+3.175 –1.588mm)
                l2                                                                                (2.779mm - 4.000mm)
                   >1/8"  +.125" –.125" (+3.175 –3.175mm)
                                                                    3xD    5xD  326-329

               HARDLUBE Coated                                                                                  DRILLS  GENERAL PURPOSE
               HARDLUBE-Beschichtet
               Recubrimiento de HARDLUBE
               Revêtement HARDLUBE
               Rivestimento in HARDLUBE

               HARDLUBE 涂层
                        涂层




                   Solid submicron grain carbide drill
                   Self-centering point
                   Near reamer finishes
                   Can be used as a core drill
                   Excellent heat resistance and lubricity
                   Stub length reduces deflection and vibration  3xD    5xD           d  †
                   Tighter tolerance holes                                                           l1     l2
                   Improved roundness and straightness          (1120H)  (1100H)     Diameter       Overall  Flute
                   Recommended for cast aluminum, cast iron and materials with high silicon content  EDP#  EDP#  Decimal  Metric  Length  Length
                   Live tooling recommended on lathe processes  78276          .1094  7/64"  2.779  1-13/16"  13/16"
                   Shank tolerance:  h6
                   Uncoated - page 88                                  90276   .1094  7/64"  2.779  2-1/4"  1-1/4"
                                                                78281          .1100   #35   2.794  1-7/8"  7/8"
                   Vollhartmetallbohrer aus Feinkornhartmetall
                   Anschliff Selbstzentrierend Punkt                   90281   .1100   #35   2.794  2-1/4"  1-1/4"
                   Nahe an geriebenen Oberflächen               78286          .1110   #34   2.819  1-7/8"  7/8"
                   Kann als Aufbohrer verwendet werden
                   Exzellente Hitzebeständigkeit und Schmiereigenschaften  78291  .1130  #33  2.870  1-7/8"  7/8"
                   Kurze Ausführung Reduziert Abdrängung und Vibrationen  90291  .1130  #33  2.870  2-1/4"  1-1/4"
                   Bessere Bohrungstoleranzen
                   Verbesserter Rundlauf und Genauigkeit        78296          .1160   #32   2.946  1-7/8"  7/8"
                   Empfohlen für Aluminiumguss, Grauguss und Werkstoffe mit hohem Silizium Gehalt  90296  .1160  #32  2.946  2-1/4"  1-1/4"
                   Empfehlung fuer den Einsatz auf der Drehmaschine  78301     .1181         3.000   48      22
                   Schaft-Toleranz:  h6
                   Unbeschichtet - Seite 88                            90301   .1181         3.000   57      32
                                                                78306          .1200   #31   3.048  1-7/8"  7/8"
                   Broca de submicrograno sólido carburo
                   Punta autocentrada caras                            90306   .1200   #31   3.048  2-1/4"  1-1/4"
                   Acabado similar al escariado                 78311          .1250  1/8"   3.175  1-7/8"  7/8"
                   Puede ser utilizada para taladrado directo
                   Excelente resistencia térmica y lubricación         90311   .1250  1/8"   3.175  2-1/4"  1-1/4"
                   Longitud corta reduce desviaciones y vibraciones  78316     .1285   #30   3.264  1-15/16"  15/16"
                   Orificios de alta tolerancia y precisión            90316   .1285   #30   3.264  2-1/4"  1-1/4"
                   Mejor acabado redondeado y recto
                   Recomendado para aluminio fundido, hierro fundido y materiales con alto contenido de silicio  78321  .1360  #29  3.454  1-15/16"  15/16"
                   Recomendación para la aplicación en torno           90321   .1360   #29   3.454  2-1/2"  1-3/8"
                   Tolerancia del vástago:  h6
                   Sin recubrimiento - Página 88                78326          .1378         3.500   49      24
                                                                       90326   .1378         3.500   63      35
                   Forets carbure submicrograin
                   Pointe auto centrante                        78331          .1405   #28   3.569  1-15/16"  15/16"
                   Près de finitions alésoir                           90331   .1405   #28   3.569  2-1/2"  1-3/8"
                   Peut être utilisé comme foret-aléseur
                   Excellente resistance a la haute temperature et glissement  78336  .1406  9/64"  3.571  1-15/16"  15/16"
                   Longueur Stub réduit flexion et de vibration        90336   .1406  9/64"  3.571  2-1/2"  1-3/8"
                   Le resserrement des trous de tolérance       78341          .1440   #27   3.658  2-1/16"  1"
                   Amélioration rondeur et de rectitude
                   Recommander pour fonte d’aluminium, fonte grise et matieres a haute teneur en silicium  90341  .1440  #27  3.658  2-1/2"  1-3/8"
                   Outil de filature nécessaires pour une utilisation sur un processus de tournage  78346  .1470  #26  3.734  2-1/16"  1"
                   Tolerance queue:  h6
                   Sans revêtement - Page 88                           90346   .1470   #26   3.734  2-1/2"  1-3/8"
                                                                78351          .1495   #25   3.797  2-1/16"  1"
                   Punte in sub-micro grana
                   Punto autocentrante                                 90351   .1495   #25   3.797  2-1/2"  1-3/8"
                   Ottimo grado di finitura                     78356          .1520   #24   3.861  2-1/16"  1"
                   Può essere usata come punta da centro
                   Eccellente resistenza al calore e autolubrificante  90356   .1520   #24   3.861  2-1/2"  1-3/8"
                   Serie corta riduce la flessione e la vibrazione  78361      .1540   #23   3.912  2-1/16"  1"
                   Alta tolleranza dei fori                            90361   .1540   #23   3.912  2-1/2"  1-3/8"
                   Migliore rotondità e linearità
                   Raccomandata per lavorazioni su alluminio, ghisa e materiali ad alto contenuto di silicio  78366  .1562  5/32"  3.967  2-1/16"  1"
                   Utensili rotanti sono consigliate se usato su un tornio  90366  .1562  5/32"  3.967  2-1/2"  1-3/8"
                   Tolleranza gambo:  h6                        78371          .1570   #22   3.988  2-1/8"  1-1/16"
                   Non Rivestito - Pagina 88
                                                                       90371   .1570   #22   3.988  2-1/2"  1-3/8"
                   整体硬质合金钻头
                   自定心刀尖                                        78376          .1575         4.000   54      27
                   接近铰孔光洁度                                             90376   .1575         4.000   63      35
                   可做套料钻使用
                   耐热性和润滑性特好
                   短型长度减少挠曲、减少振动
                   紧公差孔
                   提高正圆度和直线度                                                        continued              ?
                   推荐加工铸铝、铸铁和硅含量高的材质
                   不建议在车床,或工具必须纺纱
                   柄部公差:  h6
                   未涂层 - 88页
