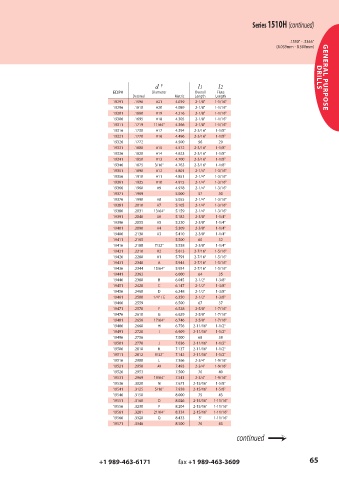

Page 65 - GARR_TOOL(CATALOG_INT)

Series 1510H (continued)

.1590" - .3346"
(4.039mm - 8.500mm)

d † l1 l2 DRILLS GENERAL PURPOSE
EDP# Diameter Overall Flute
Decimal Metric Length Length
19291 .1590 #21 4.039 2-1/8" 1-1/16"
19296 .1610 #20 4.089 2-1/8" 1-1/16"
19301 .1660 #19 4.216 2-1/8" 1-1/16"
19306 .1695 #18 4.305 2-1/8" 1-1/16"
19311 .1719 11/64" 4.366 2-1/8" 1-1/16"
19316 .1730 #17 4.394 2-3/16" 1-1/8"
19321 .1770 #16 4.496 2-3/16" 1-1/8"
19326 .1772 4.500 56 29
19331 .1800 #15 4.572 2-3/16" 1-1/8"
19336 .1820 #14 4.623 2-3/16" 1-1/8"
19341 .1850 #13 4.700 2-3/16" 1-1/8"
19346 .1875 3/16" 4.763 2-3/16" 1-1/8"
19351 .1890 #12 4.801 2-1/4" 1-3/16"
19356 .1910 #11 4.851 2-1/4" 1-3/16"
19361 .1935 #10 4.915 2-1/4" 1-3/16"
19366 .1960 #9 4.978 2-1/4" 1-3/16"
19371 .1969 5.000 57 30
19376 .1990 #8 5.055 2-1/4" 1-3/16"
19381 .2010 #7 5.105 2-1/4" 1-3/16"
19386 .2031 13/64" 5.159 2-1/4" 1-3/16"
19391 .2040 #6 5.182 2-3/8" 1-1/4"
19396 .2055 #5 5.220 2-3/8" 1-1/4"
19401 .2090 #4 5.309 2-3/8" 1-1/4"
19406 .2130 #3 5.410 2-3/8" 1-1/4"
19411 .2165 5.500 60 32
19416 .2188 7/32" 5.558 2-3/8" 1-1/4"
19421 .2210 #2 5.613 2-7/16" 1-5/16"
19426 .2280 #1 5.791 2-7/16" 1-5/16"
19431 .2340 A 5.944 2-7/16" 1-5/16"
19436 .2344 15/64" 5.954 2-7/16" 1-5/16"
19441 .2362 6.000 64 35
19446 .2380 B 6.045 2-1/2" 1-3/8"
19451 .2420 C 6.147 2-1/2" 1-3/8"
19456 .2460 D 6.248 2-1/2" 1-3/8"
19461 .2500 1/4" / E 6.350 2-1/2" 1-3/8"
19466 .2559 6.500 67 37
19471 .2570 F 6.528 2-5/8" 1-7/16"
19476 .2610 G 6.629 2-5/8" 1-7/16"
19481 .2656 17/64" 6.746 2-5/8" 1-7/16"
19486 .2660 H 6.756 2-11/16" 1-1/2"
19491 .2720 I 6.909 2-11/16" 1-1/2"
19496 .2756 7.000 68 38
19501 .2770 J 7.036 2-11/16" 1-1/2"
19506 .2810 K 7.137 2-11/16" 1-1/2"
19511 .2812 9/32" 7.142 2-11/16" 1-1/2"
19516 .2900 L 7.366 2-3/4" 1-9/16"
19521 .2950 M 7.493 2-3/4" 1-9/16"
19526 .2953 7.500 70 40
19531 .2969 19/64" 7.541 2-3/4" 1-9/16"
19536 .3020 N 7.671 2-15/16" 1-5/8"
19541 .3125 5/16" 7.938 2-15/16" 1-5/8"
19546 .3150 8.000 75 43
19551 .3160 O 8.026 2-15/16" 1-11/16"
19556 .3230 P 8.204 2-15/16" 1-11/16"
19561 .3281 21/64" 8.334 2-15/16" 1-11/16"
19566 .3320 Q 8.433 3" 1-11/16"
19571 .3346 8.500 76 43

continued ?

+1 989-463-6171 fax +1 989-463-3609 65
