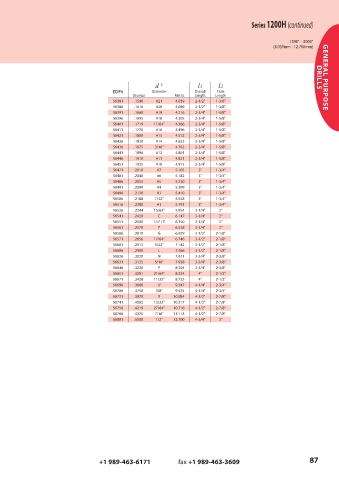

Page 87 - GARR_TOOL(CATALOG_INT)

Series 1200H (continued)

.1590" - .5000"
(4.039mm - 12.700mm)

d † l1 l2 DRILLS GENERAL PURPOSE
EDP# Diameter Overall Flute
Decimal Metric Length Length
56381 .1590 #21 4.039 2-1/2" 1-3/8"
56386 .1610 #20 4.089 2-1/2" 1-3/8"
56391 .1660 #19 4.216 2-3/4" 1-5/8"
56396 .1695 #18 4.305 2-3/4" 1-5/8"
56401 .1719 11/64" 4.366 2-3/4" 1-5/8"
56411 .1770 #16 4.496 2-3/4" 1-5/8"
56421 .1800 #15 4.572 2-3/4" 1-5/8"
56426 .1820 #14 4.623 2-3/4" 1-5/8"
56436 .1875 3/16" 4.763 2-3/4" 1-5/8"
56441 .1890 #12 4.801 2-3/4" 1-5/8"
56446 .1910 #11 4.851 2-3/4" 1-5/8"
56451 .1935 #10 4.915 2-3/4" 1-5/8"
56471 .2010 #7 5.105 3" 1-3/4"
56481 .2040 #6 5.182 3" 1-3/4"
56486 .2055 #5 5.220 3" 1-3/4"
56491 .2090 #4 5.309 3" 1-3/4"
56496 .2130 #3 5.410 3" 1-3/4"
56506 .2188 7/32" 5.558 3" 1-3/4"
56516 .2280 #1 5.791 3" 1-3/4"
56526 .2344 15/64" 5.954 3-1/4" 2"
56541 .2420 C 6.147 3-1/4" 2"
56551 .2500 1/4" / E 6.350 3-1/4" 2"
56561 .2570 F 6.528 3-1/4" 2"
56566 .2610 G 6.629 3-1/2" 2-1/8"
56571 .2656 17/64" 6.746 3-1/2" 2-1/8"
56601 .2812 9/32" 7.142 3-1/2" 2-1/8"
56606 .2900 L 7.366 3-1/2" 2-1/8"
56626 .3020 N 7.671 3-3/4" 2-3/8"
56631 .3125 5/16" 7.938 3-3/4" 2-3/8"
56646 .3230 P 8.204 3-3/4" 2-3/8"
56651 .3281 21/64" 8.334 4" 2-1/2"
56671 .3438 11/32" 8.733 4" 2-1/2"
56696 .3680 U 9.347 4-1/4" 2-3/4"
56706 .3750 3/8" 9.525 4-1/4" 2-3/4"
56731 .3970 X 10.084 4-1/2" 2-7/8"
56741 .4062 13/32" 10.317 4-1/2" 2-7/8"
56756 .4219 27/64" 10.716 4-1/2" 2-7/8"
56766 .4375 7/16" 11.113 4-1/2" 2-7/8"
56801 .5000 1/2" 12.700 4-3/4" 3"
