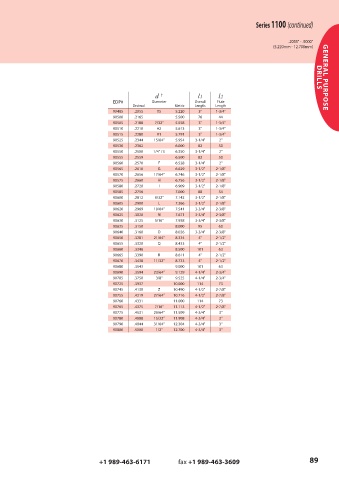

Page 89 - GARR_TOOL(CATALOG_INT)

Series 1100 (continued)

.2055" - .5000"
(5.220mm - 12.700mm)

d † l1 l2 DRILLS GENERAL PURPOSE
EDP# Diameter Overall Flute
Decimal Metric Length Length
90485 .2055 #5 5.220 3" 1-3/4"
90500 .2165 5.500 76 44
90505 .2188 7/32" 5.558 3" 1-3/4"
90510 .2210 #2 5.613 3" 1-3/4"
90515 .2280 #1 5.791 3" 1-3/4"
90525 .2344 15/64" 5.954 3-1/4" 2"
90530 .2362 6.000 82 50
90550 .2500 1/4" / E 6.350 3-1/4" 2"
90555 .2559 6.500 82 50
90560 .2570 F 6.528 3-1/4" 2"
90565 .2610 G 6.629 3-1/2" 2-1/8"
90570 .2656 17/64" 6.746 3-1/2" 2-1/8"
90575 .2660 H 6.756 3-1/2" 2-1/8"
90580 .2720 I 6.909 3-1/2" 2-1/8"
90585 .2756 7.000 88 54
90600 .2812 9/32" 7.142 3-1/2" 2-1/8"
90605 .2900 L 7.366 3-1/2" 2-1/8"
90620 .2969 19/64" 7.541 3-3/4" 2-3/8"
90625 .3020 N 7.671 3-3/4" 2-3/8"
90630 .3125 5/16" 7.938 3-3/4" 2-3/8"
90635 .3150 8.000 95 60
90640 .3160 O 8.026 3-3/4" 2-3/8"
90650 .3281 21/64" 8.334 4" 2-1/2"
90655 .3320 Q 8.433 4" 2-1/2"
90660 .3346 8.500 101 63
90665 .3390 R 8.611 4" 2-1/2"
90670 .3438 11/32" 8.733 4" 2-1/2"
90680 .3543 9.000 101 63
90690 .3594 23/64" 9.129 4-1/4" 2-3/4"
90705 .3750 3/8" 9.525 4-1/4" 2-3/4"
90725 .3937 10.000 114 73
90745 .4130 Z 10.490 4-1/2" 2-7/8"
90755 .4219 27/64" 10.716 4-1/2" 2-7/8"
90760 .4331 11.000 114 73
90765 .4375 7/16" 11.113 4-1/2" 2-7/8"
90775 .4531 29/64" 11.509 4-3/4" 3"
90780 .4688 15/32" 11.908 4-3/4" 3"
90790 .4844 31/64" 12.304 4-3/4" 3"
90800 .5000 1/2" 12.700 4-3/4" 3"
