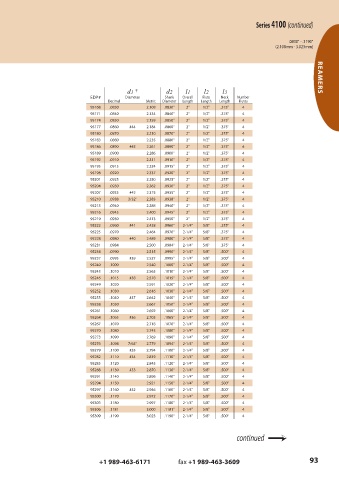

Page 93 - GARR_TOOL(CATALOG_INT)

Series 4100 (continued)

.0830" - .1190"
(2.108mm - 3.023mm)

d1 † d2 l1 l2 l3 REAMERS
EDP# Diameter Shank Overall Flute Neck Number
Decimal Metric Diameter Length Length Length Flutes
95168 .0830 2.108 .0830" 2" 1/2" .375" 4
95171 .0840 2.134 .0840" 2" 1/2" .375" 4
95174 .0850 2.159 .0850" 2" 1/2" .375" 4
95177 .0860 #44 2.184 .0860" 2" 1/2" .375" 4
95180 .0870 2.210 .0870" 2" 1/2" .375" 4
95183 .0880 2.235 .0880" 2" 1/2" .375" 4
95186 .0890 #43 2.261 .0890" 2" 1/2" .375" 4
95189 .0900 2.286 .0900" 2" 1/2" .375" 4
95192 .0910 2.311 .0910" 2" 1/2" .375" 4
95195 .0915 2.324 .0915" 2" 1/2" .375" 4
95198 .0920 2.337 .0920" 2" 1/2" .375" 4
95201 .0925 2.350 .0925" 2" 1/2" .375" 4
95204 .0930 2.362 .0930" 2" 1/2" .375" 4
95207 .0935 #42 2.375 .0935" 2" 1/2" .375" 4
95210 .0938 3/32" 2.383 .0938" 2" 1/2" .375" 4
95213 .0940 2.388 .0940" 2" 1/2" .375" 4
95216 .0945 2.400 .0945" 2" 1/2" .375" 4
95219 .0950 2.413 .0950" 2" 1/2" .375" 4
95222 .0960 #41 2.438 .0960" 2-1/4" 5/8" .375" 4
95225 .0970 2.464 .0970" 2-1/4" 5/8" .375" 4
95228 .0980 #40 2.489 .0980" 2-1/4" 5/8" .375" 4
95231 .0984 2.500 .0984" 2-1/4" 5/8" .375" 4
95234 .0990 2.515 .0990" 2-1/4" 5/8" .500" 4
95237 .0995 #39 2.527 .0995" 2-1/4" 5/8" .500" 4
95240 .1000 2.540 .1000" 2-1/4" 5/8" .500" 4
95243 .1010 2.565 .1010" 2-1/4" 5/8" .500" 4
95246 .1015 #38 2.578 .1015" 2-1/4" 5/8" .500" 4
95249 .1020 2.591 .1020" 2-1/4" 5/8" .500" 4
95252 .1030 2.616 .1030" 2-1/4" 5/8" .500" 4
95255 .1040 #37 2.642 .1040" 2-1/4" 5/8" .500" 4
95258 .1050 2.667 .1050" 2-1/4" 5/8" .500" 4
95261 .1060 2.692 .1060" 2-1/4" 5/8" .500" 4
95264 .1065 #36 2.705 .1065" 2-1/4" 5/8" .500" 4
95267 .1070 2.718 .1070" 2-1/4" 5/8" .500" 4
95270 .1080 2.743 .1080" 2-1/4" 5/8" .500" 4
95273 .1090 2.769 .1090" 2-1/4" 5/8" .500" 4
95276 .1094 7/64" 2.779 .1094" 2-1/4" 5/8" .500" 4
95279 .1100 #35 2.794 .1100" 2-1/4" 5/8" .500" 4
95282 .1110 #34 2.819 .1110" 2-1/4" 5/8" .500" 4
95285 .1120 2.845 .1120" 2-1/4" 5/8" .500" 4
95288 .1130 #33 2.870 .1130" 2-1/4" 5/8" .500" 4
95291 .1140 2.896 .1140" 2-1/4" 5/8" .500" 4
95294 .1150 2.921 .1150" 2-1/4" 5/8" .500" 4
95297 .1160 #32 2.946 .1160" 2-1/4" 5/8" .500" 4
95300 .1170 2.972 .1170" 2-1/4" 5/8" .500" 4
95303 .1180 2.997 .1180" 2-1/4" 5/8" .500" 4
95306 .1181 3.000 .1181" 2-1/4" 5/8" .500" 4
95309 .1190 3.023 .1190" 2-1/4" 5/8" .500" 4

continued ?
