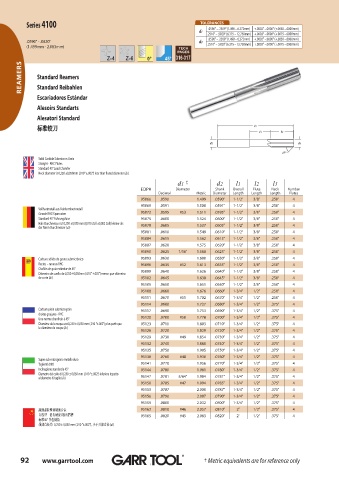

Page 92 - GARR_TOOL(CATALOG_INT)

Series 4100 TOLERANCES
d1 .0590" – .2509" (1.498 – 6.372mm) +.0002" –.0000" (+.0050 –.0000mm)
.2510" – .5020" (6.375 – 12.750mm) +.0003" –.0000" (+.0075 –.0000mm)
.0590" – .2509" (1.498 – 6.372mm) +.0002" –.0000" (+.0050 –.0000mm)
.0590" - .0820" d2
(1.499mm - 2.083mm) .2510" – .5020" (6.375 – 12.750mm) +.0003" –.0000" (+.0075 –.0000mm)
0° 45° 316-317
REAMERS Standard Reamers

Standard Reibahlen
Escariadores Estándar

Alesoirs Standarts
Alesatori Standard
标准铰刀
标准铰刀

Solid Carbide Submicron Grain
Straight - RHC Flutes
Standard 45° Lead Chamfer
Neck diameter is 0,250 ±0,050mm (.010" ±.002") less than fluted diameter (d1)
d1 † d2 l1 l2 l3
EDP# Diameter Shank Overall Flute Neck Number
Decimal Metric Diameter Length Length Length Flutes
95066 .0590 1.499 .0590" 1-1/2" 3/8" .250" 4
95069 .0591 1.500 .0591" 1-1/2" 3/8" .250" 4
Vollhartmetall aus Feinkornhartmetall
Gerade RHC-Spannuten 95072 .0595 #53 1.511 .0595" 1-1/2" 3/8" .250" 4
Standard 45° Führungsfase 95075 .0600 1.524 .0600" 1-1/2" 3/8" .250" 4
Hals-Durchmesser ist 0,250 ±0,050 mm (0,010 Zoll ±0,002 Zoll) kleiner als 95078 .0605 1.537 .0605" 1-1/2" 3/8" .250" 4
der Nenn-Durchmesser (d1)
95081 .0610 1.549 .0610" 1-1/2" 3/8" .250" 4
95084 .0615 1.562 .0615" 1-1/2" 3/8" .250" 4
95087 .0620 1.575 .0620" 1-1/2" 3/8" .250" 4
95090 .0625 1/16" 1.588 .0625" 1-1/2" 3/8" .250" 4
Carburo sólido de grano submicrónico 95093 .0630 1.600 .0630" 1-1/2" 3/8" .250" 4
Rectos – ranuras RHC 95096 .0635 #52 1.613 .0635" 1-1/2" 3/8" .250" 4
Chaflán de guía estándar de 45°
Diámetro de cuello de 0,250 ±0,050mm (.010" ±.002") menor que diámetro 95099 .0640 1.626 .0640" 1-1/2" 3/8" .250" 4
de corte (d1) 95102 .0645 1.638 .0645" 1-1/2" 3/8" .250" 4
95105 .0650 1.651 .0650" 1-1/2" 3/8" .250" 4
95108 .0660 1.676 .0660" 1-3/4" 1/2" .250" 4
95111 .0670 #51 1.702 .0670" 1-3/4" 1/2" .250" 4
95114 .0680 1.727 .0680" 1-3/4" 1/2" .375" 4
Carbure plein submicrograin 95117 .0690 1.753 .0690" 1-3/4" 1/2" .375" 4
droites goujures - RHC
Une norme chanfrein à 45° 95120 .0700 #50 1.778 .0700" 1-3/4" 1/2" .375" 4
Diamètre de la nuque est 0,250 ± 0,050 mm (.010 "±.002") plus petit que 95123 .0710 1.803 .0710" 1-3/4" 1/2" .375" 4
le diamètre de coupe (d1)
95126 .0720 1.829 .0720" 1-3/4" 1/2" .375" 4
95129 .0730 #49 1.854 .0730" 1-3/4" 1/2" .375" 4
95132 .0740 1.880 .0740" 1-3/4" 1/2" .375" 4
95135 .0750 1.905 .0750" 1-3/4" 1/2" .375" 4
95138 .0760 #48 1.930 .0760" 1-3/4" 1/2" .375" 4
Super sub-micrograno metallo duro
Taglienti dritti 95141 .0770 1.956 .0770" 1-3/4" 1/2" .375" 4
Inclinazione standard a 45° 95144 .0780 1.981 .0780" 1-3/4" 1/2" .375" 4
Diametro del collo di 0,250 ± 0,050 mm (.010 "±.002") inferiore rispetto
al diametro di taglio (d1) 95147 .0781 5/64" 1.984 .0781" 1-3/4" 1/2" .375" 4
95150 .0785 #47 1.994 .0785" 1-3/4" 1/2" .375" 4
95153 .0787 2.000 .0787" 1-3/4" 1/2" .375" 4
95156 .0790 2.007 .0790" 1-3/4" 1/2" .375" 4
95159 .0800 2.032 .0800" 1-3/4" 1/2" .375" 4
超细晶粒整体硬质合金 95162 .0810 #46 2.057 .0810" 2" 1/2" .375" 4
直线型—洛氏硬度C级出屑槽 95165 .0820 #45 2.083 .0820" 2" 1/2" .375" 4
标准45° 导程倒角
颈部直径为 0,250 ± 0,050 mm (.010 "±.002"),小于刃部直径 (d1)

92 www.garrtool.com ® ® ® † Metric equivalents are for reference only
