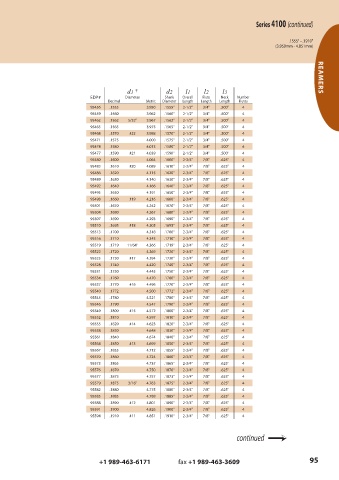

Page 95 - GARR_TOOL(CATALOG_INT)

Series 4100 (continued)

.1555" - .1910"
(3.950mm - 4.851mm)

d1 † d2 l1 l2 l3 REAMERS
EDP# Diameter Shank Overall Flute Neck Number
Decimal Metric Diameter Length Length Length Flutes
95456 .1555 3.950 .1555" 2-1/2" 3/4" .500" 4
95459 .1560 3.962 .1560" 2-1/2" 3/4" .500" 4
95462 .1562 5/32" 3.967 .1562" 2-1/2" 3/4" .500" 4
95465 .1565 3.975 .1565" 2-1/2" 3/4" .500" 4
95468 .1570 #22 3.988 .1570" 2-1/2" 3/4" .500" 4
95471 .1575 4.000 .1575" 2-1/2" 3/4" .500" 4
95474 .1580 4.013 .1580" 2-1/2" 3/4" .500" 4
95477 .1590 #21 4.039 .1590" 2-1/2" 3/4" .500" 4
95480 .1600 4.064 .1600" 2-3/4" 7/8" .625" 4
95483 .1610 #20 4.089 .1610" 2-3/4" 7/8" .625" 4
95486 .1620 4.115 .1620" 2-3/4" 7/8" .625" 4
95489 .1630 4.140 .1630" 2-3/4" 7/8" .625" 4
95492 .1640 4.166 .1640" 2-3/4" 7/8" .625" 4
95495 .1650 4.191 .1650" 2-3/4" 7/8" .625" 4
95498 .1660 #19 4.216 .1660" 2-3/4" 7/8" .625" 4
95501 .1670 4.242 .1670" 2-3/4" 7/8" .625" 4
95504 .1680 4.267 .1680" 2-3/4" 7/8" .625" 4
95507 .1690 4.293 .1690" 2-3/4" 7/8" .625" 4
95510 .1695 #18 4.305 .1695" 2-3/4" 7/8" .625" 4
95513 .1700 4.318 .1700" 2-3/4" 7/8" .625" 4
95516 .1710 4.343 .1710" 2-3/4" 7/8" .625" 4
95519 .1719 11/64" 4.366 .1719" 2-3/4" 7/8" .625" 4
95522 .1720 4.369 .1720" 2-3/4" 7/8" .625" 4
95525 .1730 #17 4.394 .1730" 2-3/4" 7/8" .625" 4
95528 .1740 4.420 .1740" 2-3/4" 7/8" .625" 4
95531 .1750 4.445 .1750" 2-3/4" 7/8" .625" 4
95534 .1760 4.470 .1760" 2-3/4" 7/8" .625" 4
95537 .1770 #16 4.496 .1770" 2-3/4" 7/8" .625" 4
95540 .1772 4.500 .1772" 2-3/4" 7/8" .625" 4
95543 .1780 4.521 .1780" 2-3/4" 7/8" .625" 4
95546 .1790 4.547 .1790" 2-3/4" 7/8" .625" 4
95549 .1800 #15 4.572 .1800" 2-3/4" 7/8" .625" 4
95552 .1810 4.597 .1810" 2-3/4" 7/8" .625" 4
95555 .1820 #14 4.623 .1820" 2-3/4" 7/8" .625" 4
95558 .1830 4.648 .1830" 2-3/4" 7/8" .625" 4
95561 .1840 4.674 .1840" 2-3/4" 7/8" .625" 4
95564 .1850 #13 4.699 .1850" 2-3/4" 7/8" .625" 4
95567 .1855 4.712 .1855" 2-3/4" 7/8" .625" 4
95570 .1860 4.724 .1860" 2-3/4" 7/8" .625" 4
95573 .1865 4.737 .1865" 2-3/4" 7/8" .625" 4
95576 .1870 4.750 .1870" 2-3/4" 7/8" .625" 4
95577 .1873 4.757 .1873" 2-3/4" 7/8" .625" 4
95579 .1875 3/16" 4.763 .1875" 2-3/4" 7/8" .625" 4
95582 .1880 4.775 .1880" 2-3/4" 7/8" .625" 4
95585 .1885 4.788 .1885" 2-3/4" 7/8" .625" 4
95588 .1890 #12 4.801 .1890" 2-3/4" 7/8" .625" 4
95591 .1900 4.826 .1900" 2-3/4" 7/8" .625" 4
95594 .1910 #11 4.851 .1910" 2-3/4" 7/8" .625" 4

continued ?

+1 989-463-6171 fax +1 989-463-3609 95
