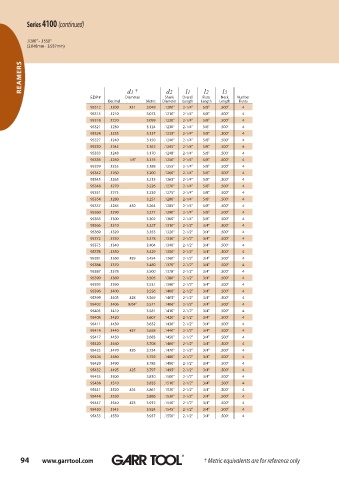

Page 94 - GARR_TOOL(CATALOG_INT)

Series 4100 (continued)

.1200" - .1550"
(3.048mm - 3.937mm)

REAMERS

d1
†
l1
l3
l2
d2
EDP# Diameter Shank Overall Flute Neck Number
Decimal Metric Diameter Length Length Length Flutes
95312 .1200 #31 3.048 .1200" 2-1/4" 5/8" .500" 4
95315 .1210 3.073 .1210" 2-1/4" 5/8" .500" 4
95318 .1220 3.099 .1220" 2-1/4" 5/8" .500" 4
95321 .1230 3.124 .1230" 2-1/4" 5/8" .500" 4
95324 .1235 3.137 .1235" 2-1/4" 5/8" .500" 4
95327 .1240 3.150 .1240" 2-1/4" 5/8" .500" 4
95330 .1245 3.162 .1245" 2-1/4" 5/8" .500" 4
95333 .1248 3.170 .1248" 2-1/4" 5/8" .500" 4
95336 .1250 1/8" 3.175 .1250" 2-1/4" 5/8" .500" 4
95339 .1255 3.188 .1255" 2-1/4" 5/8" .500" 4
95342 .1260 3.200 .1260" 2-1/4" 5/8" .500" 4
95345 .1265 3.213 .1265" 2-1/4" 5/8" .500" 4
95348 .1270 3.226 .1270" 2-1/4" 5/8" .500" 4
95351 .1275 3.239 .1275" 2-1/4" 5/8" .500" 4
95354 .1280 3.251 .1280" 2-1/4" 5/8" .500" 4
95357 .1285 #30 3.264 .1285" 2-1/4" 5/8" .500" 4
95360 .1290 3.277 .1290" 2-1/4" 5/8" .500" 4
95363 .1300 3.302 .1300" 2-1/4" 5/8" .500" 4
95366 .1310 3.327 .1310" 2-1/2" 3/4" .500" 4
95369 .1320 3.353 .1320" 2-1/2" 3/4" .500" 4
95372 .1330 3.378 .1330" 2-1/2" 3/4" .500" 4
95375 .1340 3.404 .1340" 2-1/2" 3/4" .500" 4
95378 .1350 3.429 .1350" 2-1/2" 3/4" .500" 4
95381 .1360 #29 3.454 .1360" 2-1/2" 3/4" .500" 4
95384 .1370 3.480 .1370" 2-1/2" 3/4" .500" 4
95387 .1378 3.500 .1378" 2-1/2" 3/4" .500" 4
95390 .1380 3.505 .1380" 2-1/2" 3/4" .500" 4
95393 .1390 3.531 .1390" 2-1/2" 3/4" .500" 4
95396 .1400 3.556 .1400" 2-1/2" 3/4" .500" 4
95399 .1405 #28 3.569 .1405" 2-1/2" 3/4" .500" 4
95402 .1406 9/64" 3.571 .1406" 2-1/2" 3/4" .500" 4
95405 .1410 3.581 .1410" 2-1/2" 3/4" .500" 4
95408 .1420 3.607 .1420" 2-1/2" 3/4" .500" 4
95411 .1430 3.632 .1430" 2-1/2" 3/4" .500" 4
95414 .1440 #27 3.658 .1440" 2-1/2" 3/4" .500" 4
95417 .1450 3.683 .1450" 2-1/2" 3/4" .500" 4
95420 .1460 3.708 .1460" 2-1/2" 3/4" .500" 4
95423 .1470 #26 3.734 .1470" 2-1/2" 3/4" .500" 4
95426 .1480 3.759 .1480" 2-1/2" 3/4" .500" 4
95429 .1490 3.785 .1490" 2-1/2" 3/4" .500" 4
95432 .1495 #25 3.797 .1495" 2-1/2" 3/4" .500" 4
95435 .1500 3.810 .1500" 2-1/2" 3/4" .500" 4
95438 .1510 3.835 .1510" 2-1/2" 3/4" .500" 4
95441 .1520 #24 3.861 .1520" 2-1/2" 3/4" .500" 4
95444 .1530 3.886 .1530" 2-1/2" 3/4" .500" 4
95447 .1540 #23 3.912 .1540" 2-1/2" 3/4" .500" 4
95450 .1545 3.924 .1545" 2-1/2" 3/4" .500" 4
95453 .1550 3.937 .1550" 2-1/2" 3/4" .500" 4

94 www.garrtool.com ® ® ® † Metric equivalents are for reference only
