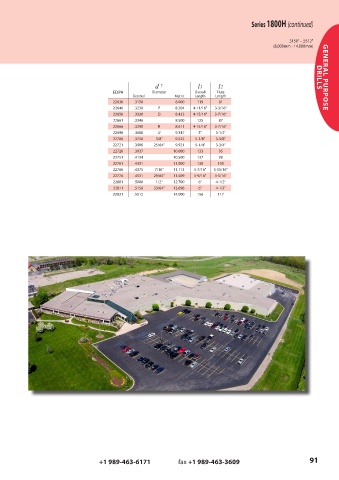

P. 91

Series 1800H (continued)


                                                                                                      .3150" - .5512"
                                                                                                 (8.000mm - 14.000mm)






                                                        d  †           l1     l2                                DRILLS  GENERAL PURPOSE
                                         EDP#         Diameter       Overall  Flute
                                                Decimal       Metric  Length  Length
                                         22636  .3150          8.000  119     81
                                         22646  .3230    P     8.204  4-11/16"  3-3/16"
                                         22656  .3320   Q      8.433  4-15/16"  3-7/16"
                                         22661  .3346          8.500  125     87
                                         22666  .3390    R     8.611  4-15/16"  3-7/16"
                                         22696  .3680   U      9.347   5"    3-1/2"
                                         22706  .3750   3/8"   9.525  5-1/8"  3-5/8"
                                         22721  .3906  25/64"  9.921  5-1/4"  3-3/4"
                                         22726  .3937         10.000  133     95
                                         22751  .4134         10.500  137     98
                                         22761  .4331         11.000  138    100
                                         22766  .4375  7/16"  11.113  5-7/16"  3-15/16"
                                         22776  .4531  29/64"  11.509  5-9/16"  4-5/16"
                                         22801  .5000   1/2"  12.700   6"    4-1/2"
                                         22811  .5156  33/64"  13.096  6"    4-1/2"
                                         22831  .5512         14.000  156    117
























































                                    +1 989-463-6171                    fax +1 989-463-3609                    91
