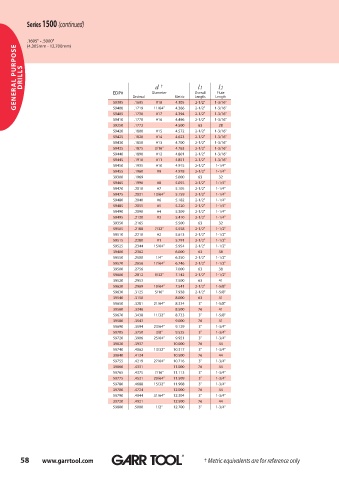

Page 58 - GARR_TOOL(CATALOG_INT)

Series 1500 (continued)

.1695" - .5000"
(4.305mm - 12.700mm)
GENERAL PURPOSE DRILLS EDP# Diameter Overall Flute

d
†
l2
l1
Length
2-1/2"
4.305
59395
.1695
#18
2-1/2"
59400
4.366
.1719
1-3/16"
.1730
1-3/16"
#17
2-1/2"
59405 Decimal 11/64" Metric Length 1-3/16"
4.394
59410 .1770 #16 4.496 2-1/2" 1-3/16"
39250 .1772 4.500 63 28
59420 .1800 #15 4.572 2-1/2" 1-3/16"
59425 .1820 #14 4.623 2-1/2" 1-3/16"
59430 .1850 #13 4.700 2-1/2" 1-3/16"
59435 .1875 3/16" 4.763 2-1/2" 1-3/16"
59440 .1890 #12 4.801 2-1/2" 1-3/16"
59445 .1910 #11 4.851 2-1/2" 1-3/16"
59450 .1935 #10 4.915 2-1/2" 1-1/4"
59455 .1960 #9 4.978 2-1/2" 1-1/4"
39300 .1969 5.000 63 32
59465 .1990 #8 5.055 2-1/2" 1-1/4"
59470 .2010 #7 5.105 2-1/2" 1-1/4"
59475 .2031 13/64" 5.159 2-1/2" 1-1/4"
59480 .2040 #6 5.182 2-1/2" 1-1/4"
59485 .2055 #5 5.220 2-1/2" 1-1/4"
59490 .2090 #4 5.309 2-1/2" 1-1/4"
59495 .2130 #3 5.410 2-1/2" 1-1/4"
39350 .2165 5.500 63 32
59505 .2188 7/32" 5.558 2-1/2" 1-1/2"
59510 .2210 #2 5.613 2-1/2" 1-1/2"
59515 .2280 #1 5.791 2-1/2" 1-1/2"
59525 .2344 15/64" 5.954 2-1/2" 1-1/2"
39400 .2362 6.000 63 38
59550 .2500 1/4" 6.350 2-1/2" 1-1/2"
59570 .2656 17/64" 6.746 2-1/2" 1-1/2"
39500 .2756 7.000 63 38
59600 .2812 9/32" 7.142 2-1/2" 1-1/2"
39520 .2953 7.500 63 41
59620 .2969 19/64" 7.541 2-1/2" 1-5/8"
59630 .3125 5/16" 7.938 2-1/2" 1-5/8"
39540 .3150 8.000 63 41
59650 .3281 21/64" 8.334 3" 1-5/8"
39560 .3346 8.500 76 41
59670 .3438 11/32" 8.733 3" 1-5/8"
39580 .3543 9.000 76 41
59690 .3594 23/64" 9.129 3" 1-3/4"
59705 .3750 3/8" 9.525 3" 1-3/4"
59720 .3906 25/64" 9.921 3" 1-3/4"
39620 .3937 10.000 76 44
59740 .4062 13/32" 10.317 3" 1-3/4"
39640 .4134 10.500 76 44
59755 .4219 27/64" 10.716 3" 1-3/4"
39660 .4331 11.000 76 44
59765 .4375 7/16" 11.113 3" 1-3/4"
59775 .4531 29/64" 11.509 3" 1-3/4"
59780 .4688 15/32" 11.908 3" 1-3/4"
39700 .4724 12.000 76 44
59790 .4844 31/64" 12.304 3" 1-3/4"
39720 .4921 12.500 76 44
59800 .5000 1/2" 12.700 3" 1-3/4"

58 www.garrtool.com ® ® ® † Metric equivalents are for reference only
