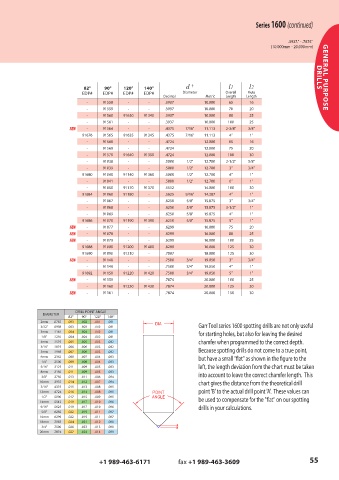

Page 55 - GARR_TOOL(CATALOG_INT)

Series 1600 (continued)

.3937." - .7874"
(10.000mm - 20.000mm)

82° 90° 120° 140° d † l1 l2 DRILLS GENERAL PURPOSE
EDP# EDP# EDP# EDP# Diameter Overall Flute
Decimal Metric Length Length
- 91558 - - .3937 10.000 65 16
- 91559 - - .3937 10.000 70 20
- 91560 91630 91340 .3937 10.000 88 25
- 91561 - - .3937 10.000 100 25
NEW - 91564 - - .4375 7/16" 11.113 2-3/4" 3/4"
91676 91565 91635 91345 .4375 7/16" 11.113 4" 1"
- 91568 - - .4724 12.000 65 16
- 91569 - - .4724 12.000 75 20
- 91570 91640 91350 .4724 12.000 100 30
- 91038 - - .5000 1/2" 12.700 2-1/2" 5/8"
- 91039 - - .5000 1/2" 12.700 3" 3/4"
91680 91040 91140 91360 .5000 1/2" 12.700 4" 1"
- 91041 - - .5000 1/2" 12.700 6" 1"
- 91050 91170 91370 .5512 14.000 100 30
91684 91060 91180 - .5625 9/16" 14.287 4" 1"
- 91067 - - .6250 5/8" 15.875 3" 3/4"
- 91068 - - .6250 5/8" 15.875 3-1/2" 1"
- 91069 - - .6250 5/8" 15.875 4" 1"
91686 91070 91190 91390 .6250 5/8" 15.875 5" 1"
NEW - 91077 - - .6299 16.000 75 20
NEW - 91078 - - .6299 16.000 88 25
NEW - 91079 - - .6299 16.000 100 25
91688 91080 91200 91400 .6299 16.000 125 30
91690 91090 91210 - .7087 18.000 125 30
NEW - 91148 - - .7500 3/4" 19.050 3" 3/4"
- 91149 - - .7500 3/4" 19.050 4" 1"
91692 91150 91220 91420 .7500 3/4" 19.050 5" 1"
NEW - 91159 - - .7874 20.000 100 25
- 91160 91230 91430 .7874 20.000 125 30
NEW - 91161 - - .7874 20.000 150 30

DRILL POINT ANGLE
DIAMETER
82° 90° 120° 140°
2mm .0787 .003 .002 .001 .001
3/32" .0938 .003 .003 .002 .001 Garr Tool series 1600 spotting drills are not only useful
3mm .1181 .004 .004 .002 .001 for starting holes, but also for leaving the desired
1/8" .1250 .004 .004 .002 .001
4mm .1575 .005 .005 .003 .002 chamfer when programmed to the correct depth.
3/16" .1875 .006 .006 .003 .002
5mm .1969 .007 .006 .003 .002 Because spotting drills do not come to a true point,
6mm .2362 .008 .007 .004 .003 but have a small "flat" as shown in the figure to the
1/4" .2500 .009 .008 .004 .003
5/16" .3125 .011 .009 .005 .003 left, the length deviation from the chart must be taken
8mm .3150 .011 .009 .005 .003
3/8" .3750 .013 .011 .006 .004 into account to leave the correct chamfer length. This
10mm .3937 .014 .012 .007 .004 chart gives the distance from the theoretical drill
7/16" .4375 .015 .013 .008 .005
12mm .4724 .016 .014 .008 .005 point 'B' to the actual drill point 'A'. These values can
1/2" .5000 .017 .015 .009 .005
14mm .5512 .019 .017 .010 .006 be used to compensate for the "flat" on our spotting
9/16" .5625 .019 .017 .010 .006 drills in your calculations.
5/8" .6250 .022 .019 .011 .007
16mm .6299 .022 .019 .011 .007
18mm .7087 .024 .021 .012 .008
3/4" .7500 .026 .023 .013 .008
20mm .7874 .027 .024 .014 .009
