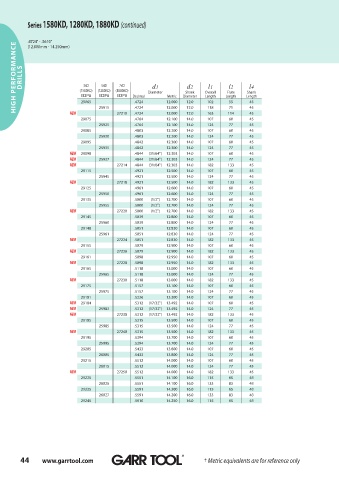

Page 44 - GARR_TOOL(CATALOG_INT)

Series 1580KD, 1280KD, 1880KD (continued)

.4724" - .5610"
HIGH PERFORMANCE DRILLS (1580KD) (1280KD) (1880KD) Decimal Diameter Metric Diameter Overall Length Length
(12.000mm - 14.250mm)

d1
7xD
l2
d2
l1
5xD
3xD
l4
Flute
Shank
Shank
EDP#
EDP#
EDP#
Length
29065
55
12.0
12.000
71
.4724
118
45
NEW
.4724
45
163
12.0
12.000
14.0
45
29075 25915 27210 .4724 12.000 12.0 102 114 45
12.100
.4764
60
107
25925 .4764 12.100 14.0 124 77 45
29085 .4803 12.200 14.0 107 60 45
25930 .4803 12.200 14.0 124 77 45
29095 .4842 12.300 14.0 107 60 45
25935 .4842 12.300 14.0 124 77 45
NEW 29098 .4844 (31/64") 12.303 14.0 107 60 45
NEW 25937 .4844 (31/64") 12.303 14.0 124 77 45
NEW 27214 .4844 (31/64") 12.303 14.0 182 133 45
29115 .4921 12.500 14.0 107 60 45
25945 .4921 12.500 14.0 124 77 45
NEW 27218 .4921 12.500 14.0 182 133 45
29125 .4961 12.600 14.0 107 60 45
25950 .4961 12.600 14.0 124 77 45
29135 .5000 (1/2") 12.700 14.0 107 60 45
25955 .5000 (1/2") 12.700 14.0 124 77 45
NEW 27220 .5000 (1/2") 12.700 14.0 182 133 45
29145 .5039 12.800 14.0 107 60 45
25960 .5039 12.800 14.0 124 77 45
29148 .5051 12.830 14.0 107 60 45
25961 .5051 12.830 14.0 124 77 45
NEW 27224 .5051 12.830 14.0 182 133 45
29155 .5079 12.900 14.0 107 60 45
NEW 27226 .5079 12.900 14.0 182 133 45
29161 .5098 12.950 14.0 107 60 45
NEW 27228 .5098 12.950 14.0 182 133 45
29165 .5118 13.000 14.0 107 60 45
25965 .5118 13.000 14.0 124 77 45
NEW 27230 .5118 13.000 14.0 182 133 45
29175 .5157 13.100 14.0 107 60 45
25975 .5157 13.100 14.0 124 77 45
29181 .5236 13.300 14.0 107 60 45
NEW 29184 .5312 (17/32") 13.492 14.0 107 60 45
NEW 25983 .5312 (17/32") 13.492 14.0 124 77 45
NEW 27238 .5312 (17/32") 13.492 14.0 182 133 45
29185 .5315 13.500 14.0 107 60 45
25985 .5315 13.500 14.0 124 77 45
NEW 27240 .5315 13.500 14.0 182 133 45
29195 .5394 13.700 14.0 107 60 45
25995 .5394 13.700 14.0 124 77 45
29205 .5433 13.800 14.0 107 60 45
26005 .5433 13.800 14.0 124 77 45
29215 .5512 14.000 14.0 107 60 45
26015 .5512 14.000 14.0 124 77 45
NEW 27250 .5512 14.000 14.0 182 133 45
29225 .5551 14.100 16.0 115 65 48
26025 .5551 14.100 16.0 133 83 48
29235 .5591 14.200 16.0 115 65 48
26027 .5591 14.200 16.0 133 83 48
29245 .5610 14.250 16.0 115 65 48
44 www.garrtool.com ® ® ® † Metric equivalents are for reference only
