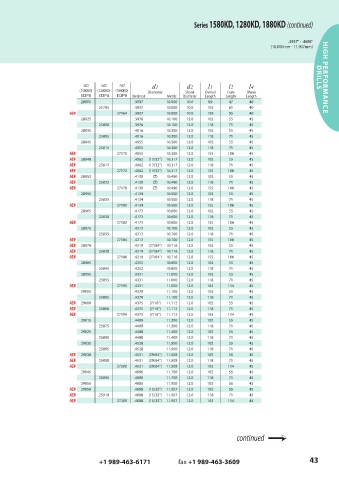

Page 43 - GARR_TOOL(CATALOG_INT)

Series 1580KD, 1280KD, 1880KD (continued)

.3937" - .4688"
(10.000mm - 11.907mm)

3xD 5xD 7xD d1 d2 l1 l2 l4 DRILLS HIGH PERFORMANCE
(1580KD) (1280KD) (1880KD) Diameter Shank Overall Flute Shank
EDP# EDP# EDP# Decimal Metric Diameter Length Length Length
28905 .3937 10.000 10.0 89 47 40
25795 .3937 10.000 10.0 103 61 40
NEW 27164 .3937 10.000 10.0 139 95 40
28925 .3976 10.100 12.0 102 55 45
25800 .3976 10.100 12.0 118 71 45
28935 .4016 10.200 12.0 102 55 45
25805 .4016 10.200 12.0 118 71 45
28945 .4055 10.300 12.0 102 55 45
25815 .4055 10.300 12.0 118 71 45
NEW 27170 .4055 10.300 12.0 155 106 45
NEW 28948 .4062 (13/32") 10.317 12.0 102 55 45
NEW 25817 .4062 (13/32") 10.317 12.0 118 71 45
NEW 27172 .4062 (13/32") 10.317 12.0 155 106 45
NEW 28953 .4130 (Z) 10.490 12.0 102 55 45
NEW 25823 .4130 (Z) 10.490 12.0 118 71 45
NEW 27178 .4130 (Z) 10.490 12.0 155 106 45
28955 .4134 10.500 12.0 102 55 45
25825 .4134 10.500 12.0 118 71 45
NEW 27180 .4134 10.500 12.0 155 106 45
28965 .4173 10.600 12.0 102 55 45
25830 .4173 10.600 12.0 118 71 45
NEW 27182 .4173 10.600 12.0 155 106 45
28975 .4213 10.700 12.0 102 55 45
25835 .4213 10.700 12.0 118 71 45
NEW 27184 .4213 10.700 12.0 155 106 45
NEW 28978 .4219 (27/64") 10.716 12.0 102 55 45
NEW 25838 .4219 (27/64") 10.716 12.0 118 71 45
NEW 27186 .4219 (27/64") 10.716 12.0 155 106 45
28985 .4252 10.800 12.0 102 55 45
25845 .4252 10.800 12.0 118 71 45
28995 .4331 11.000 12.0 102 55 45
25855 .4331 11.000 12.0 118 71 45
NEW 27190 .4331 11.000 12.0 163 114 45
29005 .4370 11.100 12.0 102 55 45
25865 .4370 11.100 12.0 118 71 45
NEW 29008 .4375 (7/16") 11.112 12.0 102 55 45
NEW 25868 .4375 (7/16") 11.112 12.0 118 71 45
NEW 27194 .4375 (7/16") 11.112 12.0 163 114 45
29015 .4409 11.200 12.0 102 55 45
25875 .4409 11.200 12.0 118 71 45
29025 .4488 11.400 12.0 102 55 45
25880 .4488 11.400 12.0 118 71 45
29035 .4528 11.500 12.0 102 55 45
25885 .4528 11.500 12.0 118 71 45
NEW 29038 .4531 (29/64") 11.508 12.0 102 55 45
NEW 25888 .4531 (29/64") 11.508 12.0 118 71 45
NEW 27200 .4531 (29/64") 11.508 12.0 163 114 45
29045 .4606 11.700 12.0 102 55 45
25895 .4606 11.700 12.0 118 71 45
29055 .4685 11.900 12.0 102 55 45
NEW 29058 .4688 (15/32") 11.907 12.0 102 55 45
NEW 25910 .4688 (15/32") 11.907 12.0 118 71 45
NEW 27208 .4688 (15/32") 11.907 12.0 163 114 45

continued ?
