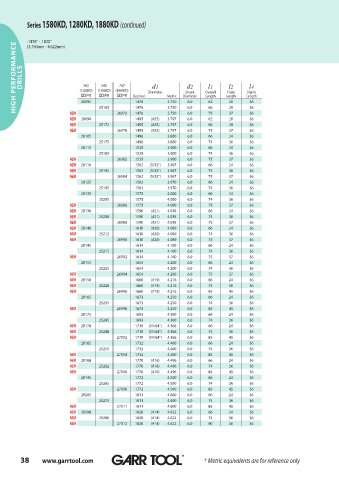

Page 38 - GARR_TOOL(CATALOG_INT)

Series 1580KD, 1280KD, 1880KD (continued)

.1476" - .1820"
HIGH PERFORMANCE DRILLS (1580KD) (1280KD) (1880KD) Decimal Diameter Metric Diameter Overall Length Length
(3.750mm - 4.622mm)

7xD
5xD
3xD
l2
d1
l1
d2
l4
Flute
Shank
Shank
EDP#
EDP#
EDP#
Length
66
36
.1476
3.750
6.0
28
NEW
37
75
3.750
6.0
36
.1476
NEW 28095 25165 26972 .1476 (#25) 3.750 6.0 62 20 36
3.797
28098
6.0
.1495
36
20
62
NEW 25172 .1495 (#25) 3.797 6.0 66 28 36
NEW 26978 .1495 (#25) 3.797 6.0 75 37 36
28105 .1496 3.800 6.0 66 24 36
25175 .1496 3.800 6.0 74 36 36
28115 .1535 3.900 6.0 66 24 36
25185 .1535 3.900 6.0 74 36 36
NEW 26982 .1535 3.900 6.0 75 37 36
NEW 28118 .1562 (5/32") 3.967 6.0 66 24 36
NEW 25192 .1562 (5/32") 3.967 6.0 74 36 36
NEW 26984 .1562 (5/32") 3.967 6.0 75 37 36
28125 .1563 3.970 6.0 66 24 36
25195 .1563 3.970 6.0 74 36 36
28135 .1575 4.000 6.0 66 24 36
25205 .1575 4.000 6.0 74 36 36
NEW 26986 .1575 4.000 6.0 75 37 36
NEW 28138 .1590 (#21) 4.038 6.0 66 24 36
NEW 25208 .1590 (#21) 4.038 6.0 74 36 36
NEW 26988 .1590 (#21) 4.038 6.0 75 37 36
NEW 28140 .1610 (#20) 4.089 6.0 66 24 36
NEW 25212 .1610 (#20) 4.089 6.0 74 36 36
NEW 26990 .1610 (#20) 4.089 6.0 75 37 36
28145 .1614 4.100 6.0 66 24 36
25215 .1614 4.100 6.0 74 36 36
NEW 26992 .1614 4.100 6.0 75 37 36
28155 .1654 4.200 6.0 66 24 36
25225 .1654 4.200 6.0 74 36 36
NEW 26994 .1654 4.200 6.0 75 37 36
NEW 28158 .1660 (#19) 4.216 6.0 66 24 36
NEW 25228 .1660 (#19) 4.216 6.0 74 36 36
NEW 26996 .1660 (#19) 4.216 6.0 85 45 36
28165 .1673 4.250 6.0 66 24 36
25235 .1673 4.250 6.0 74 36 36
NEW 26998 .1673 4.250 6.0 85 45 36
28175 .1693 4.300 6.0 66 24 36
25245 .1693 4.300 6.0 74 36 36
NEW 28178 .1719 (11/64") 4.366 6.0 66 24 36
NEW 25248 .1719 (11/64") 4.366 6.0 74 36 36
NEW 27002 .1719 (11/64") 4.366 6.0 85 45 36
28185 .1732 4.400 6.0 66 24 36
25255 .1732 4.400 6.0 74 36 36
NEW 27004 .1732 4.400 6.0 85 45 36
NEW 28188 .1770 (#16) 4.496 6.0 66 24 36
NEW 25262 .1770 (#16) 4.496 6.0 74 36 36
NEW 27006 .1770 (#16) 4.496 6.0 85 45 36
28195 .1772 4.500 6.0 66 24 36
25265 .1772 4.500 6.0 74 36 36
NEW 27008 .1772 4.500 6.0 85 45 36
28205 .1811 4.600 6.0 66 24 36
25275 .1811 4.600 6.0 74 36 36
NEW 27011 .1811 4.600 6.0 85 45 36
NEW 28208 .1820 (#14) 4.622 6.0 66 24 36
NEW 25280 .1820 (#14) 4.622 6.0 74 36 36
NEW 27012 .1820 (#14) 4.622 6.0 90 50 36
38 www.garrtool.com ® ® ® † Metric equivalents are for reference only
