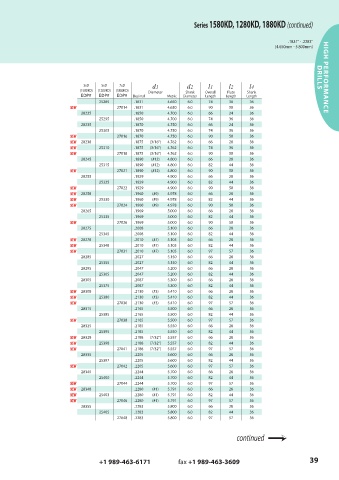

P. 39
Series 1580KD, 1280KD, 1880KD (continued)
.1831" - .2283"
(4.650mm - 5.800mm)
3xD 5xD 7xD d1 d2 l1 l2 l4 DRILLS HIGH PERFORMANCE
(1580KD) (1280KD) (1880KD) Diameter Shank Overall Flute Shank
EDP# EDP# EDP# Decimal Metric Diameter Length Length Length
25285 .1831 4.650 6.0 74 36 36
NEW 27014 .1831 4.650 6.0 90 50 36
28225 .1850 4.700 6.0 66 24 36
25295 .1850 4.700 6.0 74 36 36
28235 .1870 4.750 6.0 66 24 36
25305 .1870 4.750 6.0 74 36 36
NEW 27016 .1870 4.750 6.0 90 50 36
NEW 28238 .1875 (3/16") 4.762 6.0 66 28 36
NEW 25310 .1875 (3/16") 4.762 6.0 74 36 36
NEW 27018 .1875 (3/16") 4.762 6.0 90 50 36
28245 .1890 (#12) 4.800 6.0 66 28 36
25315 .1890 (#12) 4.800 6.0 82 44 36
NEW 27021 .1890 (#12) 4.800 6.0 90 50 36
28255 .1929 4.900 6.0 66 28 36
25325 .1929 4.900 6.0 82 44 36
NEW 27022 .1929 4.900 6.0 90 50 36
NEW 28258 .1960 (#9) 4.978 6.0 66 28 36
NEW 25330 .1960 (#9) 4.978 6.0 82 44 36
NEW 27024 .1960 (#9) 4.978 6.0 90 50 36
28265 .1969 5.000 6.0 66 28 36
25335 .1969 5.000 6.0 82 44 36
NEW 27026 .1969 5.000 6.0 90 50 36
28275 .2008 5.100 6.0 66 28 36
25345 .2008 5.100 6.0 82 44 36
NEW 28278 .2010 (#7) 5.105 6.0 66 28 36
NEW 25348 .2010 (#7) 5.105 6.0 82 44 36
NEW 27031 .2010 (#7) 5.105 6.0 97 57 36
28285 .2027 5.150 6.0 66 28 36
25355 .2027 5.150 6.0 82 44 36
28295 .2047 5.200 6.0 66 28 36
25365 .2047 5.200 6.0 82 44 36
28305 .2087 5.300 6.0 66 28 36
25375 .2087 5.300 6.0 82 44 36
NEW 28308 .2130 (#3) 5.410 6.0 66 28 36
NEW 25380 .2130 (#3) 5.410 6.0 82 44 36
NEW 27036 .2130 (#3) 5.410 6.0 97 57 36
28315 .2165 5.500 6.0 66 28 36
25385 .2165 5.500 6.0 82 44 36
NEW 27038 .2165 5.500 6.0 97 57 36
28325 .2185 5.550 6.0 66 28 36
25395 .2185 5.550 6.0 82 44 36
NEW 28328 .2188 (7/32") 5.557 6.0 66 28 36
NEW 25398 .2188 (7/32") 5.557 6.0 82 44 36
NEW 27041 .2188 (7/32") 5.557 6.0 97 57 36
28335 .2205 5.600 6.0 66 28 36
25397 .2205 5.600 6.0 82 44 36
NEW 27042 .2205 5.600 6.0 97 57 36
28345 .2244 5.700 6.0 66 28 36
25400 .2244 5.700 6.0 82 44 36
NEW 27044 .2244 5.700 6.0 97 57 36
NEW 28348 .2280 (#1) 5.791 6.0 66 28 36
NEW 25403 .2280 (#1) 5.791 6.0 82 44 36
NEW 27046 .2280 (#1) 5.791 6.0 97 57 36
28355 .2283 5.800 6.0 66 28 36
25405 .2283 5.800 6.0 82 44 36
27048 .2283 5.800 6.0 97 57 36
continued ?
